Impact Socket Adaptor with Ball Retainer | ¼” to 1-½” Drive

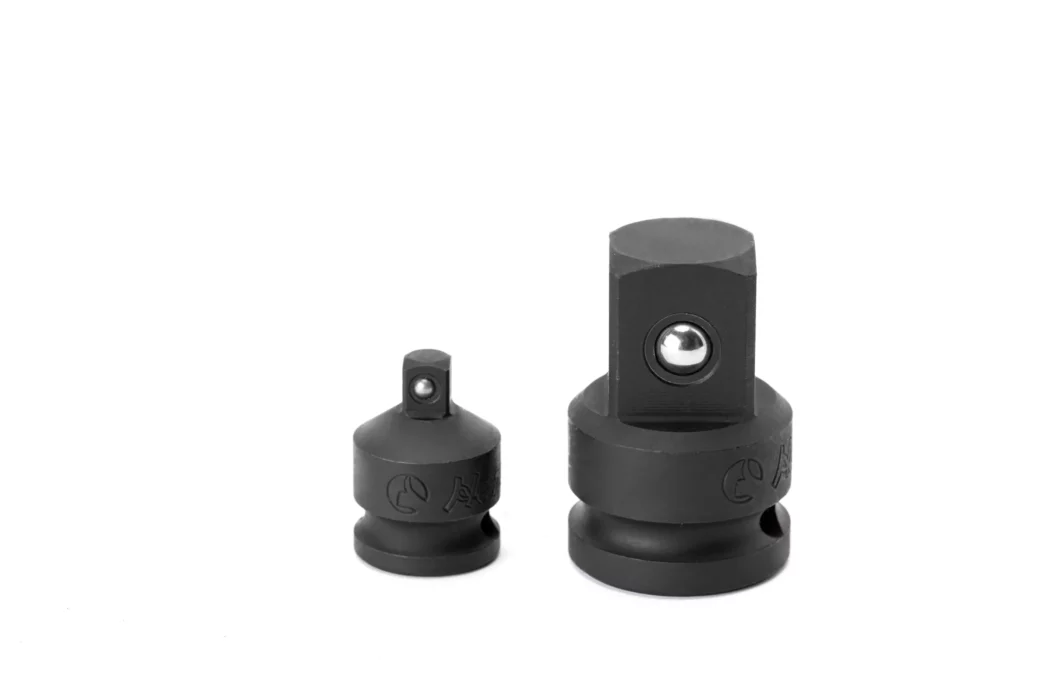

Impact Socket Adaptor with Ball Retainer
- Impact Socket Adaptor with Ball Retainer
- Jeu d’adaptateurs de douille à choc
- Juego de adaptadores de vaso de impacto
- Schlagadapter-Set für Stecknüsse
- Zestaw adapterów nasadek udarowych
- مجموعة محولات مقابس الصدمات
- ชุดอแดปเตอร์ซ็อกเก็ตกระแทก
- Set di adattatori per bussole a percussione
- Jogo de adaptadores de soquete de impacto
- Slagmoer-adapterset
- Darbeli lokma adaptör seti
- インパクトソケットアダプターセット
- 임팩트 소켓 어댑터 세트
- Bộ đầu nối khẩu vặn va đập
- Set adaptor soket dampak
- Σετ προσαρμογέων καρυδιού κρούσης
- Набор ударных адаптеров для головок
- 衝擊套筒轉接頭組
- 冲击套筒转换头套装
- Ütvecsavarozó dugókulcs adapter készlet
- 接頭 （適用於氣動工具）
- DIN 3121- ISO 1174
- The Best Way to Get Started with Surface Roughness Treatment
| ITEM NO. | SIZE | RETAINER | L mm |  g |  pcs |
|---|---|---|---|---|---|
| 82804B | 凹 ¼" x ⅜" 凸 | Ball | 25 | 18 | 10 |
| 83804B | 凹 ⅜" x ½" 凸 | Ball | 35 | 60 | 10 |
| 83805B | 凹 ⅜" x ¼" 凸 | Ball | 28 | 30 | 10 |
| 84804B | 凹 ½" x ⅜" 凸 | Ball | 38 | 70 | 10 |
| 84805B | 凹 ½" x ¾" 凸 | Ball | 45 | 160 | 10 |
| 86804B | 凹 ¾" x ½" 凸 | Ball | 55 | 240 | 5 |
| 86805B | 凹 ¾" x 1" 凸 | Ball | 65 | 320 | 5 |
| 88804B | 凹 1" x ¾" 凸 | Ball | 70 | 540 | 1 |
| 88805B | 凹 1" x 1-½" 凸 | Ball | 80 | 720 | 1 |
| 814804B | 凹 1-½" x 1" 凸 | Ball | 105 | 2260 | 1 |
| 814805B | 凹 1-½" x 2-½" 凸 | Ball | 115 | 2600 | 1 |
Feature
Impact Socket Adaptor series is a mission-critical component for industrial MRO, designed to bridge the gap between different drive sizes in high-torque environments. Featuring a high-tension Ball Retainer for maximum socket security, these adaptors allow technicians to utilize existing socket inventories across varying impact wrench platforms. Manufactured from Premium Chrome Molybdenum (Cr-Mo) Steel, this series is engineered to withstand the extreme percussive forces of pneumatic and cordless impact tools.
Technical Architecture & Mechanical Logic
- Chrome Molybdenum (Cr-Mo) Metallurgy: Unlike standard hand-tool adaptors, these are forged from industrial-grade Cr-Mo steel. This mechanical logic provides superior impact resistance and high-tensile strength, ensuring the adaptor absorbs energy without shattering under the rapid hammering of an impact wrench.

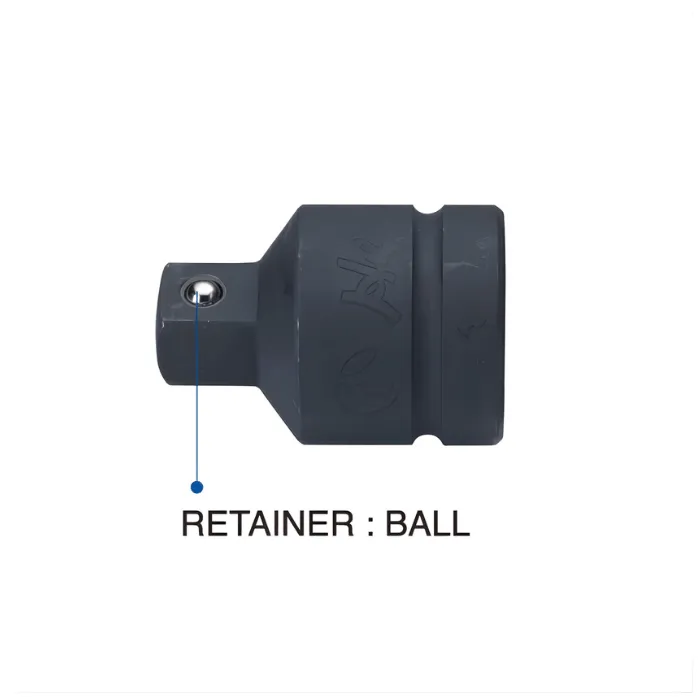

- Spring-Loaded Ball Retainer: Each adaptor is equipped with a precision-engineered ball retainer on the male drive end. This ensures a zero-tolerance lock with the socket, preventing accidental detachment during high-speed rotation—a critical safety feature in overhead or heavy machinery environments.
- Precision Machined Tolerances: Every adaptor is CNC-machined to ensure a perfect fit on both the female input and male output drives. This minimizes “slop” and vibration, which protects the anvils of expensive impact tools from premature wear.
- Industrial Black Phosphate Finish: Treated with a heavy-duty phosphate coating to provide maximum protection against oxidation, chemical corrosion, and the abrasive conditions of industrial workshops.
