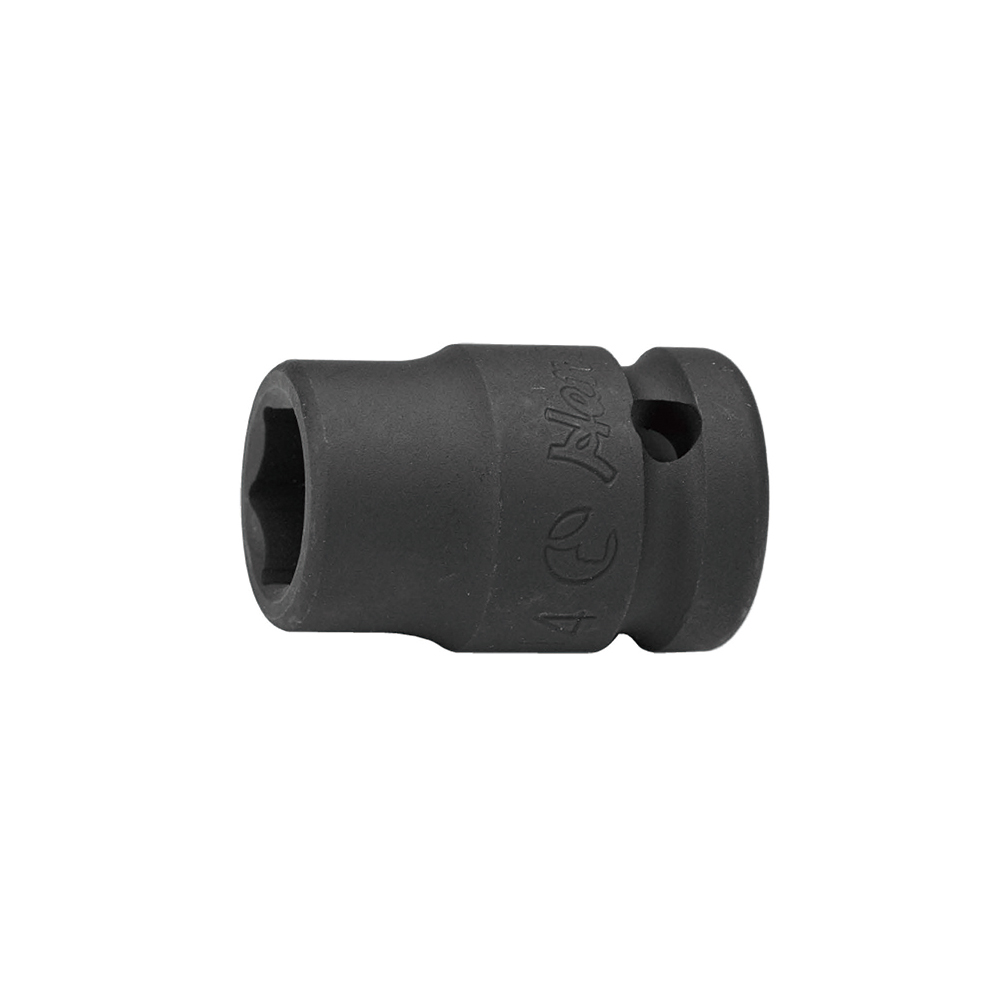

86400M/A ¾” Drive Impact Socket | Cr-Mo Metric & SAE

SKU 86400M/A Categories Impact Socket-¾" DR., Impact Socket, Socket /Impact Socket / Socket Wrench Set Tags ¾"DR, Impact Socket

86400M (mm)	86400A (inch)	D1 mm	D2 mm	L mm	g	pcs
14	⁹ᐟ₁₆	26	38	50	218	5
15		27	38	50	222	5
16	⅝	28	38	50	226	5
17	¹¹ᐟ₁₆	29	38	50	300	5
18		30	38	50	300	5
19	¾	32	38	50	310	5
20	²⁵ᐟ₃₂	33	38	50	310	5
21	¹³ᐟ₁₆	34	38	50	310	5
22	⅞	36	40	50	320	5
23		37	40	50	330	5
24	¹⁵ᐟ₁₆	38	40	50	330	5
25	1"	39	40	54	340	5
26		41	40	54	350	5
27	1-¹ᐟ₁₆	42	41	54	360	5
28	1-⅛	44	43	54	380	5
29		45	44	54	400	5
30	1-³ᐟ₁₆	46	44	54	430	5
31		47	44	54	450	5
32	1-¼	48	44	57	470	5
33	1-⁵ᐟ₁₆	50	44	57	480	5
34		51	44	57	500	5
35	1-⅜	52	44	57	520	5
36		54	44	57	540	5
37	1-⁷ᐟ₁₆	55	44	57	550	5
38	1-½	56	44	57	580	5
39		58	44	57	600	5
40	1-⁹ᐟ₁₆	58	44	58	610	5
41	1-⅝	60	44	58	620	1
42		61	44	58	635	1
43	1-¹¹ᐟ₁₆	62	44	58	650	1
44		64	44	63	700	1
45	1-¾	65	44	63	740	1
46	1-¹³ᐟ₁₆	66	44	63	760	1
47		67	44	63	800	1
48	1-⅞	68	44	65	820	1
50	1-¹⁵ᐟ₁₆	71	44	65	850	1
51	2"	72	44	70	890	1
52	2-¹ᐟ₁₆	73	54	100	900	1
54	2-⅛	76	54	70	950	1
55	2-³ᐟ₁₆	77	54	74	1100	1
56		79	54	74	1250	1
57	2-¼	80	54	74	1200	1
58		81	54	74	1300	1
59	2-⁵ᐟ₁₆	82	60	74	1400	1
60	2-⅜	83	60	74	1500	1
63	2-½	87	60	80	1650	1
65	2-⅝	90	60	85	1800	1
67		91	60	85	1900	1
70	2-¾	96	60	90	2000	1
61, 62, 64, 66, 68mm available, please contact.

86400 series is built for mission-critical heavy industrial service:

Forged Chrome-Molybdenum (Cr-Mo) Steel: The defining professional feature. Unlike standard Cr-V used in hand tools, Cr-Mo provides the superior ductility and fatigue resistance required to absorb the repetitive hammer-strikes of a 3/4″ drive impact gun without shattering.
An-Lock Drive® Geometry: Features the Hans-exclusive profile that redirects rotational force away from the corners and onto the flat walls of the fastener. This “Absolute” grip prevents corner-rounding and ensures 100% torque transmission even on weathered or over-torqued bolts.
Universal 3/4″ Drive Standards: Available in a comprehensive range of Metric (86400M) and SAE (86400A) sizes. Each socket features a precision-machined pin-hole and O-ring groove for secure attachment to impact anvils according to DIN 3121 standards.
Deep Manganese Phosphate Finish: Treated with an industrial-grade black phosphate coating. This provides an “Absolute” barrier against corrosion and ensures high friction for secure handling in oily environments.
Thick-Wall Power Construction: Specifically engineered with reinforced wall thickness to maintain structural stability under the massive torque loads generated by heavy machinery and commercial vehicle MRO.

B2B Procurement & Workshop ROI

The “Master Kit” Foundation: This 3/4 Drive Impact Socket is the primary choice for Fleet Managers and Industrial Facilities because it is the standardized component used in Hans master sets, ensuring consistent quality across all tool stations.
Maximized Tool Lifecycle: The use of forged Cr-Mo ensures that the 86400 series maintains its dimensional accuracy across thousands of high-torque cycles, providing a superior long-term ROI for the workshop.
Safety Compliance: The monoblock design eliminates mechanical failure points, meeting DIN/ANSI safety standards for high-impact industrial tools.
