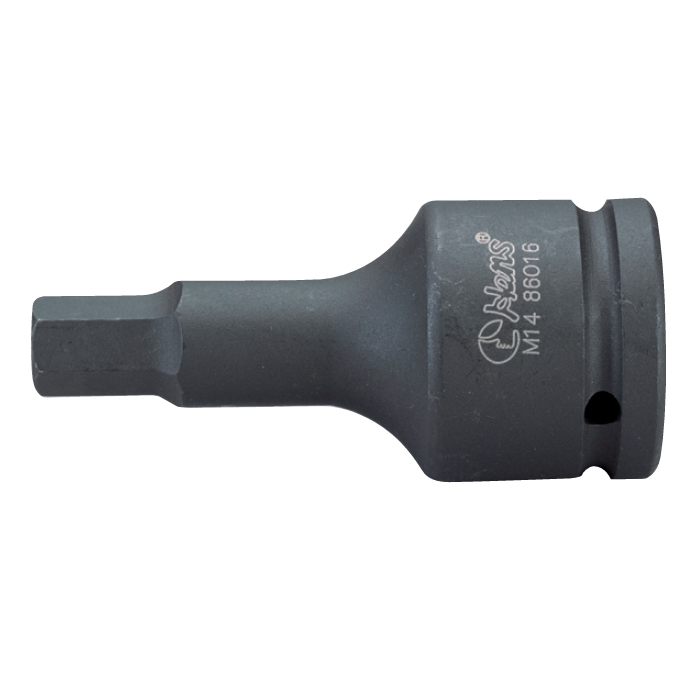

86016M/A-¾”Drive Impact Hexagon Socket
86016M/A- ¾” Drive Impact Hexagon Socket
- Douilles tournevis impact pour vis 6 pans
- Klucz nasadowy sześciokątny udarowy
- Sechskant-Stecknuss-Schraubendreher
- Vasos de destornilladores hexagonal
- محرك مأخذ عرافة تأثير
- ซ็อกเก็ตไขควงหกเหลี่ยม
- 六角沖擊套筒起子
- DIN 3121- ISO 1174
- M- Stands for Metric/ A- Stands for Imperial
| 86016M (mm) | 86016A (inch) | D (mm) | L (mm) |  |  pcs |
|---|---|---|---|---|---|
| 10 | ⅜ | 40 | 90 | 450 | 5 |
| 11 | ⁷ᐟ¹⁶ | 40 | 90 | 450 | 5 |
| 12 | ½ | 40 | 90 | 500 | 5 |
| 13 | 40 | 90 | 500 | 5 | |
| 14 | ⁹ᐟ¹⁶ | 40 | 90 | 500 | 5 |
| 15 | 40 | 90 | 550 | 5 | |
| 16 | ⅝ | 40 | 90 | 580 | 5 |
| 17 | ¹¹ᐟ¹⁶ | 40 | 90 | 580 | 5 |
| 18 | 40 | 90 | 580 | 5 | |
| 19 | ¾ | 40 | 90 | 580 | 5 |
| 21 | ¹³ᐟ¹⁶ | 40 | 90 | 600 | 5 |
| 22 | ⅞ | 40 | 90 | 600 | 5 |
| 24 | ¹⁵ᐟ¹⁶ | 40 | 90 | 630 | 5 |
| 27 | 1" | 44 | 90 | 700 | 5 |
| 30 | 1-³ᐟ¹⁶ | 44 | 90 | 830 | 5 |
| 32 | 1-¼ | 44 | 90 | 860 | 5 |
| 33 | 1-⁵ᐟ¹⁶ | 44 | 90 | 900 | 5 |
| 36 | 1-⁷ᐟ¹⁶ | 44 | 90 | 930 | 5 |
Feature
Technical Architecture & Mechanical Logic
- Impact-Rated Cr-Mo Metallurgy: Unlike standard manual sockets, the 86016M/A is forged from industrial-grade Cr-Mo steel. This material is specifically chosen for its superior ductility and impact resistance, allowing the socket to absorb high-frequency vibrations without cracking.
- Metric (M) & SAE (A) Precision:
- 86016M: Precision-milled for Metric internal hex fasteners (mm).
- 86016A: Precision-milled for SAE fractional inch internal hex fasteners.
- Heavy-Duty 3/4″ Drive Interface: The square drive end is CNC-machined for a zero-tolerance fit on 3/4″ anvils. This ensures maximum kinetic energy transfer from the impact tool to the fastener, reducing “bounce” and energy loss.
- Industrial Safety Pin Hole: Features a through-hole for a Pin Retainer and a deep groove for an O-ring. This mechanical logic ensures the tool remains locked to the drive anvil during high-RPM operation, preventing accidental tool detachment.
- Black Phosphate Industrial Finish: The surface is treated with a black phosphate coating, providing exceptional oil retention and protecting the tool from rust and corrosion in harsh outdoor or chemical environments.
B2B Procurement & Workshop ROI
- Industrial Durability: Designed for high-cycle use in heavy industry, the 86016 series reduces tool replacement costs by offering superior resistance to torsional fatigue.
- Fastener Protection: The precision-milled hex head ensures 100% engagement with the fastener walls, preventing the stripping of expensive, high-tensile internal hex bolts.
