2400M/A-¼” Drive Hand Socket (Manual) 6 Point

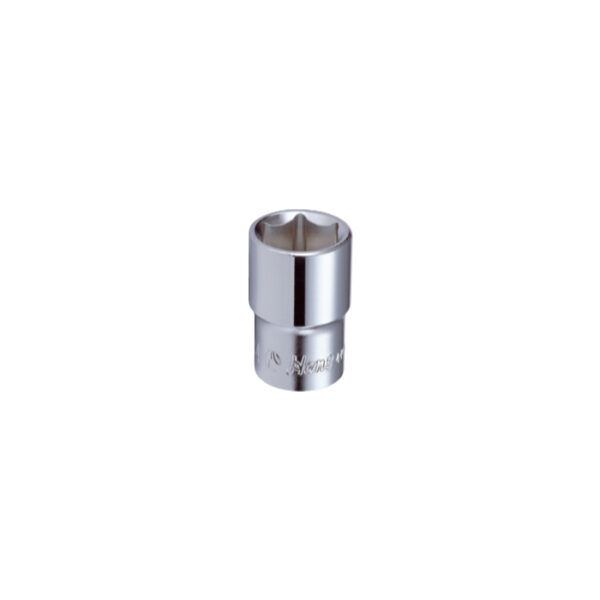

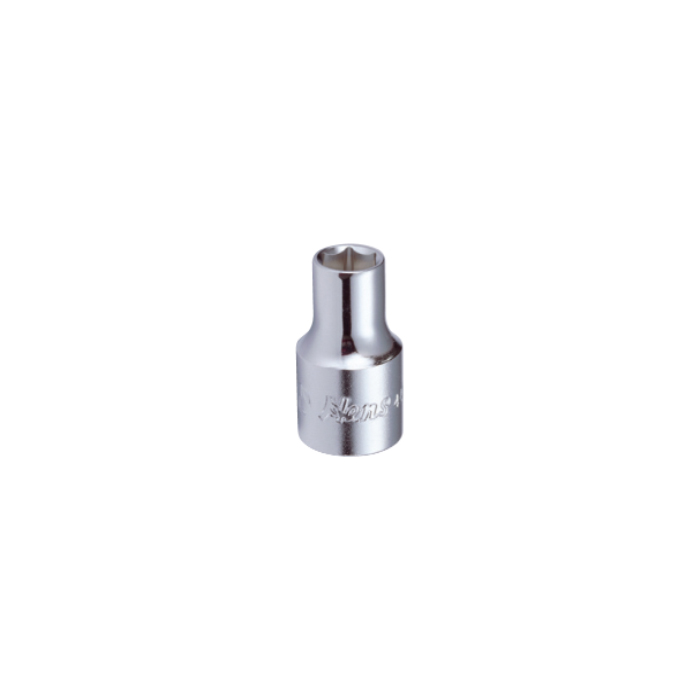

2400M/A: ¼” Drive 6-Point (Hex) Standard Hand Socket
- vasos de surface drive/ douilles 6 pans surface drive/ unidade de superfície douilles 6 panelas
- douilles 6 pfannen oberflächenantrieb/ douilles 6 casseroles surface drive
- بكسات(مَقْابِس) مُسدّسة.
- DIN 3120, ISO 1174/DIN 3124, ISO 2725-1
- ASME B 107.5M, ASME B 107.1
- 手動套筒 公制/ 英制 六角
This Hand Socket 6-point geometry grips the flat sides of the fastener, not the corners, preventing rounding even on high-torque applications. The 6-point design is the “Safety Standard” for heavy industrial maintenance.
Feature
Professional Dual-Finish Architecture
- Upper Section (Mirror Polish): Designed for elite corrosion resistance and rapid cleaning. The smooth mirror finish allows grease and carbon to be wiped away instantly.
- Lower Section (Satin Finish): Features a textured “non-slip” surface. This is an ergonomic safety feature that provides the friction needed for fingers to “hand-spin” the socket during initial thread engagement.
- Metallurgy: Chrome Vanadium (Cr-V)
- Forged from high-grade Cr-V 6140 alloy steel, ensuring the walls remain slim enough for tight access while exceeding DIN and ISO industrial strength requirements.
| 2400M (mm) | 2400A (inch) | D1 (mm) | D2 (mm) | L (mm) |  g |  pcs |
|---|---|---|---|---|---|---|
| 3 | 5.5 | 11.8 | 25 | 10 | 50 | |
| ⅛ | 5.7 | 11.8 | 25 | 9 | 50 | |
| 3.5 | 6.1 | 11.8 | 25 | 10 | 50 | |
| 4 | ⁵ᐟ₃₂ | 6.8 | 11.8 | 25 | 10 | 50 |
| 4.5 | 7.4 | 11.8 | 25 | 10 | 50 | |
| 5 | ³ᐟ₁₆ | 8.0 | 11.8 | 25 | 10 | 50 |
| 5.5 | ⁷ᐟ₃₂ | 8.7 | 11.8 | 25 | 11 | 50 |
| 6 | 9.2 | 11.8 | 25 | 11 | 50 | |
| ¼ | 9.5 | 11.8 | 25 | 11 | 50 | |
| 7 | ⁹ᐟ₃₂ | 10.8 | 11.8 | 25 | 11 | 50 |
| 8 | ⁵ᐟ₁₆ | 11.4 | 12.0 | 25 | 11 | 50 |
| 9 | ¹¹ᐟ₃₂ | 13.0 | 12.2 | 25 | 12 | 50 |
| 10 | ⅜ | 14.5 | 13.0 | 25 | 16 | 50 |
| ¹³ᐟ₃₂ | 14.5 | 13.0 | 25 | 16 | 50 | |
| 11 | ⁷ᐟ₁₆ | 16.0 | 14.2 | 25 | 20 | 50 |
| ¹⁵ᐟ₃₂ | 16.8 | 15.5 | 25 | 21 | 50 | |
| 12 | 17.0 | 15.5 | 25 | 22 | 50 | |
| 13 | ½ | 18.0 | 16.5 | 25 | 24 | 50 |
| 14 | ⁹ᐟ₁₆ | 19.5 | 17.5 | 25 | 29 | 50 |
| 15 | 20.9 | 19.3 | 25 | 29 | 10 |
