84016-2M/A ½ Drive.Impact Hexagon Socket

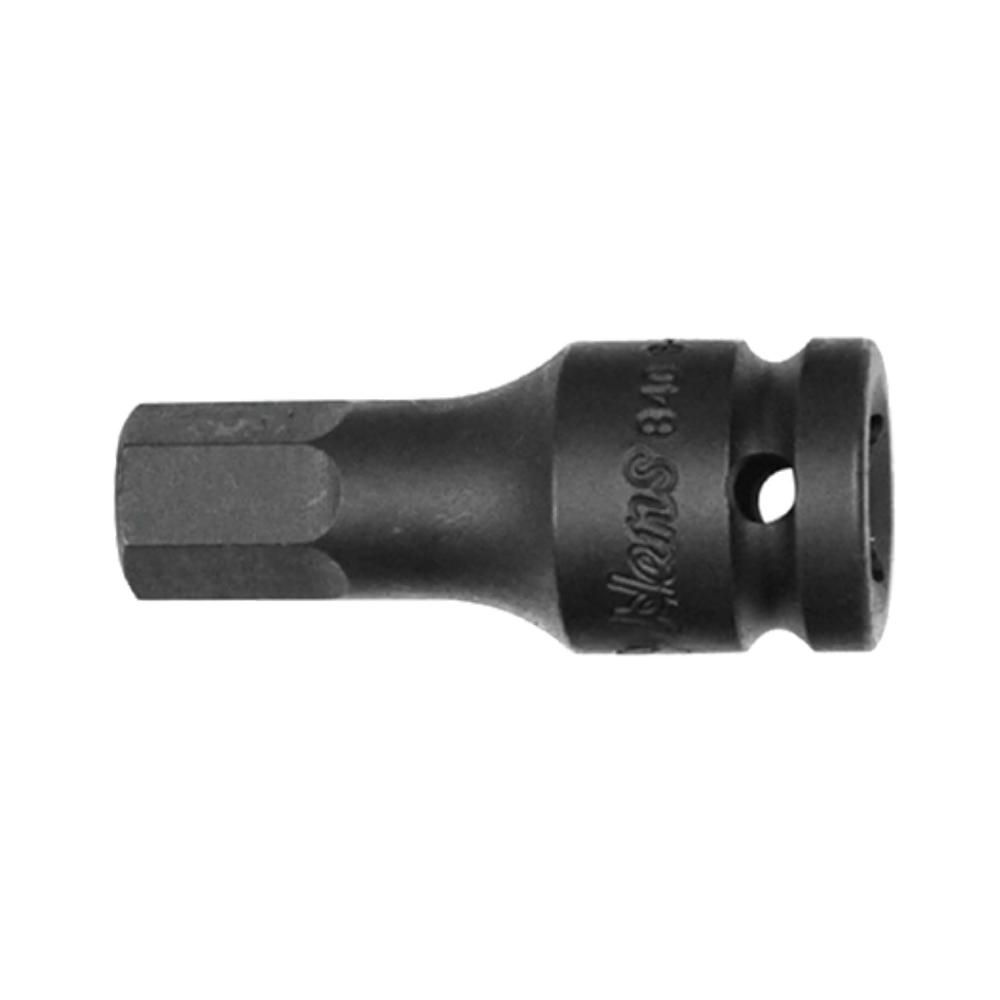

84016-2MA Impact Hexagon Socket | ½” Drive 60mm
- Impact Hexagon Socket
- Douilles tournevis impact pour vis 6 pans
- Klucz nasadowy sześciokątny udarowy
- Sechskant-Stecknuss-Schraubendreher
- Vasos de destornilladores hexagonal
- محرك مأخذ عرافة تأثير
- ซ็อกเก็ตไขควงหกเหลี่ยม
- 六角衝擊氣動套筒
- DIN 3121- ISO 1174
- Understanding Impact Bit Sockets-One Piece vs. Two: The Engineering Behind Impact Bit Sockets
Feature
Notice for Shop Managers: Upgrading your power tool stations to specialized, heat-treated Chrome-Molybdenum impact sockets minimizes annual tool replacement expenses and enhances plant safety by containing tool fracture risks under high load.
What is the practical purpose of the special heat treatment on the 84016-2MA impact hexagon socket? Standard manual hand tool sockets are hardened to be completely rigid, which causes them to instantly crack or shatter when exposed to power tools. The Hans 84016-2MA undergoes a specialized thermal impact treatment that tempers the structural Chrome-Molybdenum steel. This balancing process allows the internal hexagon teeth to absorb high-frequency rotational percussion cycles without fracturing.
Can I utilize this black phosphate impact hexagon socket with standard manual hand ratchets? Yes. While this series is engineered specifically to withstand heavy pneumatic and cordless power loads, its 1/2″ square drive hub is backward-compatible with all standard manual breaker bars, sliding T-handles, and calibrated torque wrenches.
| 84016M mm | 84016A inch | D mm | 84016-2 L=60(mm) | 84016-3 L=78(mm) |  pcs |
|---|---|---|---|---|---|
| 4 | ⁵ᐟ₃₂ | 25 | 74 (g) | 78 (g) | 10 |
| 5 | ³ᐟ₁₆ | 25 | 76 (g) | 81 (g) | 10 |
| ⁷ᐟ₃₂ | 25 | 76 (g) | 83 (g) | 10 | |
| 6 | ¼ | 25 | 79 (g) | 86 (g) | 10 |
| 7 | ⁹ᐟ₃₂ | 25 | 83 (g) | 92 (g) | 10 |
| 8 | ⁵ᐟ₁₆ | 25 | 87 (g) | 100 (g) | 10 |
| 9 | ¹¹ᐟ₃₂ | 25 | 92 (g) | 108 (g) | 10 |
| 10 | ⅜ | 25 | 96 (g) | 114 (g) | 10 |
| 11 | ⁷ᐟ₁₆ | 25 | 100 (g) | 120 (g) | 10 |
| 12 | ½ | 25 | 106 (g) | 132 (g) | 10 |
| 13 | 25 | 112 (g) | 143 (g) | 10 | |
| 14 | ⁹ᐟ₁₆ | 25 | 120 (g) | 155 (g) | 10 |
| 15 | 25 | 128 (g) | 170 (g) | 10 | |
| 16 | ⅝ | 25 | 135 (g) | 180 (g) | 10 |
| 17 | ¹¹ᐟ₁₆ | 25 | 146 (g) | 191 (g) | 10 |
| 18 | 25 | 154 (g) | 202 (g) | 10 | |
| 19 | ¾ | 25 | 162 (g) | 216 (g) | 10 |
| 21 | ¹³ᐟ₁₆ | 25 | 180 (g) | 250 (g) | 10 |
