82096- Angle Die Grinder

SKU 82096 Categories Pneumatic Impact Wrench/ Air Tools, Air Tools Tags Air Tools, Die Grinder

Meuleuse coudée, droite
Szlifierka kątowa i prosta
Die Grinder-abgewinkelt und gerade
Amoladora de angular y recta
جلاخة قوالب بزاوية ومستقيمة
เครื่องบด – มุมเอียงและมุมขวา
氣動帶柄內徑研磨機
82096/ 82096-2
Impact Wrench- Pneumatic Power Instruction

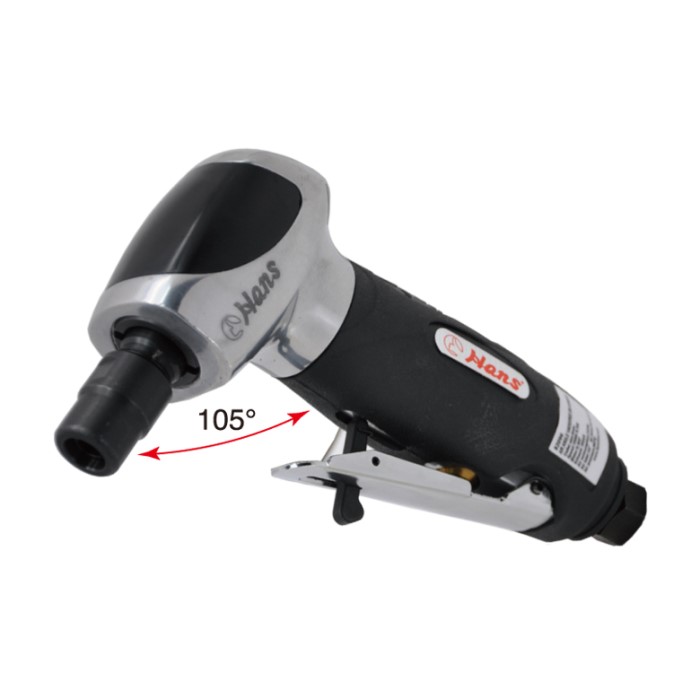

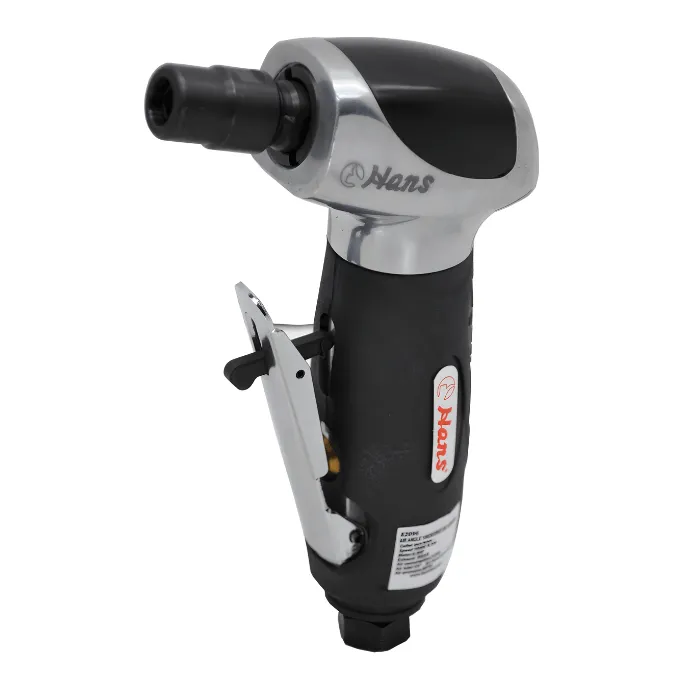

- 82096 Angle Die Grinder is a compact 105° air die grinder with a 6 mm collet, designed for grinding, deburring and surface preparation in tight areas. The angled head gives better access around brackets, panels and engine components compared to a straight die grinder, while the 0.5 HP motor and 15,000 RPM free speed provide fast, controlled material removal.
Model 82096-2 offers the same 105° body with a 1/4″ collect for users who prefer inch shank accessories.

ITEM NO.	COLLECT SIZE	MOTOR H.P.	EXHAUST	FREE SPEED R.P.M.	AVG.DLR CONSUMPTION CFM
82096 (105°)	6mm	0.5	REAR	15000	7
82096-2 (105°)	¼"	0.5	REAR	15000	7
82907 (90°)	¼"	0.3	REAR	19000	10
82907-6 (90°)	6mm	0.3	REAR	19000	10

ITEM NO.	AIR PRESSURE BAR (PSI)	AIR INLET INCH	AIR HOSE ID	OVERALL LENGTH inch/mm	KGS	pcs
82096 (105°)	90 PSI 6.2 BAR	¼	¼	7.2"/ 180	0.55	20
82096-2 (105°)	90 PSI 6.2 BAR	¼	¼	7.2"/ 180	0.55	20
82907 (90°)	90 PSI 6.2 BAR	¼	¼	6.4"/ 160	0.75	20
82907-6 (90°)	90 PSI 6.2 BAR	¼	¼	6.4"/ 160	0.75	20

Feature

Features

105° angle die grinder for improved access in tight or obstructed work areas
0.5 HP motor with 15,000 RPM free speed for efficient grinding and deburring
6 mm collet on 82096 for metric mounted stones and accessories; 82096-2 variant with 1/4″ collet available
Rear exhaust directs air away from the work area
Air consumption: approx. 7 CFM (average) for stable operation with workshop compressors
Operating pressure: 6.2 bar / 90 PSI for optimum performance
Air inlet: 1/4″ and air hose ID: 1/4″ for standard workshop airlines
Overall length: 180 mm (7.2″) and weight 0.55 kg for easy handling and reduced fatigue
Suitable for deburring, porting, light grinding, weld cleaning and surface finishing on metals
