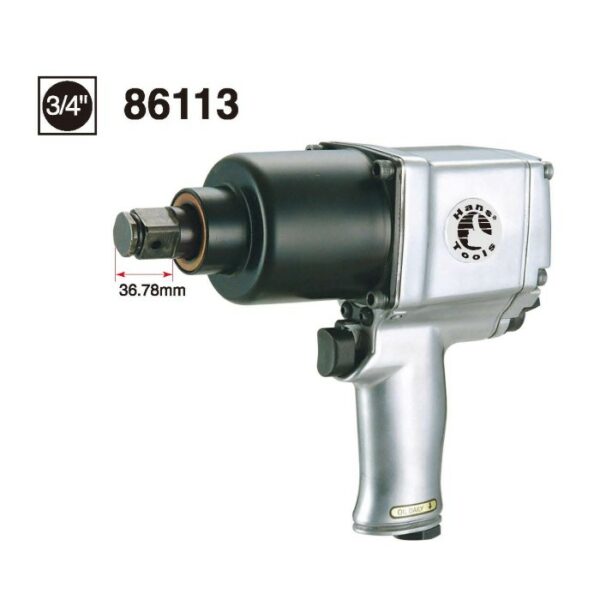

86113 ¾” Drive Air Impact Wrench | Aluminum Housing
86113 Series: ¾” Drive Aluminum Air Impact Wrench (36.78mm Shaft)
- Clé à chocs pneumatique (usage intensif) – Carré ¾” – Capot en aluminium
- Klucz udarowy pneumatyczny (do ciężkich prac) – ¾” – Obudowa aluminiowa
- Druckluft-Schlagschrauber (Heavy Duty) – ¾”-Antrieb – Aluminiumgehäuse
- Llave de impacto neumática (trabajo pesado) – ¾” – Cubierta de aluminio
- مفتاح صدمات هوائي (للخدمة الشاقة) – ¾” – غطاء من الألمنيوم
- 氣動衝擊扳手（重型）– 3/4″ 驅動 – 鋁合金外殼
- บล็อกลมกระแทก (งานหนัก) – ขนาด ¾” – ฝาครอบอลูมิเนียม
- Chave de impacto pneumática (alta resistência) – ¾” – Tampa de alumínio
- Pneumatikus ütvecsavarozó (nehéz kivitel) – ¾” – Alumínium burkolat
- Cheie pneumatică de impact (greu) – ¾” – Carcasă din aluminiu
- Avvitatore pneumatico (uso gravoso) – ¾” – Copertura in alluminio
- Pneumatische slagsleutel (zware uitvoering) – ¾” – Aluminium behuizing
- Пневмогайковерт (усиленный) – ¾” привод – Алюминиевый корпус
- Havalı darbeli anahtar (ağır hizmet) – ¾” – Alüminyum gövde
- 工業級氣動衝擊扳手 超大出力 3/4″方頭
- 雙鎚裝置結構, Twin-Hammer
- Impact Wrench- Pneumatic Power Instruction
| ITEM NO. | DRIVE | ANVIL inch(mm) | MAX TORQUE FT · LB(Nm) @ 5 SEC | MINI TORQUE FT · LB(Nm) | STDBOLT SIZE inch(mm) | FREE SPEED R.P.M. | MECHANISM |
|---|---|---|---|---|---|---|---|
| 86113 |  | 1.45" (36.78) | 1000 (1356) | 200-800 (271-1085) | M26 | 6700 | NEW TWIN HAMMER |
| 86113-6 | | 5.81" (147.7) | 1000 (1356) | 200-800 (271-1085) | M26 | 6700 | NEW TWIN HAMMER |
| EXHAUST | AVG.DLR CONSUMPTION CFM | AIR PRESSURE BAR(PSI) | AIR INLET inch | AIR HOSE ID | OVERALL LENGTH inch(mm) |  KGS |  pcs |
|---|---|---|---|---|---|---|---|
| HANDLE W/MUFFLER | 7 | 6.2(90) | ¼ | ⅜ | 9.2"(234) | 4.75 | 4 |
| HANDLE W/MUFFLER | 7 | 6.2(90) | ¼ | ⅜ | 15.4"(391) | 6.33 | 4 |
Feature
Material Engineering & Structural Truth
- Monoblock Aluminum Cover Armor: The structural backbone of the 86113 is its premium aluminum alloy body casing. Unlike composite plastics that can scratch, gouge, or crack under intense thermal exposure or lateral shear forces, aluminum handles the roughest workshop treatment, effortlessly resisting continuous impact drops, concrete abrasion, and aggressive cleaning chemicals.
- 36.78mm (1.45″) Compact Short Anvil Core: Precision-machined to a 36.78mm short-shaft profile, the 3/4″ square drive anvil minimizes torsional deflection. By positioning the socket closer to the tool’s internal hammer chamber, energy transfers directly to the fastener, reducing power losses and providing great stability in compact industrial clearance bays.
- Next-Gen Symmetrical Twin-Hammer Clutch: The internal impulse motor features dual precision-balanced steel hammers that strike simultaneously from opposing sides of the anvil shaft. This symmetrical layout delivers a clean, steady flow of immense kinetic energy to break loose frozen threads while preventing the sharp rotational tool kickback common in single-hammer tools.
- Handle Exhaust with Built-In Muffler: To prioritize workplace ergonomics, spent air is channeled through the handle and away from the work surface via a built-in acoustic muffler. This system lowers peak operating sound levels while venting oil mist and cold air downwards, away from the technician’s face and hands.
