88111 1″ Drive Air Impact Wrench | High Torque Series

Material Engineering & Structural Truth

• New Twin-Hammer Power Cage: The internal percussion engine features dual extra-large forged steel hammers that swing smoothly inside a heavy-duty rotary cage. By striking both sides of the 1″ drive anvil simultaneously, it maximizes instantaneous breakaway torque curves while canceling out harsh rotational vibration before it transfers to the tool handle.
• Heavy-Wall Industrial Shell Forging: The forward clutch case is cast from a premium structural alloy to easily manage the continuous stress of high-vibration impacts. The back chassis features a robust D-handle control assembly with a broad inside grip area, allowing operators to maintain stable weapon-style control when wrestling massive torque thresholds.

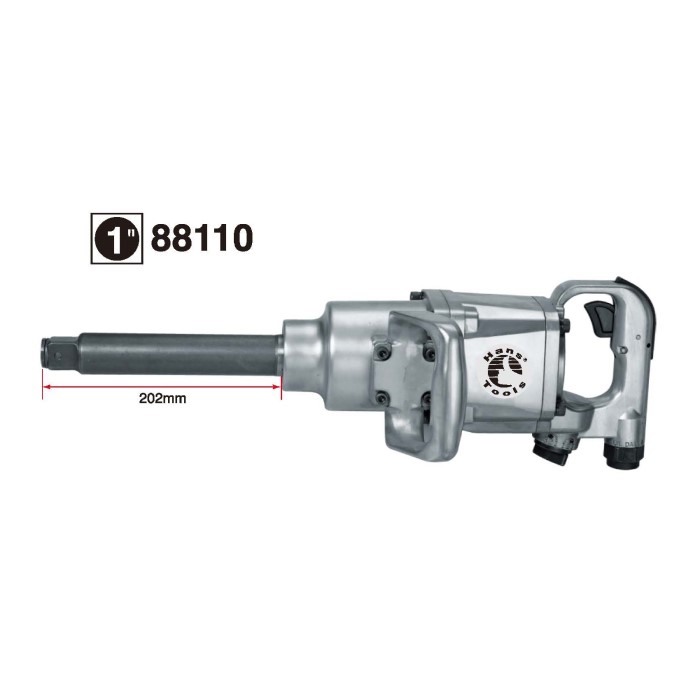

• Anvil Length Specialization Profiles: * Extended Long Anvils (88110, 88111, 88113): Designed specifically for deep-dish commercial truck and tractor wheel assemblies, bypassing outer deep wheel wells to seat directly on buried lug nuts.
  • Compact Short Anvils (-2 Models): Minimizes total tool length to maximize direct power transfer. This profile minimizes twisting elasticity, delivering the rawest kinetic force straight into the socket face for heavy structural frames and plant machinery.

4. Technical FAQ: Rank Math Schema Optimization

Q: What is the primary functional difference between the 88111 and 88111-2 models?

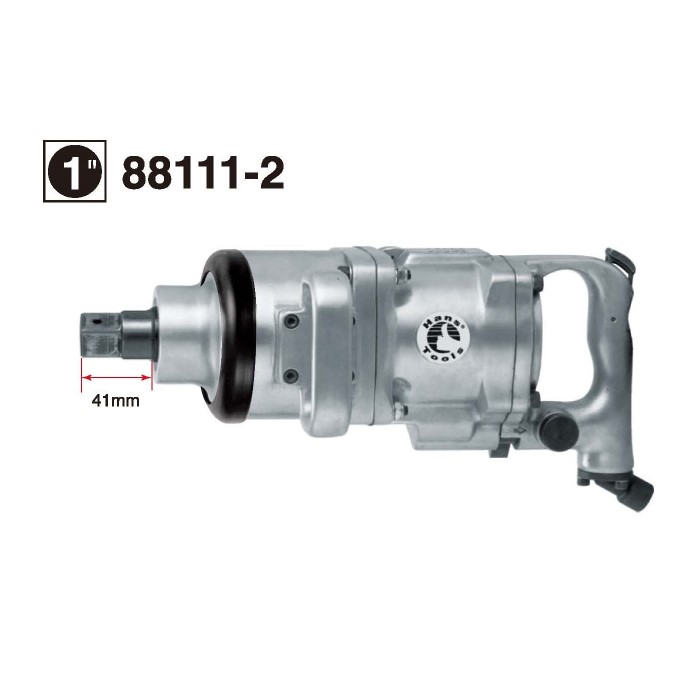

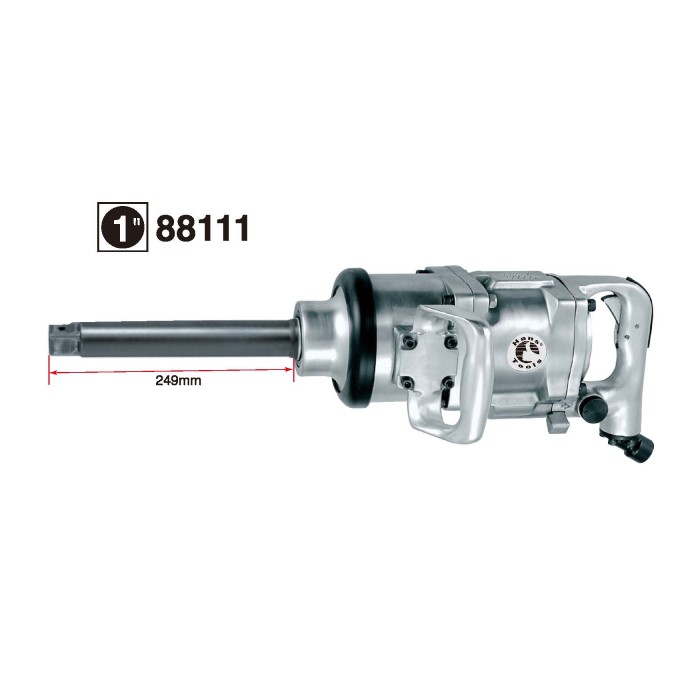

A: Both tools share the exact same internal high-power air motor, delivering a massive 2,500 ft-lbs (3,390 Nm) of maximum impact torque. The difference lies strictly in the anvil profile. The flagship 88111 features an extended 9.8″ (249mm) long anvil designed to reach into commercial deep-dish wheel lips. The 88111-2 features a compact 1.6″ (41mm) short anvil that reduces tool length to 434mm, creating a rigid setup that minimizes energy loss from shaft flexing and fits into tighter spatial clearances.

Q: What infrastructure is mandatory to properly run the high-consumption 88111 air motor?

A: This is critical to prevent tool power loss. Under full load, the 88111 draws an intense average airflow of 14.5 CFM. To maintain a dynamic operating pressure of 90 PSI (6.2 BAR) at the trigger, you must use a high-volume industrial compressor system. Your shop lines must use a minimum 3/4″ inner diameter (I.D.) air hose linked with a heavy-duty 1/2″ air inlet plug. Running this 1″ impact wrench on standard 3/8″ shop hoses or small couplers will starve the air chamber, cutting actual torque output in half.

Q: Can these heavy 1″ tools be safely used with hand chrome sockets via an adapter?

A: Absolutely not. Standard chrome hand sockets are highly rigid and brittle; using them on a tool that outputs up to 2,500 ft-lbs of percussive energy will cause the socket walls to shatter into dangerous flying shrapnel. Always pair this tool series exclusively with true 1″ drive impact-rated Chrome Molybdenum (Cr-Mo) black sockets that feature safety lock pins and rubber retaining rings.

Q: What is the recommended lubrication maintenance routine for the 88111 series?

A: Because these tools process massive volumes of high-velocity air, any inline moisture will quickly corrode internal rotor components. Add 10 to 15 drops of high-grade pneumatic tool oil directly into the 1/2″ air inlet before starting every heavy work shift, or integrate a high-volume Filter-Regulator-Lubricator (FRL) module. Additionally, use a grease gun to pump high-pressure impact lubricant into the front housing grease port to keep the twin hammers running cool.
