4617 Series- Socket Wrench Set- ½” Drive- 17 PCs
4617 Series- Socket Wrench Set- ½” Drive- 17 PCs
- Coffret douilles outillés
- Zestaw kluczy nasadowych
- Steckschlüssel-Satz
- Juego de llaves vaso
- مجموعة وجع المقبس
- ชุดประแจบ๊อกซ์
- 套筒扳手組

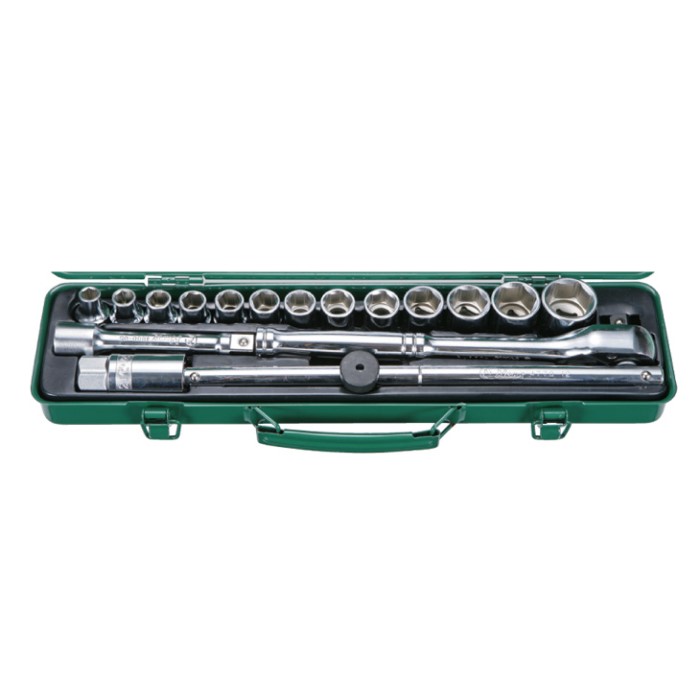

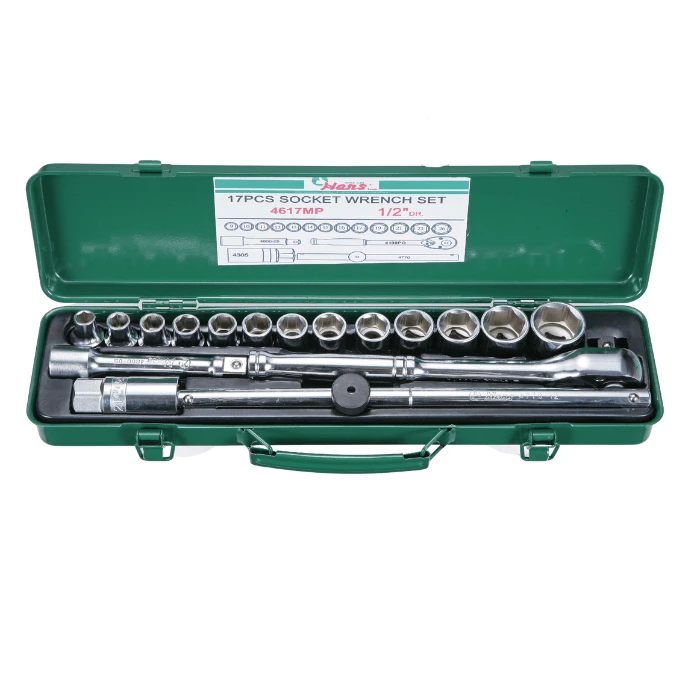

4617 Series is a professional SOCKET WRENCH SET configured with a ½” drive system. This set is engineered for manual torque applications, featuring a specialized selection of 13 Hand Sockets that include the heavy-duty 23mm and 26mm sizes. The set is driven by a 255mm Quick Release Ratchet and a high-leverage 300mm Sliding T-Handle, providing the technician with multiple torque-delivery options.
4617MP/AP/MUP (6 Point) Socket Wrench Set
| 17PCS | 4617MP | 4617AP | 4617MUP |
|---|---|---|---|
| 4400M/A | HAND SOCKET 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 23, 26mm 13PCS | 5/16, 3/8, 7/16, 1/2, 9/16, 19/32, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1" 13PCS | HAND SOCKET 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22, 24, 27mm 13PCS |
| 4100PQ | QUICK RELEASE RATCHET HANDLE 255mm/ 10" |
||
| 4800-5 | EXTENSION BAR 125mm/ 5" |
||
| 4770-12 | SLIDING "T" HANDLE 300mm/ 12" |
||
| 4305M | SPARK PLUG SOCKET 20.8mm/ 13/16" |
||
METAL CASE : 400x95x50mm, 1SET= 3KGS, GW= 19KGS/ 6SETS  = 0.6' |
|||
4617-2MP/AP/MUP (12 Point) ½" Drive 17-Piece Socket Wrench Set
| 17PCS | 4617-2MP | 4617-2AP | 4617-2MUP |
|---|---|---|---|
| 4402M/A | HAND SOCKET 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 23, 26mm 13PCS | 5/16, 3/8, 7/16, 1/2, 9/16, 19/32, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1" 13PCS | HAND SOCKET 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22, 24, 27mm 13PCS |
| 4100PQ | QUICK RELEASE RATCHET HANDLE 255mm/ 10" |
||
| 4800-5 | EXTENSION BAR 125mm/ 5" |
||
| 4770-12 | SLIDING "T" HANDLE 300mm/ 12" |
||
| 4305M | SPARK PLUG SOCKET 20.8mm/ ¹³ᐟ₁₆" |
||
| METAL CASE : 400x95x50mm, 1SET= 3KGS, GW= 19KGS/ 6SETS = 0.6' |
|||
Feature
4617 SOCKET WRENCH SET
- Why is the 26mm socket included? The 4617 SOCKET WRENCH SET is designed for heavy mechanical tasks where 24mm is insufficient. The 26mm size is common in industrial machinery and heavy-vehicle fasteners.
- What is the benefit of the Quick Release button? It ensures the socket stays locked to the ratchet until you intentionally release it. This is critical when pulling the tool away from a tight fastener in oily conditions.
- How does the 300mm Sliding T-Handle add value? At 12 inches long, it provides significantly more leverage than the ratchet. It allows the technician to use the SOCKET WRENCH SET as a breaker bar for the larger 21, 23, and 26mm sockets.
- Is this set Metric or SAE? This master page covers both. You must select the MP (Metric), AP (SAE), or MUP (Universal) version based on your specific industrial requirement.
