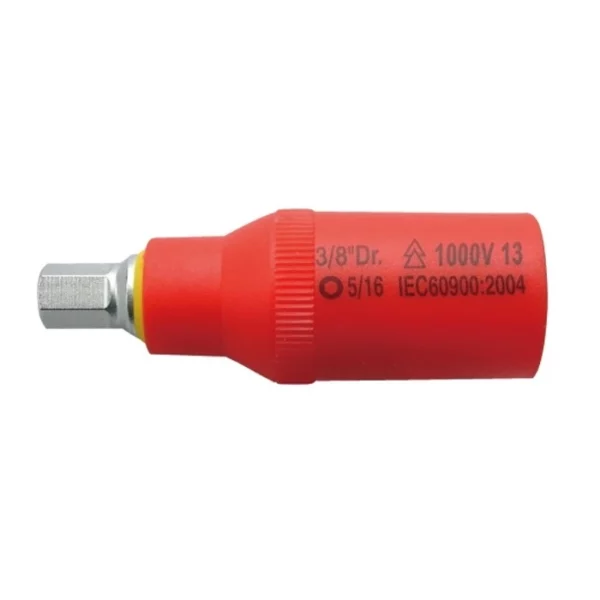

3026MV/AV-3⁄8″ Drive Insulated HEX Bit Socket

Technical Architecture & Mechanical Logic

• 1000V VDE/GS Certification: Each 3026MV-AV socket is individually tested to meet VDE standards, providing a guaranteed dielectric barrier against electrical discharge.
• Dual-Layer Safety Insulation: The socket body is encased in a thick, impact-resistant insulating material. The dual-color logic (typically orange/yellow) serves as a safety indicator; if the outer layer is breached and the inner color becomes visible, the tool must be decommissioned.
• Premium S2 Steel Bit: Unlike standard hex bits, the internal drive is forged from air-hardened S2 tool steel. This material logic provides superior torsional strength and elasticity, preventing the bit from snapping or rounding under the high torque required for electrical busbars.
• 3/8″ Square Drive Interface: The insulated base is designed for a precision fit with 3/8″ drive insulated ratchets and torque wrenches, maintaining a fully insulated path from the handle to the fastener.
• Extended Reach Profile: The bit length is optimized to access recessed internal-hex (Allen) fasteners often found inside deep electrical housings and battery modules.

B2B Procurement & Workshop ROI

• EV/Hybrid Service Ready: As the global automotive industry shifts toward electrification, this 1000V rated hex bit socket is an essential investment for workshops performing battery-level repairs and motor maintenance.
• Accident Prevention: The insulated sleeve prevents “tool-to-chassis” or “phase-to-phase” short circuits if the tool accidentally contacts a live component, protecting both the technician and the expensive electronic systems.
• Industrial Compliance: Meets IEC 60900 international standards, ensuring your facility remains compliant with electrical safety audits and OSHA/HSE workplace regulations.
• Durability in Harsh Environments: The insulation material is resistant to common workshop chemicals, oils, and low-temperature extremes, ensuring the safety barrier remains intact over a long service life.

FAQ Section

• Is this bit socket impact-rated? No. Insulated tools are precision safety instruments designed for manual use only. Using them with power tools will damage the insulation and void the safety rating.
• What sizes are available in the 3026MV-AV range? This series includes standard metric hex sizes (typically 4mm to 10mm). Please specify the required hex size for your specific application.
• How should I maintain the insulation? Always inspect the tool for nicks or cracks before use. Clean with a dry cloth; do not use abrasive cleaners that could thin the protective dielectric layer.
