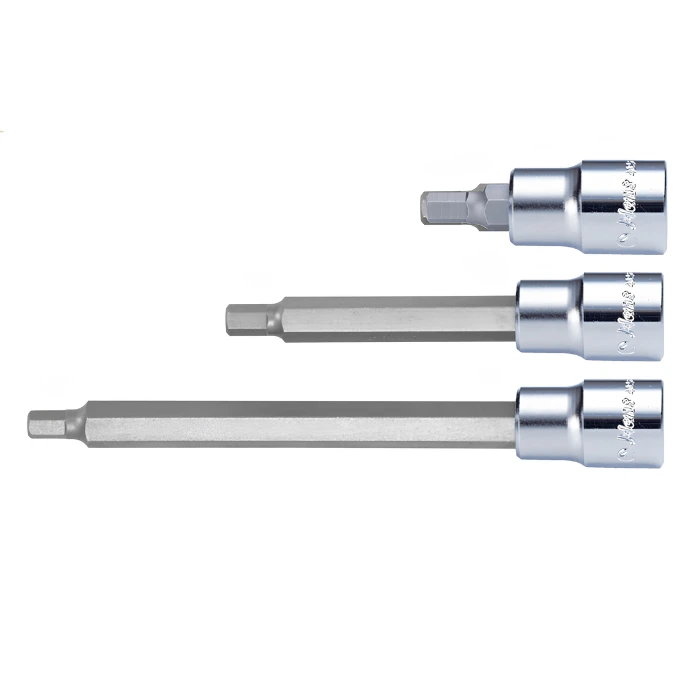

2026-4M/A Extra Long Hex Bit Socket | ¼” Dr. 100mm
2026-4M/A Series: ¼” Drive Extra Long Hex Bit Socket (100mm Deep-Access)
- Douilles tournevis para tornillos
- śrubokręt nasadowy
- Steckschlüssel-Schraubendreher
- Vasos destornilladores
- مفك البراغي
- ไขควงปากแบน
- DIN3120- ISO 1174
- DIN 7422
- Made by S2 Steel + Chromium Vanadium modify
- Understanding Bit Sockets: A Smart Combination of Power and Precision
| 2026M mm | 2026A inch | 2026M L：32mm | 2026-2M L：55mm | 2026-4M L：100mm |  pcs |
|---|---|---|---|---|---|
| 1.3 | 12(g) | 50 | |||
| 1.5 | 12(g) | 50 | |||
| 2.5 | 12(g) | 50 | |||
| 3 | ⅛ | 12(g) | 20(g) | 38(g) | 50 |
| 4 | ⁵ᐟ₃₂ | 12(g) | 20(g) | 38(g) | 50 |
| 5 | ³ᐟ₁₆ | 14(g) | 24(g) | 40(g) | 50 |
| 6 | ¼ | 14(g) | 24(g) | 40(g) | 50 |
| 7 | ⁹ᐟ₃₂ | 16(g) | 28(g) | 50(g) | 50 |
| 8 | ⁵ᐟ₁₆ | 16(g) | 28(g) | 50(g) | 50 |
| 10 | ⅜ | 20(g) | 50(g) | 50(g) | 50 |
Feature
Hex Bit Socket Technicals
Why use S2 steel instead of Chrome Vanadium for the bit? Chrome Vanadium is excellent for the socket body, but it is too “soft” for the high-pressure edges of a hex bit. S2 Alloy Steel is specifically formulated for impact and high-torque driver applications. It stays sharp and resists stripping much longer than standard steel.
When should I choose the 100mm (2026-4) over the 32mm (2026)? Only use the 100mm when physical distance requires it. For fasteners you can reach easily, the 32mm 2026M/A is superior because there is less “torsional twist,” giving you a more direct feel and higher power transfer. The 100mm is a specialist tool for deep-access “obstruction” work.
Are these 1/4″ drive hex sockets safe for use with cordless impact drivers? While the S2 steel is incredibly strong, these are Hand Sockets (Manual). For high-frequency impact drivers, we recommend using Hans Impact-rated series. Using manual sockets on power impact tools can lead to premature wear of the 1/4″ square drive hole.
Can these be used in oily industrial environments? Yes. The Mirror-Polished Chrome finish on the base is designed to resist corrosion from industrial oils and cooling fluids. The S2 bit is usually sandblasted or phosphate-coated to provide a high-friction “bite” even if the fastener is oily.
