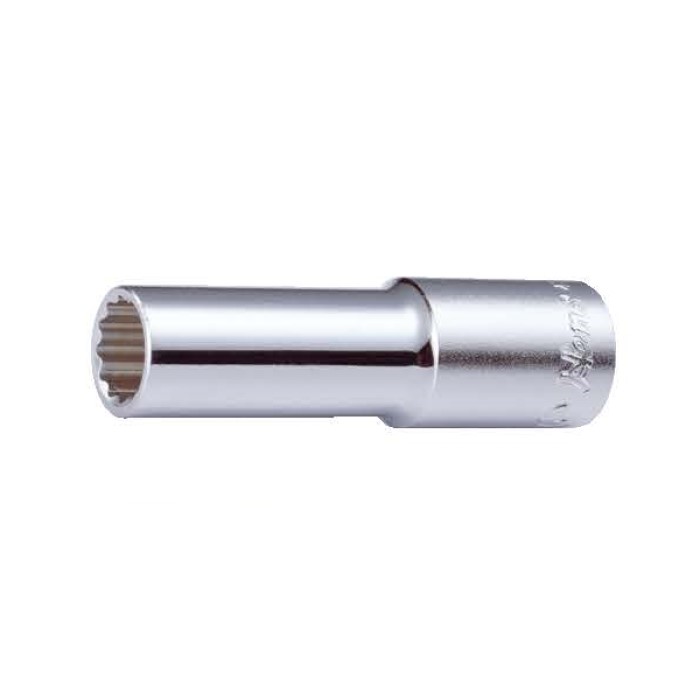

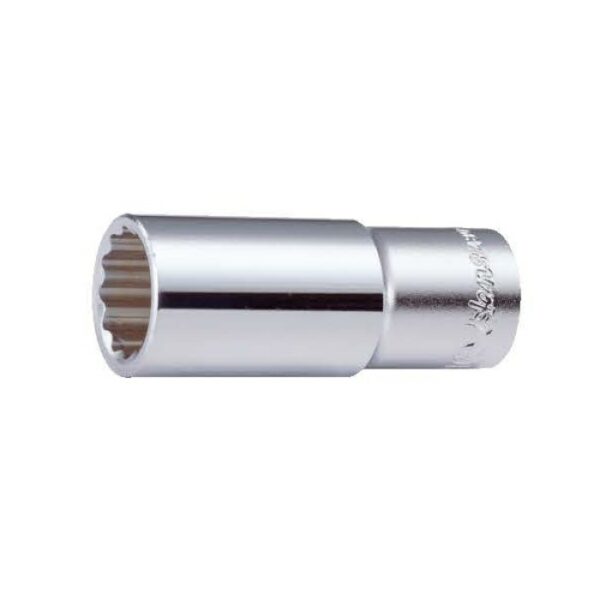

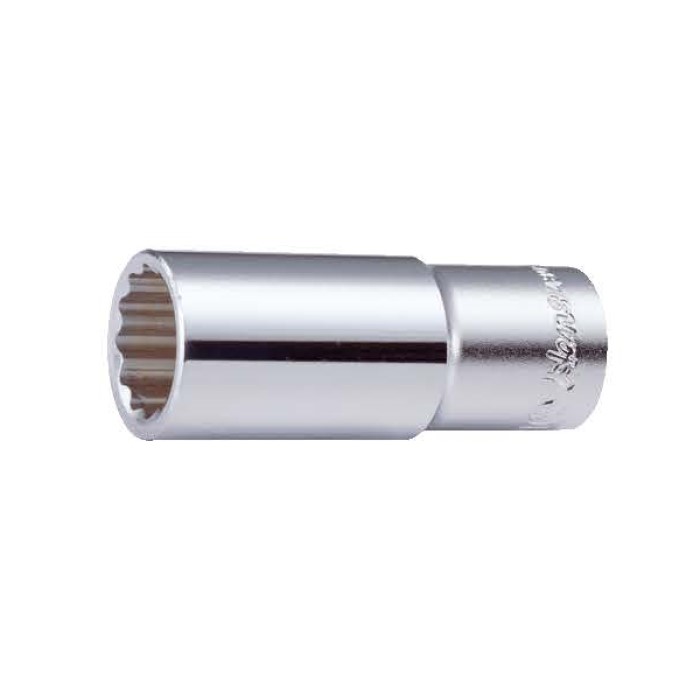

4302M/A ½” Deep Hand Socket Manual 12-Point | Cr-V

SKU 4302M/A Categories Socket /Impact Socket / Socket Wrench Set, Socket, Socket-½"DR. Tags 12Pt, ½"DR, Hand Socket

4302M (mm)	4302A (inch)	D1 (mm)	D2 (mm)	L (mm)	g	pcs
8	⁵ᐟ₁₆	13.2	22	76	90	10
9		13.9	22	76	90	10
	⅜	14.7	22	76	85	10
10		15.2	22	76	85	10
11	⁷ᐟ₁₆	16.3	22	76	85	10
12		17.7	22	76	95	10
13	½	18.8	22	76	100	10
14	⁹ᐟ₁₆	20.4	22	76	100	10
15	¹⁹ᐟ₃₂	21.0	22	76	110	10
16	⅝	24.0	22	76	125	10
17	²¹ᐟ₃₂	24.0	23	76	125	10
	¹¹ᐟ₁₆	24.0	23	76	120	10
18		25.0	24	76	150	10
19	¾	27.0	25.8	76	160	10
20	²⁵ᐟ₃₂	28.0	26	76	160	10
21	¹³ᐟ₁₆	30.0	27	76	190	10
22	⅞	30.0	27	76	190	10
23		32.0	30	76	230	10
24	¹⁵ᐟ₁₆	33.0	30	76	245	10
25		34.0	31	76	245	5
26	1"	36.0	32	76	280	5
27	1-¹ᐟ¹⁶	37.0	34	76	280	5
28		38.0	34	76	280	5
29	1-⅛	40.0	35	76	310	5
30	1-³ᐟ₁₆	40.0	36	76	360	5
32	1-¼	43.0	38	76	360	5

Material Engineering & Structural Truth

High-Mass Deep-Well Engineering: The internal cavity is broached to clear extended, rust-scaled studs, a frequent challenge on automotive exhaust manifolds, suspension U-bolts, and bumper mounts. This deep profile allows the socket teeth to seat fully on the nut for a safe, secure turn.
Thick-Walled Cr-V 6140 Strength: Hammer-forged from premium 6140 Chrome Vanadium steel, this socket provides exceptional structural rigidity. It prevents the socket walls from spreading or warping when subjected to high manual torque from 1/2″ drive breaker bars.
An-Lock Drive® Flat-Surface Contact: The internal 12-point geometry uses a radius-corner offset profile. Instead of pushing against the weak tips of a hex nut, it channels all rotational force directly onto the wide center flats of the hardware, preventing rounding damage and allowing you to safely turn worn fasteners.
