Magnetic Extension Bar | ¼”, 3⁄8″, ½” Drive | Chrome Vanadium
2800MG/ 3800MG/ 4800MG Magnetic Extension Bar- ¼”, 3⁄8″, ½” Drive
-
- Magnetic Extension Bar – ¼”, 3⁄8″, ½” Drive
- Rallonge magnétique – ¼”, 3⁄8″, ½” carré
- Przedłużka magnetyczna – ¼”, 3⁄8″, ½” napęd
- Magnetische Verlängerung – ¼”, 3⁄8″, ½” Antrieb
- Barra de extensión magnética – ¼”, 3⁄8″, ½”
- قضيب تمديد مغناطيسي – ¼ و 3⁄8 و ½ بوصة
- แถบต่อแม่เหล็ก – ¼”, 3⁄8″, ½”
- 磁性接桿 – ¼”, 3⁄8″, ½”
- 磁性接杆 – ¼”, 3⁄8″, ½”
- Barra de Extensão Magnética – ¼”, 3⁄8″, ½”
- Prolunga magnetica – ¼”, 3⁄8″, ½”
- Magnetische verlengstang – ¼”, 3⁄8″, ½”
- Магнитный удлинитель – ¼”, 3⁄8″, ½” привод
- 磁気エクステンションバー – ¼”, 3⁄8″, ½”
- 자석 연장 바 – ¼”, 3⁄8″, ½”
- Thanh nối có nam châm – ¼”, 3⁄8″, ½”
- DIN 3122- ISO 3315/ DIN 3123- ISO 3316
- Understanding Bit Sockets: A Smart Combination of Power and Precision
Magnetic Extension Bar is a professional-grade power and hand-tool accessory engineered for high-efficiency MRO (Maintenance, Repair, and Operations).
| ITEM NO. | 凹 | 凸 | L mm | L inch |
|---|---|---|---|---|
| 2800MG | ¼" | ¼" | 37 | 1-½" |
| 3800MG | ⅜" | ⅜" | 44 | 1-¾" |
| 4800MG | ½" | ½" | 50 | 2" |
Feature
Construction & Features

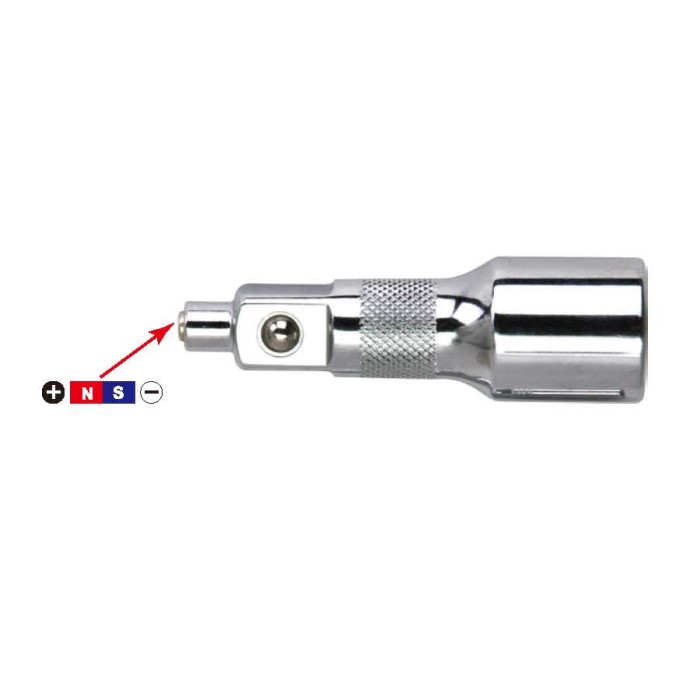

- Magnetic Core: An internal magnet provides pull force to hold the socket and fastener simultaneously, allowing for one-handed operation.
- Chrome Vanadium (Cr-V) Forging: Forged from alloy steel to meet torsional load requirements and resist flexing under manual pressure.
- Knurled Shaft: A diamond-pattern knurled section provides a surface for finger-turning fasteners in oily conditions.
- Ball Detent: Uses a spring-loaded ball in combination with the magnet to lock the socket onto the drive end.
- Chrome Plating: The surface is treated with chrome to protect the underlying steel from rust and chemical exposure.
