84014-2 Impact Star Bit Socket- ½”Drive
84014-2/-3 Impact Star Bit Socket- ½”Drive
- Douilles tournevis impact pour vis étoile
- Nasadka udarowa do wkrętów gwiaździstych
- Schlagschraubereinsatz für Sternschrauben
- Vaso de destornilladores-T
- مقبس مفك تصادم للبراغي النجمية
- ซ็อกเก็ตตัวขับกระแทกสำหรับสกรูสตาร์
- DIN 3121- ISO 1174
- Understanding Impact Bit Sockets-One Piece vs. Two: The Engineering Behind Impact Bit Sockets

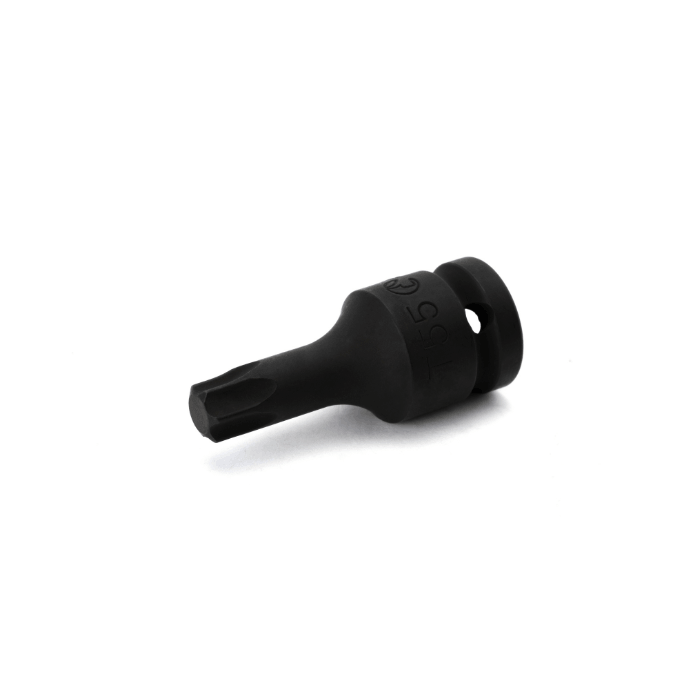

Impact Star Bit Socket (Model 84014-2 Standard Series) is a commercial-tier 1/2″ square drive power-rated manual and automated fastening instrument engineered for high-stress industrial applications. Primarily deployed across heavy automotive MRO, commercial transport assembly hubs, fleet vehicle engine rebuilding stations, and structural plant machinery setups, this 60mm tool interfaces with internal star (Torx profile) hardware.
| 84014 mm | D mm | 84014-2 L=60(mm) | 84014-3 L=78(mm) |  pcs |
|---|---|---|---|---|
| T20 | 25 | 62 (g) | 66 (g) | 10 |
| T25 | 25 | 66 (g) | 70 (g) | 10 |
| T27 | 25 | 70 (g) | 74 (g) | 10 |
| T30 | 25 | 74 (g) | 78 (g) | 10 |
| T40 | 25 | 86 (g) | 92 (g) | 10 |
| T45 | 25 | 90 (g) | 97 (g) | 10 |
| T47 | 25 | 95 (g) | 100 (g) | 10 |
| T50 | 25 | 100 (g) | 110 (g) | 10 |
| T55 | 25 | 115 (g) | 125 (g) | 10 |
| T60 | 25 | 115 (g) | 125 (g) | 10 |
| T70 | 25 | 115 (g) | 125 (g) | 10 |
| T80 | 25 | 120 (g) | 130 (g) | 10 |
| T90 | 25 | 130 (g) | 140 (g) | 10 |
| T100 | 25 | 140 (g) | 150 (g) | 10 |
Feature
- One-Piece Forged Construction: Forging the bit and socket base as a single unit ensures absolute structural integrity. There is no bit-to-socket interface to vibrate loose or shatter under high percussive loads.
- Chrome Molybdenum (Cr-Mo) Metallurgy: Selected for its superior fatigue resistance and elasticity. Cr-Mo allows the Star bit to “flex” under impact, preventing the brittle fracturing that occurs with standard Cr-V tools.
- Precision Star (Torx) Profile: CNC-machined to ensure a zero-tolerance fit. This minimizes “cam-out” and ensures the impact force is distributed evenly across the fastener lobes.
- Industrial Black Phosphate Finish: Provides elite-level corrosion resistance and absorbs tool oil to maintain a permanent moisture barrier in harsh environments.
- Dual Length Availability: Offered in standard 60mm (84014-2) and extended 78mm (84014-3) lengths to clear obstructions or reach recessed fasteners.
