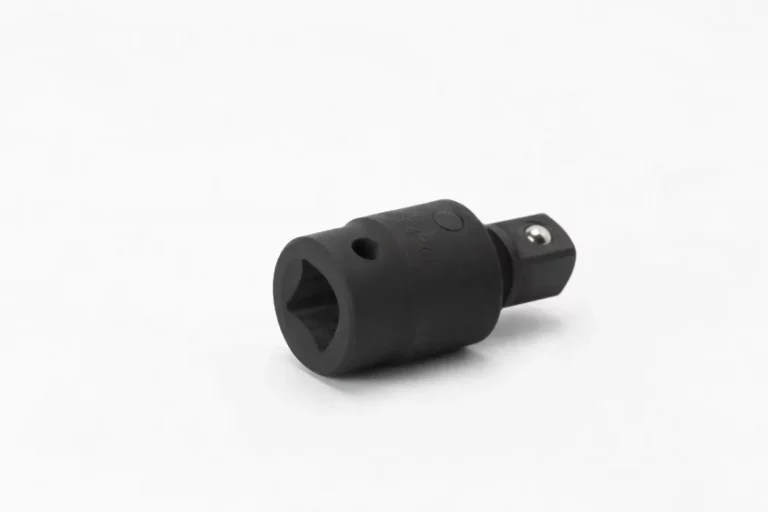

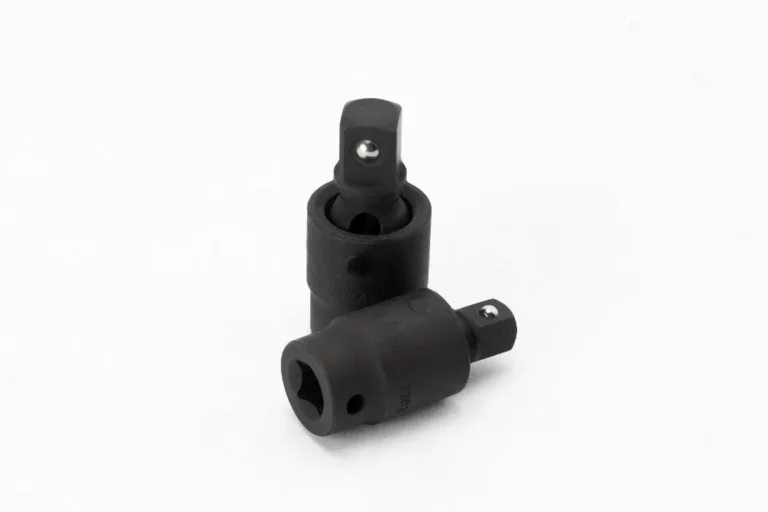

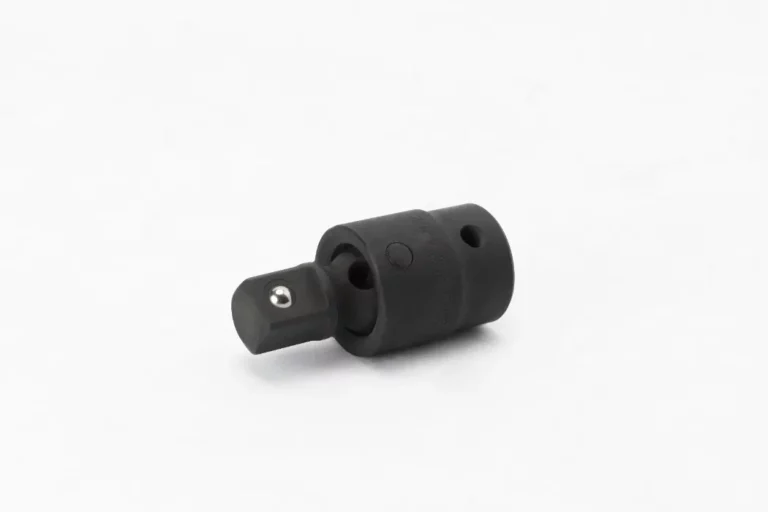

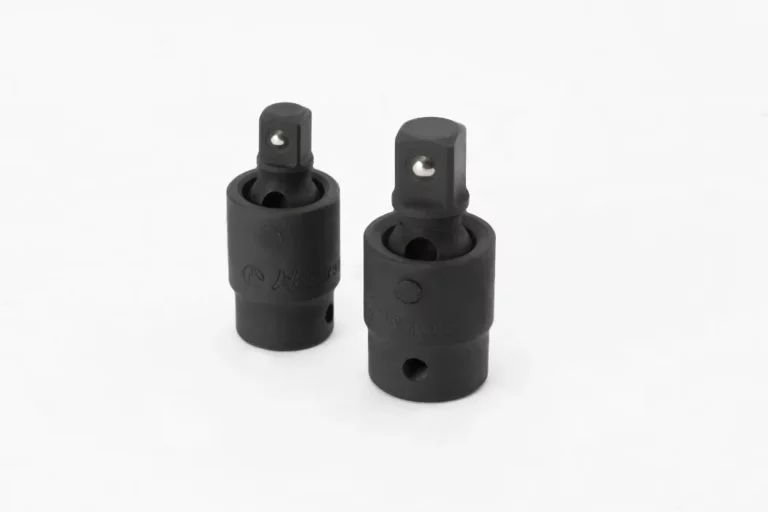

Impact Universal Joint with Ball Retainer
Impact Universal Joint with Ball Retainer- (6 Point)
- Cardan universel impact
- Amortyzator uniwersalny przegub
- Schock-Universalgelenk
- Cardan de impacto
- صدمة مشتركة عالمية
- โช๊คข้อต่อสากล
- 氣動衝擊萬向套筒(六角)
- DIN 3121- ISO1174
- Socket Adaptor vs. Universal Joint: Know the Difference Before You Buy
| ITEM NO. | RETAINER | L mm |  g |  pcs |
|---|---|---|---|---|
| 82202B | Ball | 43 | 40 | 10 |
| 83200B | Ball | 60 | 110 | 10 |
| 83201B | Ball | 60 | 110 | 10 |
| 83202B | Ball | 58 | 90 | 10 |
| 84200B | Ball | 60 | 110 | 10 |
| 84201B | Ball | 60 | 150 | 10 |
| 84202B | Ball | 72 | 180 | 10 |
| 86200B | Ball | 110 | 680 | 1 |
| 86201B | Ball | 95 | 570 | 1 |
| 88200B | Ball | 130 | 1150 | 1 |
| 88201B | Ball | 117 | 1000 | 1 |
※ INTERCHANGEABLE PIN STYLE W./ A SPARE PIN F.O.C
Feature
Industrial Construction & Features
- Chrome Molybdenum (Cr-Mo) Forging: Engineered specifically for the high-torque vibrations of impact tools. Cr-Mo offers superior elasticity compared to Cr-V, preventing the joint from shattering under extreme peak loads.
- Spring-Loaded Ball Retainer: The male drive end features a pressurized ball detent. This provides a “friction-fit” that keeps the socket from falling off in deep engine bays while allowing the technician to pull the socket off by hand without needing a punch or pin-release tool.
- Full 360° Rotation / Wide Swivel: The precision-machined pivot pins allow for a smooth fluid motion, enabling the user to reach fasteners at extreme angles where a straight extension bar cannot operate.
- Phosphate Manganese Finish: Coated with a professional black industrial finish to provide maximum corrosion resistance and easy identification as an “Impact Rated” tool.
- DIN / ISO Compliant: Manufactured to meet or exceed international torque standards (DIN 3121 / ISO 1174) for industrial safety and reliability.
