Air Filter Regulator Lubricator Unit (FRL) | 5μ, Auto Drain, 175 PSI
Air Filter Regulator Lubricator Control Unit (FRL) – 5μ Filter, Auto Drain, 175 PSI
- Filter Regulator Lubricator Controller Unit
- Filtre regulateur lubrificateur
- Filtr Regulator Smarownica Jednostka Sterująca Powietrzem
- Filter Regler Öler Luftsteuereinheit
- Filtro regulador lubricador
- مرشح منظم التشحيم وحدة التحكم في الهواء
- ชุดควบคุมอากาศกรองน้ำมันหล่อลื่น
- 過濾潤滑空氣濾淨系統

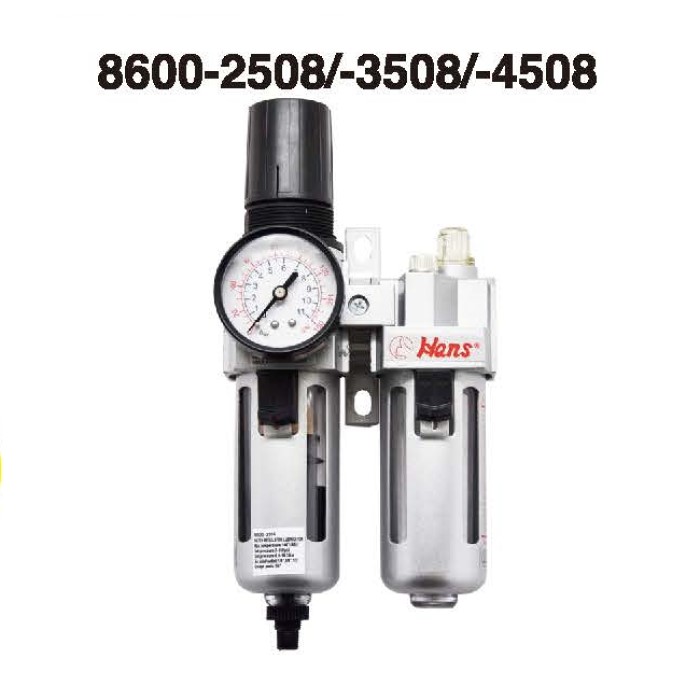

- 8600-2508/ -3508/ -4508

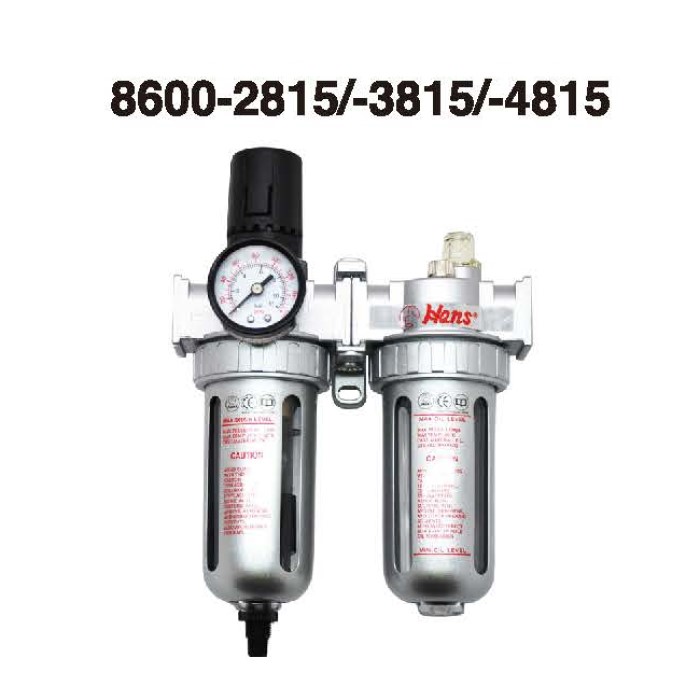

- 8600-2815/ -3815/ -4815
Air Filter Regulator Lubricator (FRL) control unit conditions compressed air for pneumatic tools by filtering contaminants, regulating pressure, and delivering controlled lubrication. This series uses a 5μ filter element, supports 5–60°C, and includes an automatic drain valve for easier maintenance.
Features :
Filter eiement : 5μ
Temperature Range : 5~60℃
Automatic Drain Valve
Solid Steel Bowl Containers Offer Better Protection.
Safe Lockable Buckles For Installation.
Easy Installarion and Disassembly.
| ITEM NO. | PORT SIZE PT/NPT | MAX INPUT PRESSURE | MAX OUTPUT PRESSURE | MAX FLOW L/min | DRAIN CAPACITY L/mm | OIL CAPACITY L/mm |  g |
|---|---|---|---|---|---|---|---|
| 8600-2508 | ¼ | 175 PSI 1.2 MPa | 0~145 PSI 0~1 MPa | 2200 | 55 | 80 | 1516 |
| 8600-3508 | ⅜" | 175 PSI 1.2 MPa | 0~145 PSI 0~1 MPa | 3000 | 55 | 80 | 1466 |
| 8600-4508 | ½" | 175 PSI 1.2 MPa | 0~145 PSI 0~1 MPa | 3100 | 55 | 80 | 1433 |
| 8600-2815 | ¼" | 175 PSI 1.2 MPa | 0~145 PSI 0~1 MPa | 1750 | 80 | 150 | 1008 |
| 8600-3815 | ⅜" | 175 PSI 1.2 MPa | 0~145 PSI 0~1 MPa | 2500 | 80 | 150 | 1025 |
| 8600-4815 | ½" | 175 PSI 1.2 MPa | 0~145 PSI 0~1 MPa | 3000 | 80 | 150 | 1042 |
Feature
Easy installation and disassembly for service teams
- Pneumatic impact wrenches and air tools requiring clean, regulated, lubricated air
- Workshop air lines where water and particle control reduces downtime
- Service bays needing stable pressure output up to 145 PSI (0–1 MPa)
6) Workshop SOP (adds real value + FAQ signals)
H2: How to Use (Workshop SOP)
- Install FRL unit close to the tool line (after compressor + tank)
- Confirm port size (1/4, 3/8, 1/2) and connect PT/NPT fittings
- Set regulated output pressure (0–145 PSI) before operation
- Fill lubricator oil to correct level and adjust drip rate (as required by tool)
- Check auto drain function periodically and inspect steel bowl protection points
7) FAQ (Rank Math likes this)
H2: FAQ
Q1: What filtration level is used?
5μ filter element.
Q2: What pressure rating does it support?
Max input 175 PSI (1.2 MPa) and regulated output up to 145 PSI (0–1 MPa).
Q3: What port sizes are available?
PT/NPT 1/4, 3/8, and 1/2 depending on model.
