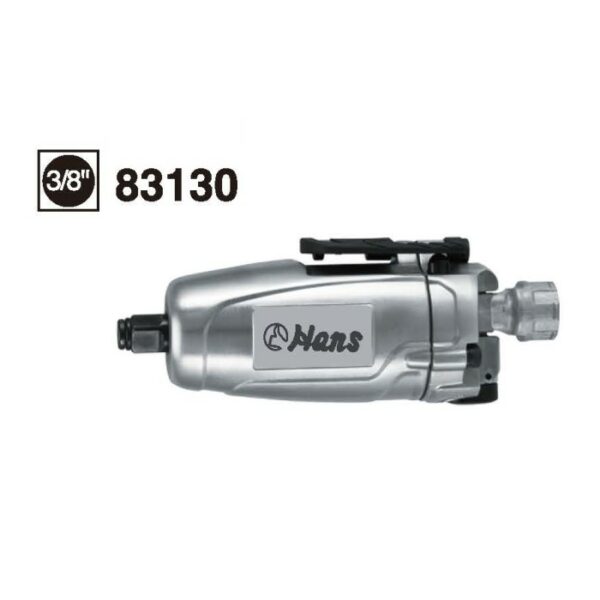

83130-Mini Air Impact Wrench Reversible- Butterfly Type-⅜” Drive
83130: ⅜” Drive Butterfly Mini Air Impact Wrench (Reversible)
- Mini Air Impact Wrench – Reversible – Butterfly Type
- Mini clé à chocs pneumatique – Réversible – Type papillon
- Mini klucz udarowy pneumatyczny – Dwukierunkowy – Typ motylkowy
- Mini-Druckluft-Schlagschrauber – Umschaltbar – Schmetterling-Bedienung
- Llave de impacto neumática mini – Reversible – Tipo mariposa
- مفتاح صدمات هوائي صغير – قابل للعكس – نوع الفراشة
- 迷你氣動衝擊扳手－可換向－蝴蝶型開關
- บล็อกลมกระแทกขนาดเล็ก – หมุนกลับได้ – แบบคันโยกปีกผีเสื้อ
- Mini chave de impacto pneumática – Reversível – Tipo borboleta
- Mini pneumatikus ütvecsavarozó – Visszafordítható – Pillangókaros
- Cheie pneumatică de impact mini – Reversibilă – Tip fluture
- Mini avvitatore pneumatico – Reversibile – Tipo farfalla
- Mini pneumatische slagsleutel – Omkeerbaar – Vlinderschakelaar
- Мини-пневмогайковерт – Реверсивный – С переключателем “бабочка”
- Mini havalı darbeli anahtar – Çift yönlü – Kelebek tipi anahtarlama
- 迷你型氣動扳手
| ITEM NO. | DRIVE | MAX TORQUE FT · LB(Nm) | FREE SPEED R.P.M. | AVG.DLR CONSUMPTION CFM | AIR PRESSURE BAR(PSI) |
|---|---|---|---|---|---|
| 82130 |  | 80(108) | 10000 | 2.0(57) | 6.2(90) |
| 83130 |  | 80(108) | 10000 | 2.0(57) | 6.2(90) |
| AIR INLET inch | AIR HOSE ID | OVERALL LENGTH inch(mm) |  KGS |  pcs |
|---|---|---|---|---|
| ¼ | ⅜ | 5.5(140) | 580 | 20 |
| ¼ | ⅜ | 5.5(140) | 580 | 20 |
For installing/removing the front cover of timing chain on VW PoLo (type 6R, 6C) with 1.2PTS1 engine, for example :
- Oil pan screw
- Valve cover screw
- Wheel arch and engine casings
Feature
- Rocker-Style Butterfly Throttle: Eliminates the need for a separate reverse switch. The dual-sided paddle provides instant directional control, significantly speeding up “teardown” and “build” cycles.
- 3/8″ Square Drive Anvil: Optimized for use with Hans 83-series impact sockets, providing a sturdier connection for fasteners that require more torque than 1/4″ drive tools can provide.
- 360° Swivel Air Inlet: Engineered to eliminate “hose-bind.” The swivel allows the air line to move independently, ensuring the tool remains balanced and maneuverable in tight engine bays.
- Built-in Power Regulator: Features an adjustable dial to control the air flow, allowing the technician to fine-tune torque output for sensitive fasteners.
- Palm-Grip Ergonomics: The low-profile, flat-top design allows the tool to be gripped like a block, enabling the user to apply direct axial pressure over the fastener.
