846810 Torque Limiting Impact Extension Bar Set (10 Pcs)-½” Drive
846810 Series: 10-Piece Color-Coded Torque Limiting Impact Extension Bar Set | ½” Drive
- 846810 Torque Limiting Impact Extension Bar – 1/2″ Drive
- 846810 1/2″DR 固定扭力氣動沖擊接桿
- 846810 Barra prolongadora de impacto con límite de par – encastre 1/2″
- 846810 Rallonge d’impact à couple limité – entraînement 1/2″
- 846810 Drehmomentbegrenzende Schlagschrauber-Verlängerung – 1/2″ Antrieb
- 846810 Przedłużka udarowa z ogranicznikiem momentu – napęd 1/2″
- 846810 Prolongador de impacto com limitador de torque – encaixe 1/2″
- 846810 وصلة تأثير مع محدد عزم – بقياس 1/2″
- 846810 ด้ามต่อบล็อกกระแทกแบบจำกัดแรงบิด – ขนาดขับ 1/2″
- 846810 Prelungitor de impact cu limitator de cuplu – pătrat 1/2″
- 846810 Ütvecsavarozó hosszabbító nyomatékhatárolóval – 1/2″ hajtás
- DIN 3121- ISO 1174
- 84800-Torque Limiting Impact Extension Bar-1/2″Drive
- Plastic Blow Mold Case
- Wheel Service Tools

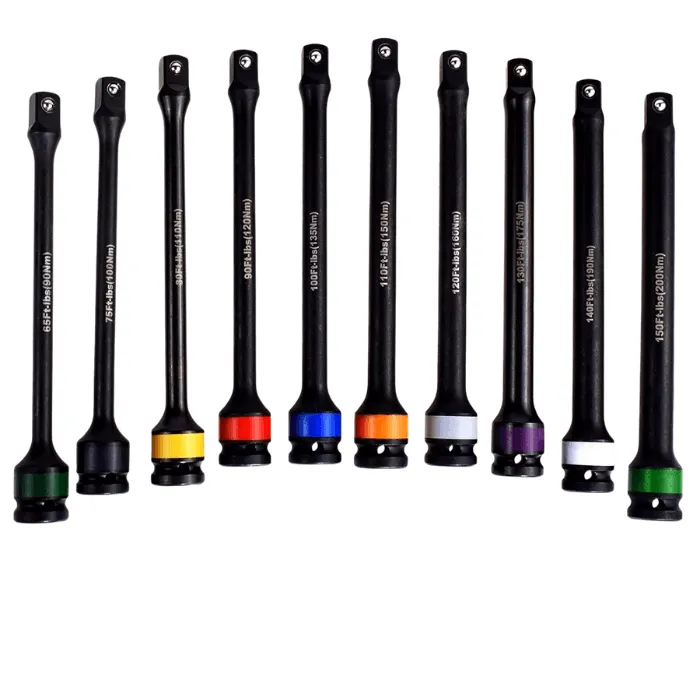

Torque Limiting Impact Extension Bar Set (Model 846810) is a critical 10-piece safety collection designed for high-speed automotive and industrial tire service. Forged by Hans Tools from premium Chrome Molybdenum (Cr-Mo) steel, these bars utilize specialized torsion-flex technology to limit the torque delivered by an impact wrench to a specific preset value. This set is the industry standard for preventing the over-stretching of wheel studs and the distortion of brake components caused by excessive pneumatic or electric impact force
| 10 PCS | 846810 |
|---|---|
| 84800 | 90, 100, 110, 120, 135, 150, 160, 175, 190, 200 |
| BLOW CASE | GW=24KGS/8 SETS  =0.9' |
Feature
84800 Series – Torque Options
- 84800-90 : 200 mm, 90 N·m / 65 ft-lbs – ring color Green
- 84800-100: 200 mm, 100 N·m / 75 ft-lbs – Black
- 84800-110: 200 mm, 110 N·m / 80 ft-lbs – Yellow
- 84800-120: 200 mm, 120 N·m / 90 ft-lbs – Red
- 84800-135: 200 mm, 135 N·m / 100 ft-lbs – Blue
- 84800-150: 200 mm, 150 N·m / 110 ft-lbs – Orange
- 84800-160: 200 mm, 160 N·m / 120 ft-lbs – Gray
- 84800-175: 200 mm, 175 N·m / 130 ft-lbs – Purple
- 84800-190: 200 mm, 190 N·m / 140 ft-lbs – White
- 84800-200: 200 mm, 200 N·m / 150 ft-lbs – Light Green
