66193-16 7-Piece Torque Multiplier Set | 1:16 Ratio Cr-Mo
66193-16 Series: 7-Piece 1:16 Gear Ratio Torque Multiplier Set (Truck Wheel Specialist)
- Coffret multiplicateur de couple (7 pièces) pour écrous de roues poids lourd
- Juego de multiplicador de par (7 piezas) para tuercas de ruedas de camión
- Drehmoment-Multiplikator Set (7-teilig) für Lkw-Radmuttern
- Zestaw mnożnika momentu obrotowego (7 szt.) do nakrętek kół ciężarówek
- مجموعة أدوات مضاعف عزم الدوران (7 قطع) لصواميل عجلات الشاحنات
- ชุดเครื่องมือทอร์คมัลติพลายเออร์ (7 ชิ้น) สำหรับน็อตล้อรถบรรทุก
- Set moltiplicatore di coppia (7 pezzi) per dadi ruota camion
- Kit multiplicador de torque (7 peças) para porcas de roda de caminhão
- Koppelvermeerderaar set (7-delig) voor vrachtwielmoeren
- Tork çarpanı takım seti (7 parça) – kamyon tekerlek somunları için
- トルクマルチプライヤーツールセット（7個）– トラックホイールナット用
- 토크 멀티플라이어 공구 세트 (7개입) – 트럭 휠 너트용
- Bộ dụng cụ tăng mô-men xoắn (7 món) cho đai ốc bánh xe tải
- Set alat pengganda torsi (7 pcs) untuk mur roda truk
- Σετ ενισχυτή ροπής (7 τεμ.) για παξιμάδια τροχών φορτηγών
- Набор усилителя крутящего момента (7 шт.) для гаек колес грузовиков
- 倍力工具組（7件裝）適用於卡車輪胎螺帽
- 倍力工具套装（7件）适用于卡车轮胎螺母
- Nyomatéknövelő szerszámkészlet (7 db) – teherautó kerékanyákhoz
- 6193-16 + 86400M/A- Impact Socket M24, M27, M30 & M32

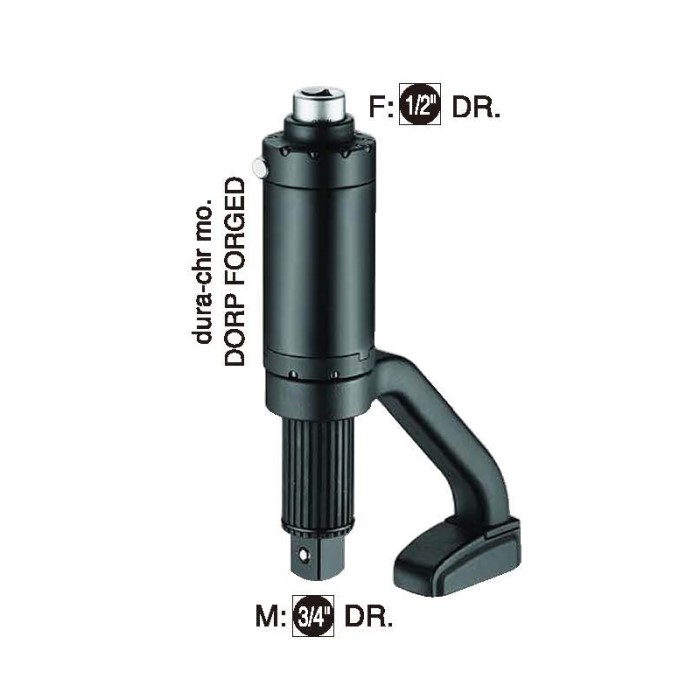

| ITEM NO. | F (HORSE) | M (SQUARE) | GEAR RATIO | TORQUE RATIO | INPUT TORQUE N · m | OUTPUT TORQUE N · m |  KGS |
|---|---|---|---|---|---|---|---|
| 66193-16 | ½" | ¾" | 1 : 16 | 1 : 9.5 | MAX : 158 | MAX : 1500 | 4.3  |

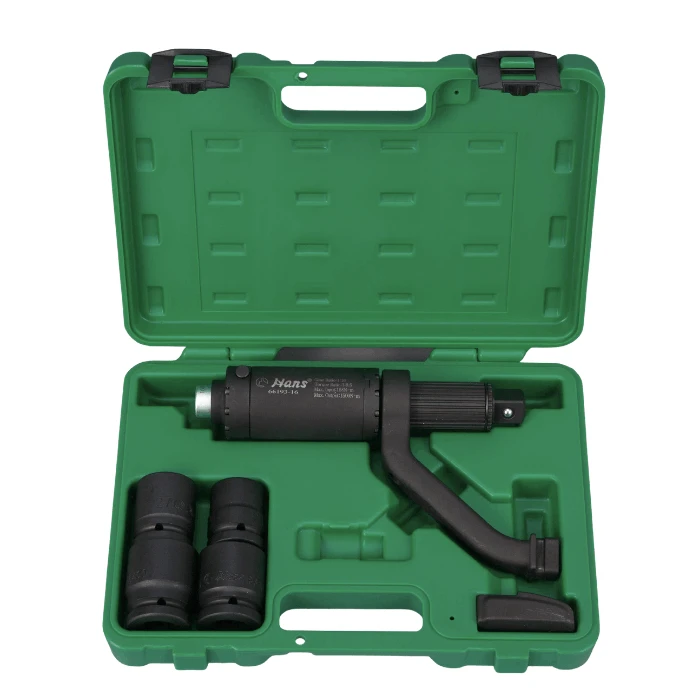

| BLOW CASE : 385x305x85MM | EVA FOAM | ||||||
Feature
How does a 1:16 gear ratio help with truck wheel nuts? Truck wheel nuts are often tightened to 600 Nm or more and can get stuck. A 1:16 ratio means that for every 1 kg of force you put into the handle, the tool puts 16 kg of force onto the nut. It makes loosening a seized bolt as easy as turning a normal screw.
Why are the gears made of Chrome-Molybdenum (Cr-Mo)? At 16,000 lb·in of torque, standard steel would snap. Cr-Mo is an elite industrial alloy that is much tougher and can bend slightly under pressure without breaking. It is the “Absolute” material for heavy-duty gears.

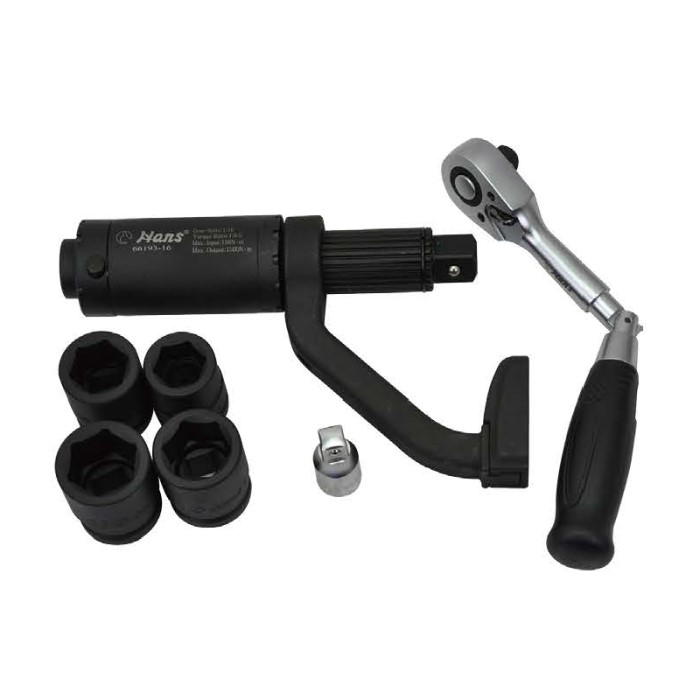

Does this set include sockets? Yes. The 66193-16 is a 7-piece set, which includes the multiplier, handles, and usually the two most common truck socket sizes (32mm and 33mm) made of impact-grade Chrome-Moly, so you can start working immediately.
