Torque Wrench-Clicker Type-1/4", 3/8", 1/2", 3/4" Drive

Torque Wrench- Clicker Type- Green Steel Handle

1/4″, 3/8″, 1/2″, 3/4″ Drive

  • Clés dynamométrique
  • Klucz dynamometryczny
  • Drehmomentschlüssel
  • Llaves dinamométrica
  • مفتاح العزم
  • ประแจวัดแรงบิด
  • 扭力扳手
  • DIN EN ISO 6789
  • DIN 3120 – ISO 1174

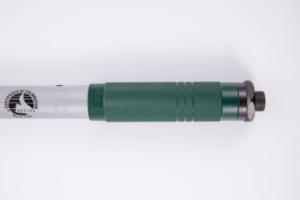

  • Handle Introduction-Plier, Torque Wrench and Wrench
  • Clicker type torque wrench is the most commonly used one in the oil and gas industry today. A clicker wrench is an affordable and extremely accurate tool for tightening bolts or nuts. It is not a power tool but a manual method to achieve proper torque, which makes it ideal for assembling equipment in the oil and gas industry. A clicker-type torque wrench is the most commonly used one in the oil and gas industry today.
  • Torque wrench is an essential tool for ensuring that bolts are tightened to the correct specification. They are made from chrome vanadium steel for strength and durability, and have a ratchet head that allows them to be used for clockwise or anti-clockwise torque. The handle is knurled for a good grip, and when the required torque setting is reached, the wrench produces an audible click and a slight release of tension.
  • The model applied on 1/4″, 3/8″ 1/2″, 3/4″ Drive, apply for N.m and ft lbs (Newton-metre, foot-pound) Item No. 2170Nm, 3170Nm, 3171Nm 4175Nm, 4170Nm, 4171Nm, 6170Nm/ 2170NI, 3170NI, 3171NF, 4175NF, 4170NF, 4171NF, 6170NF

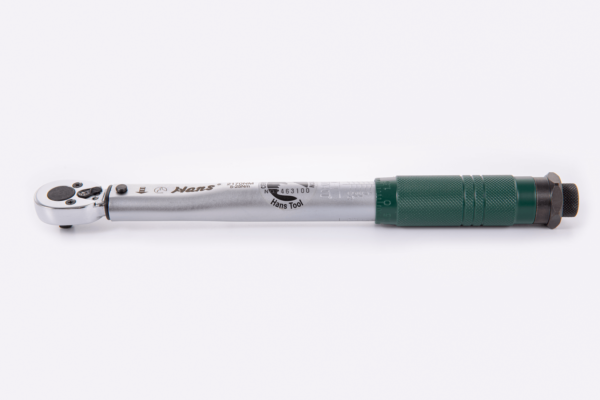

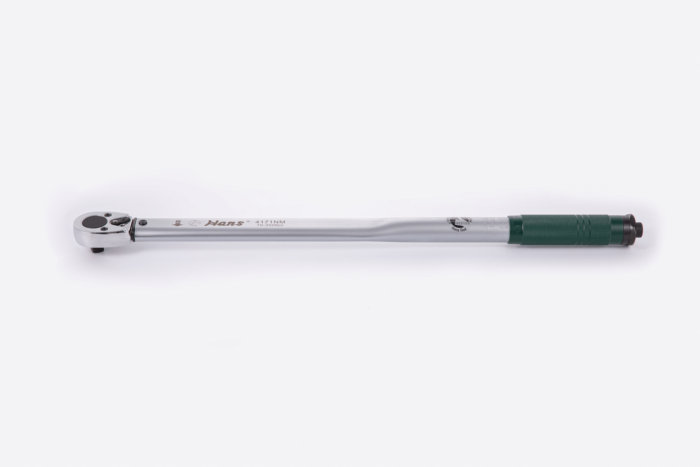

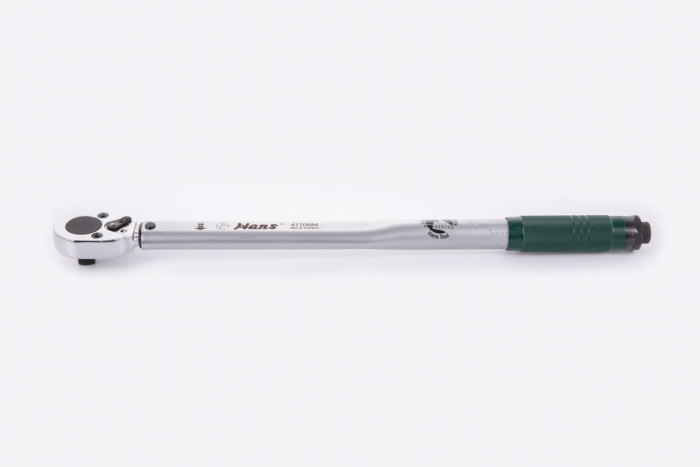

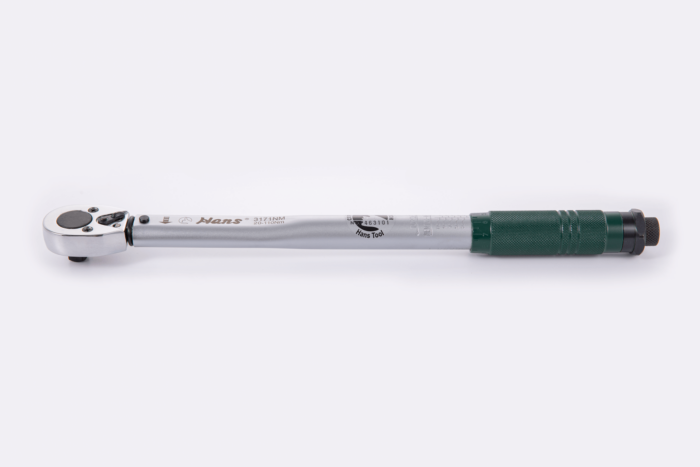

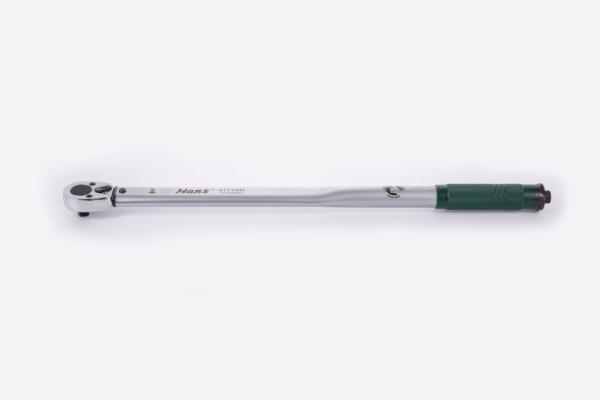

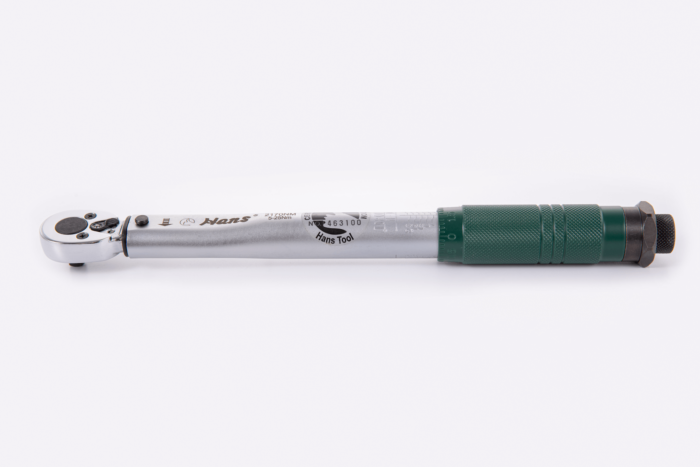

Torque Wrench-Clicker Type- 1/4", 3/8", 1/2", 3/4" Drive- Green Steel Handle
Torque Wrench-Clicker Type- 1/4", 3/8", 1/2", 3/4" Drive- Green Steel Handle
Torque Wrench
Clicker torque wrench
DRIVEITEM NO.CAPACITY
N · m
ITEM NO.CAPACITY
FT-LB
(INCH-LB)
L
mm / inch

g
1/4"2170Nm5-252170NI35-200
INCH · LB
280 / 11"580
3/8"3170Nm5-253170NI35-200
INCH · LB
275 / 11"580
3/8"3171Nm20-1103171NF15-80
FT · LB
360 / 14-3/8"820
1/2"4175Nm20-1104175NF15-80
FT · LB
360 / 14-3/8"830
1/2"4170Nm40-2104170NF30-150
FT · LB
465 / 18"1340
1/2"4171Nm70-3504171NF50-250
FT · LB
630 / 24-13/16"2400
3/4"6170Nm65-4506170NF50-300
FT · LB
850 / 33-1/2"3840

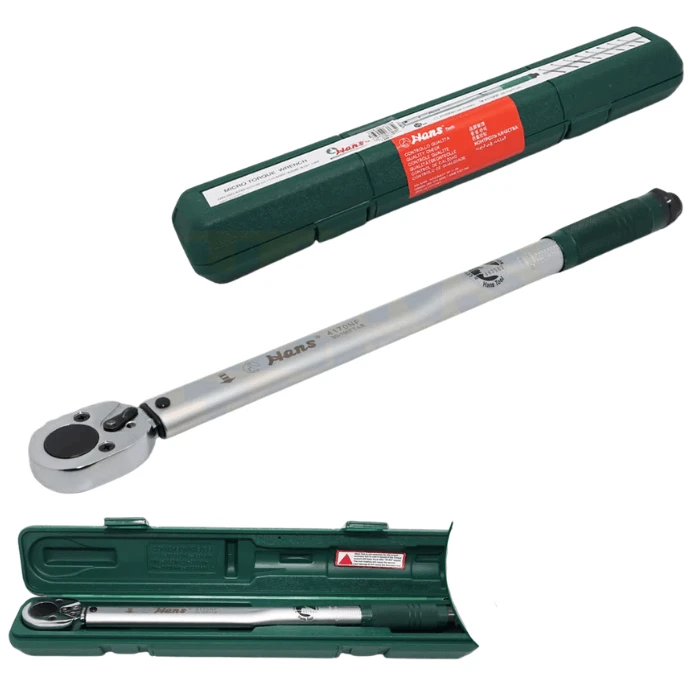

BLOW CASE FOR EACH
