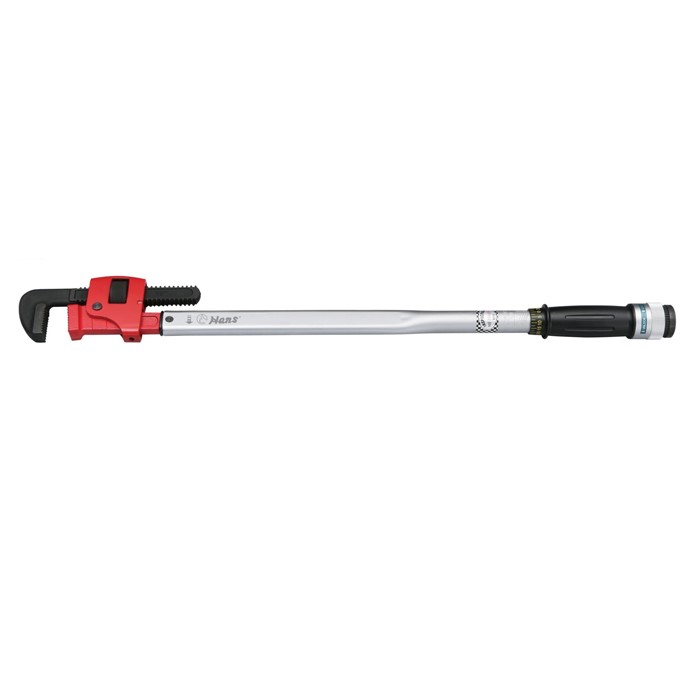

½”Drive Pipe Head Torque Wrench | Adjustable Lock
½”Dr. Adjustable Pipe Head Torque Wrench
- Pipe Head Torque Wrench – ½” Drive – Adjustable
- Clé dynamométrique à griffe 90° – Carré ½” – Réglable
- Klucz dynamometryczny do rur – ½” napęd – Regulowany
- Drehmomentschlüssel für Rohre – ½” Antrieb – Verstellbar
- Llave dinamométrica de tubo – ½” – Ajustable
- مفتاح عزم للأنابيب – ½” – قابل للتعديل
- 水管扭力扳手 – 1/2″驅動 – 可調式
- ประแจแรงบิดสำหรับท่อ – ขนาด ½” – ปรับได้
- Torquímetro tipo garra para tubos – ½” – Ajustável
- Csőfejes nyomatékkulcs – ½” hajtás – Állítható
- Cheie dinamometrică pentru țevi – ½” – Reglabilă
- Chiave dinamometrica per tubi – ½” – Regolabile
- Momentsleutel voor pijpen – ½” – Verstelbaar
- Динамометрический ключ для труб – ½” – Регулируемый
- Boru tipi tork anahtarı – ½” tahrik – Ayarlanabilir
- 1994GN-210/ 1994GN-350/ 1994GN-500
- DIN EN ISO 6789
- DIN 3120 – ISO 1174
- Handle Introduction-Plier, Torque Wrench and Wrench
- Industrial application.
- Direction & Accuracy : C.W. ±6%
- Easy and flexible operation of design.
- A variety of types and wide torque range of choice.
- Torque range : 40Nm – 500Nm (30in.lb – 300ft.lb).
- Torque setting types : Adjustable torque type
| IETM NO. | CAPACITY N · m | MAX OPEN mm | L mm/inch |  g |
|---|---|---|---|---|
| 1994GN-210 | 40-210 | 48 | 590/ 23-⁷ᐟ³²" | 2960  |
| 1994GN-350 | 70-350 | 63 | 825/ 32-³¹ᐟ⁶⁴" | 3700 |
| 1994GN-500 | 100-500 | 63 | 920/ 36-⁷ᐟ³²" | 4300 |
| BLOW CASE FOR EACH | ||||
Feature
Pipe Head Torque Wrench
- Q: What is the advantage of the “Pipe Head” over a standard ratchet head?
- A: Durability. The pipe head design is typically more robust for higher torque ranges, making it ideal for industrial sites, tire shops, and structural steel assembly where tools are subjected to heavy daily use.
- Q: How does the Lock-Unlock button function?
- A: To set the torque, push the button to the Unlock position and rotate the handle. Once the desired scale is reached, click the button to Lock. This “set-and-forget” feature is critical for safety-sensitive fasteners.
- Q: Can this wrench be used for loosening bolts?
- A: No. Torque wrenches are precision measuring instruments. Loosening seized bolts can damage the internal calibration. Always use a Hans Breaker Bar for loosening and only use the torque wrench for final tightening.
- Q: Maintenance & Calibration:
- A: After use, always return the wrench to its lowest torque setting to relieve tension on the internal spring. This preserves the calibration. Hans recommends recalibration every 12 months or 8,000~ 10,000 cycles.
