4336M/A-Magnetic Spark Plug Socket (12 Point)-½” Drive

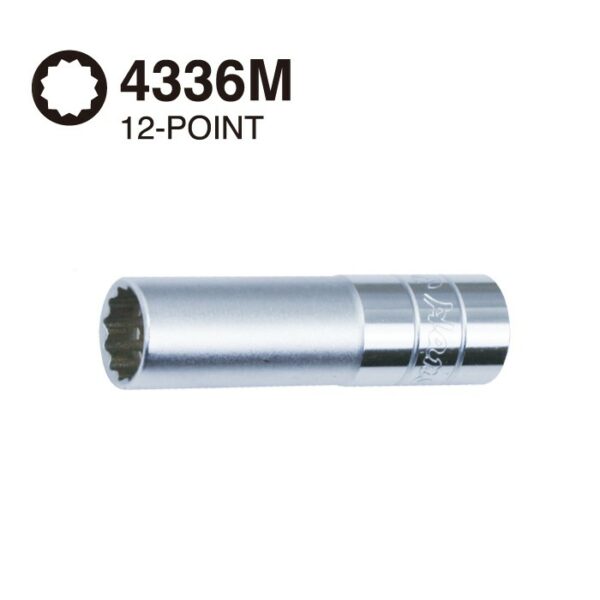

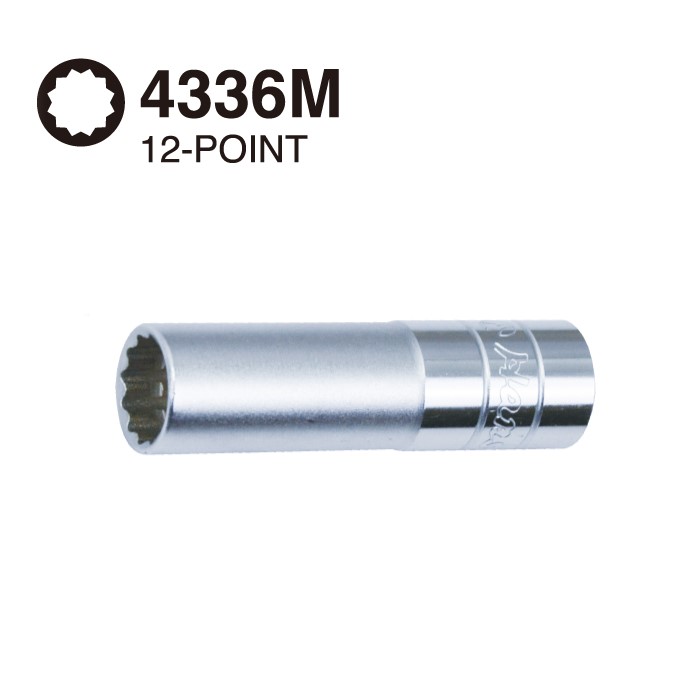

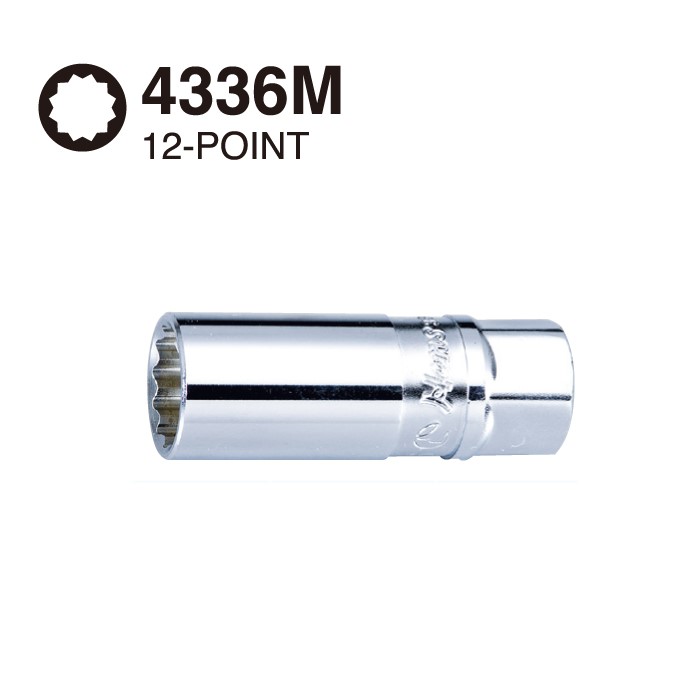

4336M/A Series: ½” Drive 12-Point Magnetic Spark Plug Socket
4305 4306 LPIC
Spark Plug Socket Insight
Magnet
4336M
mm
4336A
inch
D
mm
L
mm
porduct sizeicon1
g
porduct sizeicon2
pcs
1418.97010010
165/8"20.9708810
1823.97013010
20.813/16"26.97013010

Feature

4336M/A Series is built for mission-critical engine service:

  • High-Strength Magnetic Integration: The defining technical feature. An internal magnetic ring is permanently seated in the socket bore. This provides a consistent, high-tension hold on the spark plug that does not degrade over time, unlike rubber inserts that dry out or springs that can lose tension.
  • 12-Point (Bi-Hex) Geometry: Engineered for maximum versatility. The 12-point internal profile allows the socket to engage both standard 6-point hex plugs and specialized 12-point spark plugs found in modern European and high-performance engines.
  • Thin-Wall Architecture: Precision-machined to have a reduced outer diameter. This ensures the socket can enter narrow spark plug tubes where standard deep sockets would bind against the cylinder head walls.
  • Forged Chrome Vanadium (Cr-V) Metallurgy: Forged and heat-treated to professional industrial standards. This provides the structural rigidity needed for high-breakout torque while maintaining a slim profile.
  • Dual-Standard Loadouts: Available in metric and SAE equivalents, including the critical 14mm, 16mm, and 21mm sizes to cover the entire automotive and industrial spectrum.
Magnet insert spark plug socket HansTools
