PRODUCTS
4101GQ-108-Quick Release Ratchet Handle (108 Teeth)-½” Drive

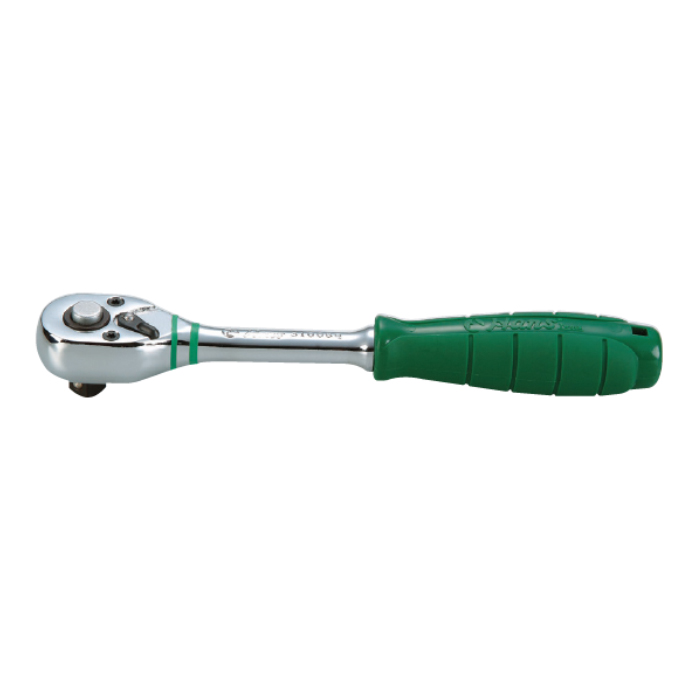

4101GQ-108 ½” Drive Ultra-Precision 108-Teeth Quick Release Ratchet Handle
- Quick Release Ratchet Handle
- Cliquet à dégagement rapide
- Rękojeść grzechotki z szybkim zwolnieniem
- Schnelllöse-Ratschengriff
- Mango de carraca con liberación rápida
- مقبض بسقاطة مع تحرير سريع
- 快速釋放棘輪扳手握柄
- Cabo de catraca com liberação rápida
- Gyorskioldós racsnis fogantyú
- Mâner cu clichet și eliberare rapidă
- Manico a cricchetto con sgancio rapido
- Ratelgreep met snelontgrendeling
- Hızlı bırakmalı lokma anahtarı sapı
- Трещоточная рукоятка с быстрым освобождением
- Handle Introduction-(Ratchet & Screwdriver)
4101GQ-108 is a pinnacle of pneumatic-grade manual fastening engineering. Featuring a world-class 108-teeth ratcheting mechanism, this tool is designed for high-density engine bays and industrial machinery where rotational clearance is minimal. Constructed from forged Chrome Vanadium (Cr-V) with a specialized internal gear alloy, it balances an ultra-fine swing arc with the structural integrity required for high-torque breakaway applications.
| TYPE | TEETH | D mm | T mm | DIN N．m | L mm/inch |  g |  pcs |
|---|---|---|---|---|---|---|---|
| 4101PQ-108 | 108 | 34.5 | 33.3 | 512 | 260mm/10" | 472 | 5 |
| 4101GQ-108 | 108 | 34.5 | 33.3 | 512 | 270mm/10-½" | 508 | 5 |
Feature
- Ratchet Handle design with Quick Release for faster socket replacement
- 108 Teeth mechanism for finer swing control in narrow access points
- 1/2 Drive platform for common workshop socket applications
- Reversible operation for tighten and loosen direction switching
- Grip handle version for stable handling in repetitive use
FAQ
Q1. How many teeth does this ratchet handle have?
A1. This ratchet handle has 108 teeth.
Q2. Is quick release included?
A2. Yes, this ratchet handle includes quick release.
Q3. What drive size is this ratchet handle?
A3. This model is 1/2 drive.
Q4. Is this a reversible ratchet handle?
A4. Yes, it supports forward and reverse operation.
Q5. What is the main benefit of 108 teeth?
A5. 108 teeth gives finer swing movement and better control in tight spaces.
Q6. Can it be used with impact tools?
A6. No, this is a hand ratchet handle and should not be used with impact tools.
