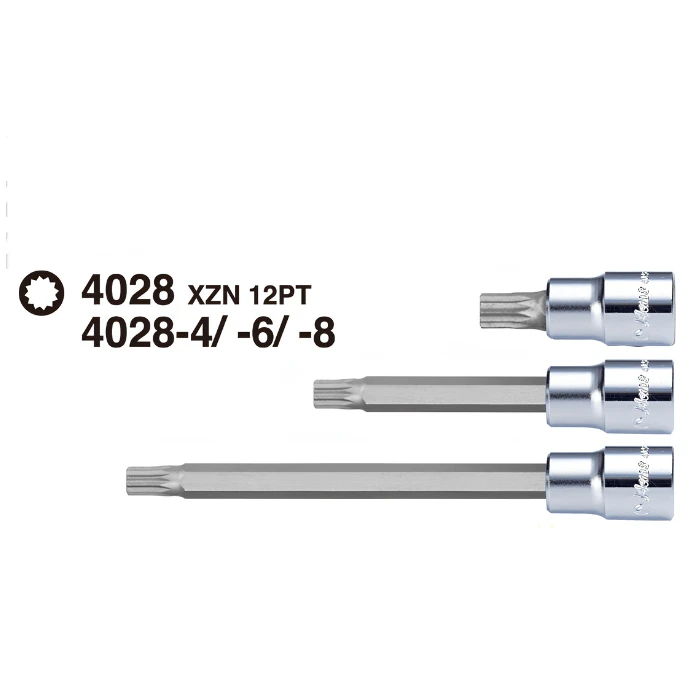

4028-4 XZN Bit Socket | ½” Dr. 100mm Long S2 Steel

4028M mm	4028 L : 55mm	4028-4 L : 100mm	4028-6 L : 150mm	4028-8 L : 200mm	pcs
M3	65(g)	105(g)	150(g)	164(g)	10
M4	65(g)	105(g)	150(g)	164(g)	10
M5	65(g)	115(g)	160(g)	164(g)	10
M6	70(g)	115(g)	160(g)	164(g)	10
M7	70(g)	115(g)	160(g)	164(g)	10
M8	70(g)	115(g)	160(g)	164(g)	10
M9	75(g)	120(g)	165(g)	170(g)	10
M10	92(g)	120(g)	165(g)	170(g)	10
M12	100(g)	160(g)	200(g)	298(g)	10
M14	120(g)	180(g)	230(g)	300(g)	10
M16	142(g)	240(g)	260(g)	380(g)	10
M18	230(g)	250(g)	290(g)	470(g)	10

Feature

Triple-Square Logic & S2 Hybrid Engineering

The 4028 XZN Series is built for mission-critical technical service:

12-Point (Triple Square) Geometry: The defining professional feature. The XZN profile utilizes 12 equal-spaced spline points to distribute torsional load across a massive surface area. This architecture is “Absolute” for high-stretch fasteners where standard 6-point tools would fail or round the fastener.
S2 Alloy Steel Bit: The bit is forged from high-hardness S2 steel, induction-hardened to resist twisting and shearing. This material ensures that the sharp 12-point edges maintain their dimensional accuracy across thousands of high-torque cycles.
Forged Chrome Vanadium (Cr-V) Base: The 1/2″ drive socket portion is forged from heat-treated Cr-V. This provides the structural toughness needed for manual ratcheting and prevents the base from cracking under industrial-scale leverage.
Mirror-Polished Socket Base: Following the Hans professional standard, the Cr-V base is mirror-polished for effortless cleaning and superior corrosion resistance.
Precision Press-Fit Assembly: The bit is hydraulically pressed into the base, creating a unified tool that eliminates “play” or wobbling, ensuring 100% of the input torque is transferred directly to the XZN bolt.
