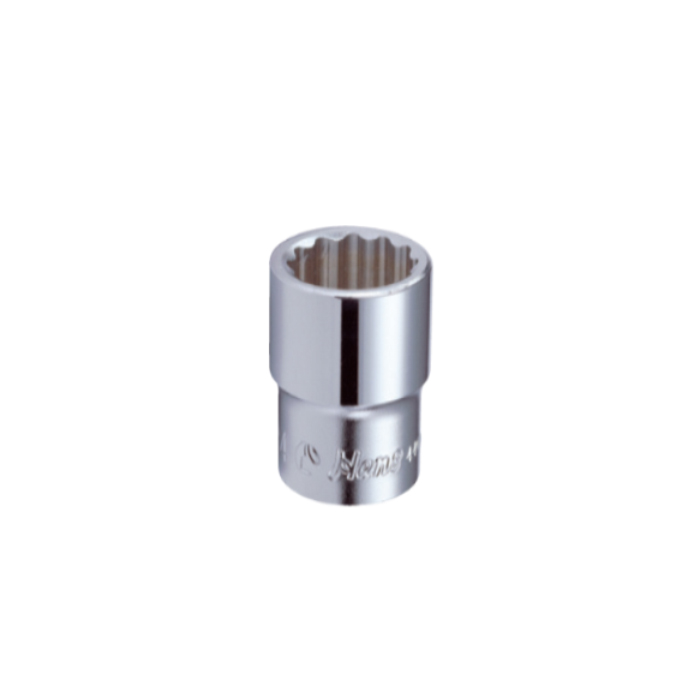

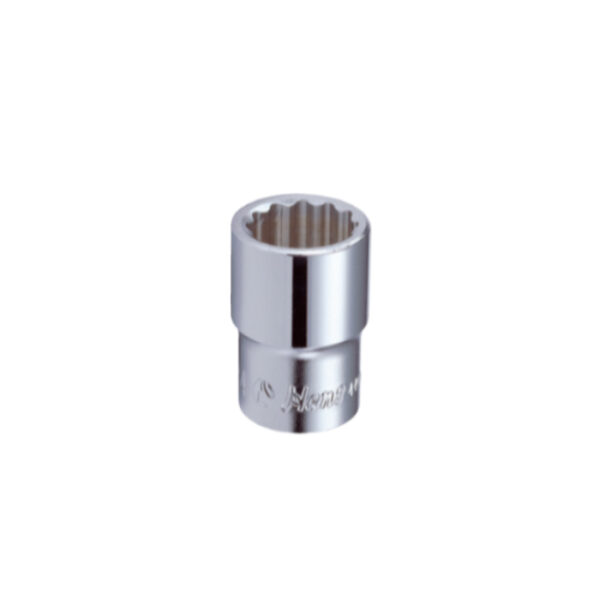

3402M/A-3⁄8″ Drive Hand Socket(Manual)12 Point
3402M/A-3⁄8″Drive Hand Socket(Manual)12 Point
- Douilles 12 pans
- Gniazdo dwunastokątne
- Zwölfkantiger Sockel
- Zócalo dodecagonal
- مأخذ ثنائي الشكل
- ซ็อกเก็ตสิบสองเหลี่ยม
- DIN 3120, ISO 1174
- DIN 3124, ISO 2725-1
- ASME B 107.5M, ASME B 107.1
- 手動套筒 公制/ 英制 十二角
- An-Lock Drive® (Superb Torque)
- Understanding Bit Sockets: A Smart Combination of Power and Precision
Feature
¼” Deep Manual Optimization
Q: What is the main structural benefit of the An-Lock Drive® system on small ¼” drive fasteners?
A: Small fasteners (4mm to 15mm) feature tiny hex heads that round off instantly under uneven corner pressure. Standard sockets apply force right on the weak tips of the nut. Hans An-Lock Drive® redirects all turning forces onto the wide center flats of the fastener, allowing technicians to safely break loose stubborn or over-torqued micro-bolts without stripping them.
| 3402M (mm) | 3402A (inch) | D1 (mm) | D2 (mm) | L (mm) |  g |  pcs |
|---|---|---|---|---|---|---|
| 5.5 | 9 | 17 | 28 | 19 | 10 | |
| 6 | ¼ | 10 | 17 | 28 | 19 | 10 |
| 7 | 11 | 17 | 28 | 19 | 10 | |
| 8 | ⁵ᐟ₁₆ | 12 | 17 | 28 | 20 | 10 |
| ¹¹ᐟ₃₂ | 12.8 | 17 | 28 | 20 | 10 | |
| 9 | 13.2 | 17 | 28 | 20 | 10 | |
| ⅜ | 13.7 | 17 | 28 | 20 | 10 | |
| 10 | 14.5 | 17 | 28 | 20 | 10 | |
| 11 | ⁷ᐟ₁₆ | 15.7 | 17 | 28 | 20 | 10 |
| 12 | ¹⁵ᐟ₃₂ | 16.8 | 17 | 28 | 20 | 10 |
| 13 | ½ | 18 | 17 | 28 | 20 | 10 |
| 14 | ⁹ᐟ₁₆ | 20 | 18 | 28 | 40 | 10 |
| 15 | ¹⁹ᐟ₃₂ | 22 | 20 | 28 | 40 | 10 |
| 16 | ⅝ | 22 | 20 | 28 | 40 | 10 |
| 17 | 24 | 22 | 30 | 60 | 10 | |
| ¹¹ᐟ₁₆ | 24 | 22 | 30 | 60 | 10 | |
| 18 | 24 | 22 | 30 | 60 | 10 | |
| 19 | ¾ | 25.8 | 24 | 30 | 65 | 10 |
| 20 | ²⁵ᐟ₃₂ | 28 | 26 | 30 | 75 | 10 |
| 21 | ¹³ᐟ₁₆ | 28 | 26 | 32 | 75 | 10 |
| 22 | ⅞ | 29.5 | 26 | 32 | 80 | 10 |
| 23 | 31.7 | 27 | 32 | 98 | 10 | |
| 24 | ¹⁵ᐟ₁₆ | 31.7 | 28 | 33 | 100 | 10 |
| 1" | 31.7 | 28 | 33 | 100 | 10 |
