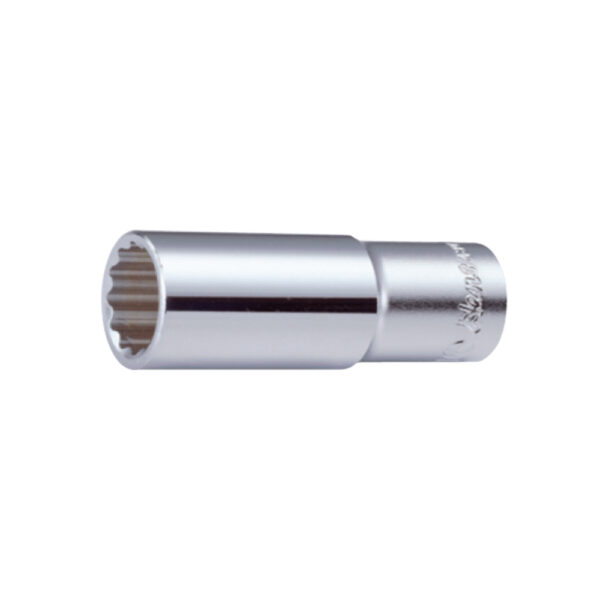

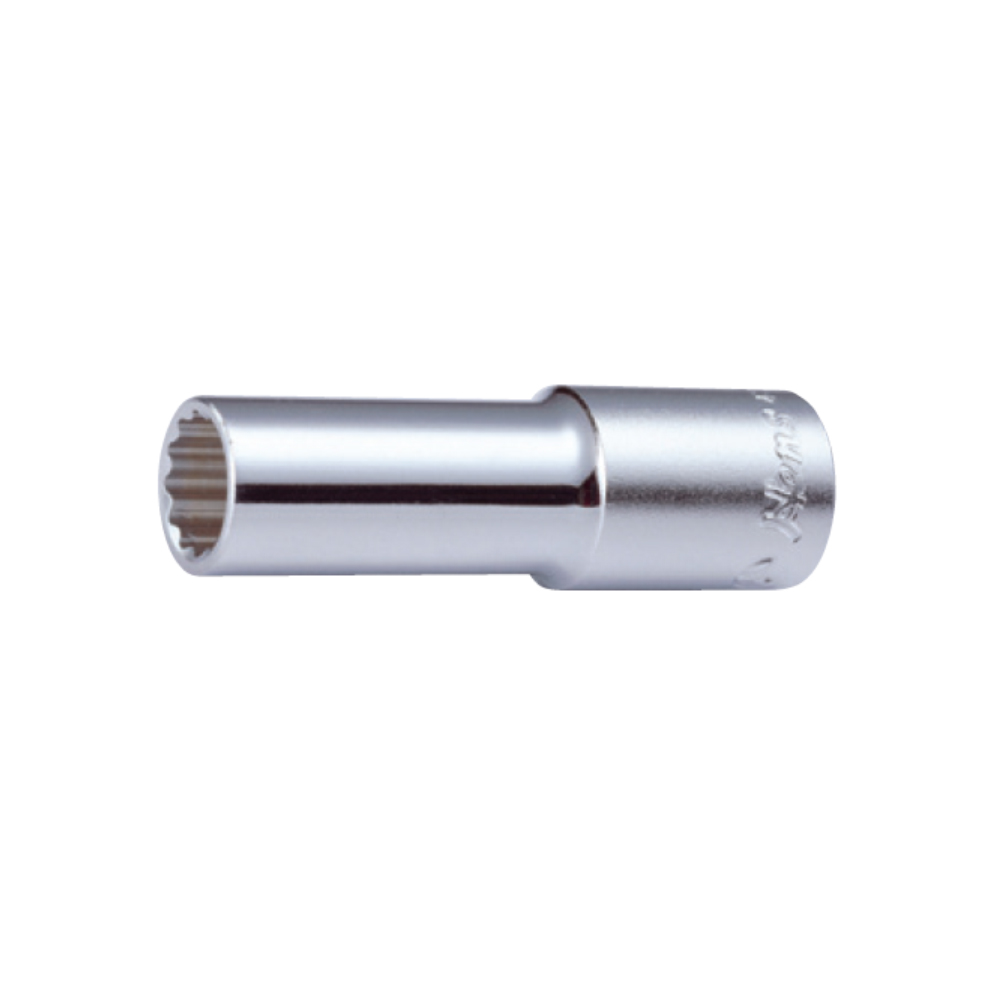

3302M/A-3⁄8″ Drive Deep Socket (Manual) 12 Point

Name: 3302M/A Deep Socket | ⅜" Dr. 12-Point Metric & SAE
SKU: 3302M/A

SKU 3302M/A Categories Socket /Impact Socket / Socket Wrench Set, Socket, Socket-3⁄8"DR. Tags 12Pt, 3⁄8""DR, Deep Socket

Feature

3302M/A Series is built for mission-critical workshop service:

12-Point (Double-Hex) Architecture: The defining technical feature. By providing 12 points of contact, the socket can engage a fastener at twice the frequency of a 6-point socket. This is critical for 3/8″ drive applications where the tool often operates in engine bays with restricted swing arcs.
Low-Profile Shallow Design: Measuring between 26mm and 30mm (depending on size), this socket minimizes the “tool-stack” height. This allows the technician to fit a ratchet and socket into gaps that are too narrow for “Deep” or even “Semi-Deep” alternatives.
An-Lock Drive® Compatibility: Precision-machined internal drive walls ensure a secure, zero-play lock on ratchets and extensions. This prevents the socket from detaching inside a machine or engine block (FOD prevention).
Forged Chrome Vanadium (Cr-V) Metallurgy: Forged from premium Cr-V steel and heat-treated to professional hardness standards. This ensures the 12-point teeth do not “shear” or round-out under high manual torque loads.
Full Metric & SAE Scale: Available in a comprehensive range from 6mm to 24mm and 1/4″ to 1″, providing a unified solution for global mechanical standards.

3302M (mm)	3302A (inch)	D1 mm	D2 mm	L mm	g	pcs
6	¼	10	17	63	40	10
7		10.6	17	63	40	10
8	⁵ᐟ₁₆	12	17	63	40	10
9		13	17	63	40	10
	⅜	14	17	63	60	10
10		14.5	17	63	60	10
11	⁷ᐟ₁₆	16	17	63	60	10
12		17	18	63	60	10
13	½	18	17	63	60	10
14	⁹ᐟ₁₆	20	18	63	80	10
15		22	20	63	100	10
16	⅝	22	20	63	100	10
17	¹¹ᐟ₁₆	24	22	63	100	10
18		24	22	63	100	10
19	¾	26	24	63	110	10
20		28	26	63	150	10
21	¹³ᐟ₁₆	28	26	63	150	10
22	⅞	30	27	63	160	10
23		31	27	63	185	10
24	¹⁵ᐟ₁₆	32	28	63	190	10
	1"	32	28	63	190	10
