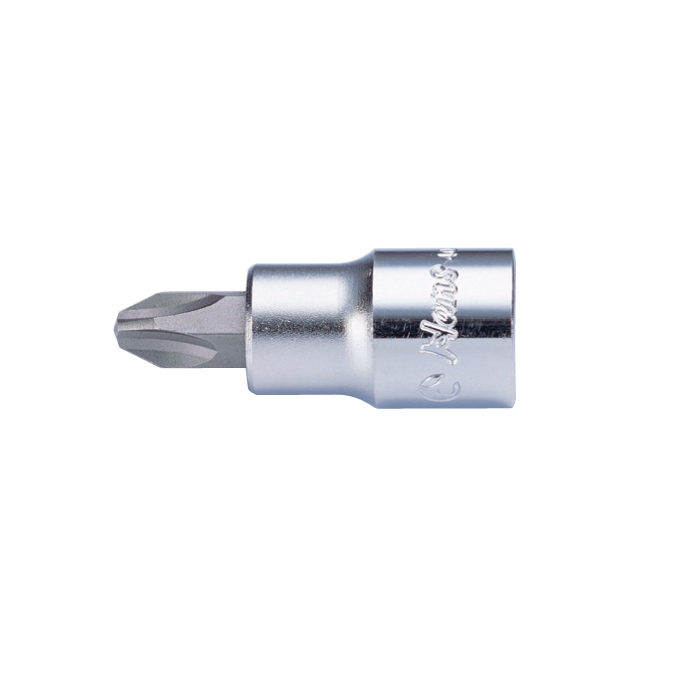

3022-Phillips Bit Socket- 3⁄8″ Drive

SKU 3022 Categories Socket /Impact Socket / Socket Wrench Set, Socket, Socket-3⁄8"DR. Tags 3⁄8""DR, Bit Socket, Phillips

3022	LENGTH mm	g	pcs
PH1	48	50	10
PH2	48	50	10
PH3	48	55	10
PH4	48	60	10

S2+CrV Material Logic & Engineering

The 3022 Series is built for mission-critical mechanical service:

High-Hardness S2 Insert: The defining technical feature. The Phillips bit insert is forged from S2 tool steel (HRC 58-62). This material is specifically chosen for the “working end” because it resists the “rounding” effect common in high-torque Phillips applications.
Chrome Vanadium (CrV) Socket Body: The drive base is forged from CrV alloy. This provides the toughness and elasticity required at the ⅜” square drive end, ensuring the socket body does not crack when high leverage is applied via a ratchet or breaker bar.
Interlocking Insert Architecture: The S2 bit is precision-pressed into the CrV socket. This two-piece “Insert-and-Base” design allows each part of the tool to be made from the optimal material for its specific function.
Full-Spectrum Phillips Range: Available in PH1, PH2, PH3, and PH4. This covers everything from small machine screws to heavy-duty industrial fasteners.
Industrial Finish: Features a sandblasted, anti-slip finish on the S2 insert and a high-polish chrome finish on the CrV base for superior corrosion resistance and easy cleaning.
