TTF-40U/40A Air Impact Wrench Combo Set | EVA Foam

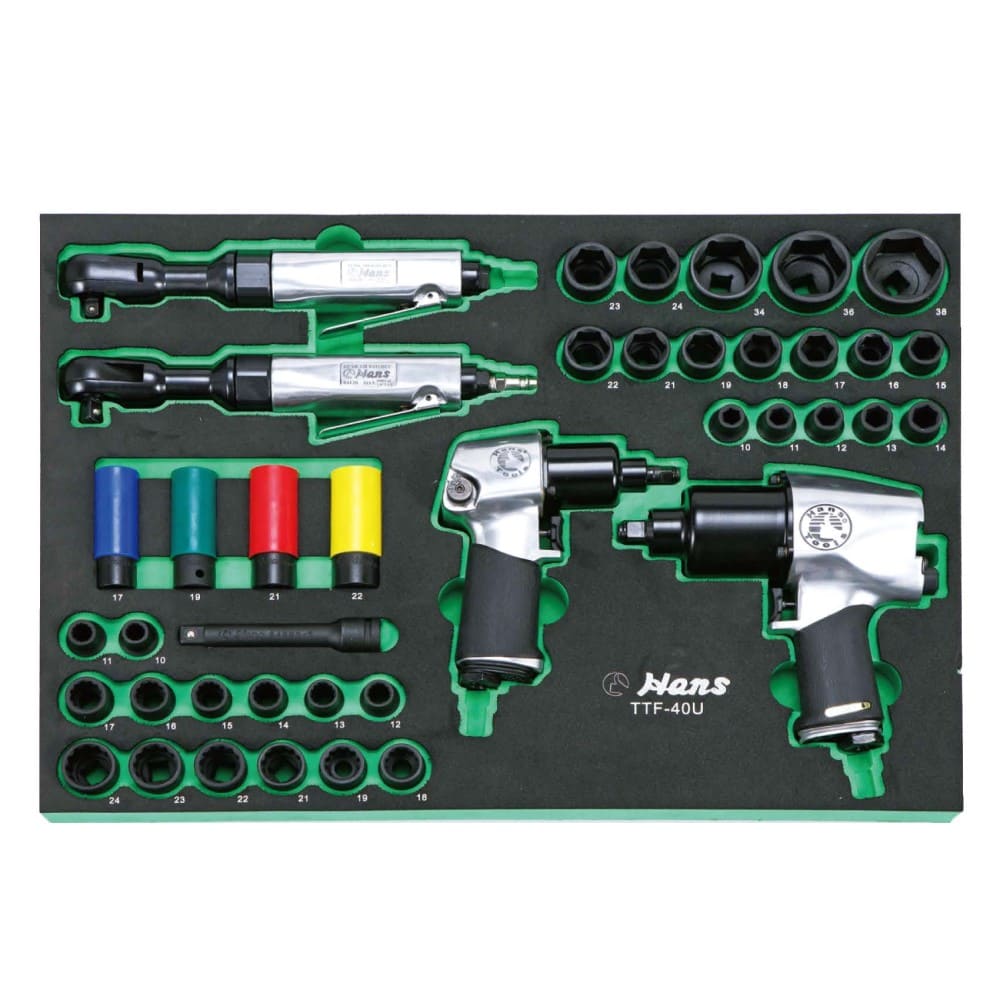

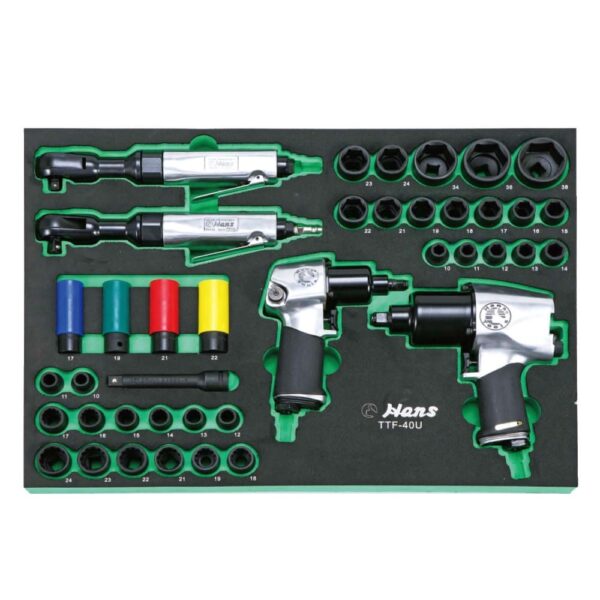

TTF-40U/40A: ⅜” & ½” Drive 40-Piece Air Impact Wrench Combo Set (EVA Foam)
- Ensemble combiné de clés à chocs pneumatiques
- Zestaw klucza udarowego pneumatycznego
- Druckluft-Schlagschrauber-Combo-Set
- Juego combinado de llaves de impacto neumáticas
- مجموعة كومبو وجع تأثير الهواء
- ชุดคอมโบประแจลม
- 氣動扳手組
Air Impact Wrench Combo Set (Models TTF-40U and TTF-40A Professional Trolley Selection) is a high-performance, heavy-duty pneumatic drive system engineered for heavy vehicle repair bays, production assembly lines, and industrial machinery maintenance. Housed inside a professional CNC-cut, dual-color EVA foam tray (measuring 570 x 410 x 45 mm) designed to drop directly into mobile tool cabinets, this 40-piece master layout is optimized to handle structural fastening.
Feature
Dual pneumatic Powerhouses & Heavy-Duty Air Ratchets
The pneumatic tools in this master set are engineered to handle continuous industrial air line pressure:
- 3/8″ & 1/2″ High-Output Air Impact Wrenches: Outfitted with the heavy-duty 3/8″ drive air impact wrench (83110) delivering 271 N·m of balanced working torque, and the super-duty 1/2″ drive air impact wrench (84110) putting out 814 N·m of maximum breakaway force.
- Dual-Drive Performance Air Ratchets: Includes the 3/8″ drive air ratchet (83120) rated at 70 N·m and the 1/2″ drive air ratchet (84120) rated at 100 N·m, providing fast-spinning action in cramped, narrow engine compartments and under-chassis corridors.
- Advanced Air Motor Efficiency: Built with high-grade rotor vanes and heavy-duty steel front plates to optimize airflow. This minimizes pneumatic pressure drops and keeps the tool running smoothly during continuous high-torque operations.
Forged Chrome-Molybdenum Sockets & Thin-Wall Wheel Optimization
- Drop-Forged Chrome-Molybdenum (Cr-Mo) Sockets: Sockets and extension bars are forged from premium Cr-Mo steel and oil-quenched. The high ductility of Cr-Mo absorbs heavy shock waves from impact wrenches, preventing splitting or cracking under heavy use.
- Super Thin-Wall Protective Impact Sockets (84304C): Features a 4-piece set of thin-walled deep impact sockets (17, 19, 21, 22 mm for TTF-40A; or 11/16″, 3/4″, 13/16″, 7/8″ for TTF-40U). These are engineered with outer protective sleeves to prevent damage to expensive aluminum wheel hubs during tyre rotation.
- Two Specialized Configurations:
- TTF-40A: Equipped with a metric (mm) impact socket layout.
- TTF-40U: Equipped with an imperial / SAE (inch) impact socket layout.
TTF-40U/40A - 40PCS ⅜", ½" DR. AIR IMPACT WRENCH COMBO SET
| 40PCS | TTF-40U | TTF-40A |
|---|---|---|
| 83110 | ⅜" DR. AIR IMPACT WRENCH 271 N . m |
|
| 83120 | ⅜" DR. AIR RATCHET 70 N . m |
|
| 84110 | ½" DR. AIR IMPACT WRENCH 814 N . m |
|
| 84120 | ½" DR. AIR RATCHET 100 N . m |
|
| 84400M | ½" DR. IMPACT SOCKET 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 23, 24, 34, 36, 38mm 17PCS | ½" DR. IMPACT SOCKET 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1", 1-1/16, 1-1/8, 1-3/16, 1-1/4, 1-5/16, 1-7/16 17PCS |
| 84402M (12pt) | ½" DR. IMPACT DEEP SOCKET 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 23, 24mm 14PCS |
|
| 84304C | ½" DR. IMPACT SOCKET 17, 19, 21, 22mm 4PCS | ½" DR. IMPACT SOCKET 11/16, 3/4, 13/16, 7/8 4PCS |
| 84800B-5 | ½" DR. IMPACT EXTENSION BAR 125mm/ 5" |
|
570 x 410 x 45mm  x 1SET  |
||
EVA FORM SYSTEM FOR YOUR DESIGN
TT TRAY CAN TRANSFER TO EVA FORM SYSTEM COMPLETELY
