6194/ 8194/8196 Torque Multiplier 5-Pc Tool Set |

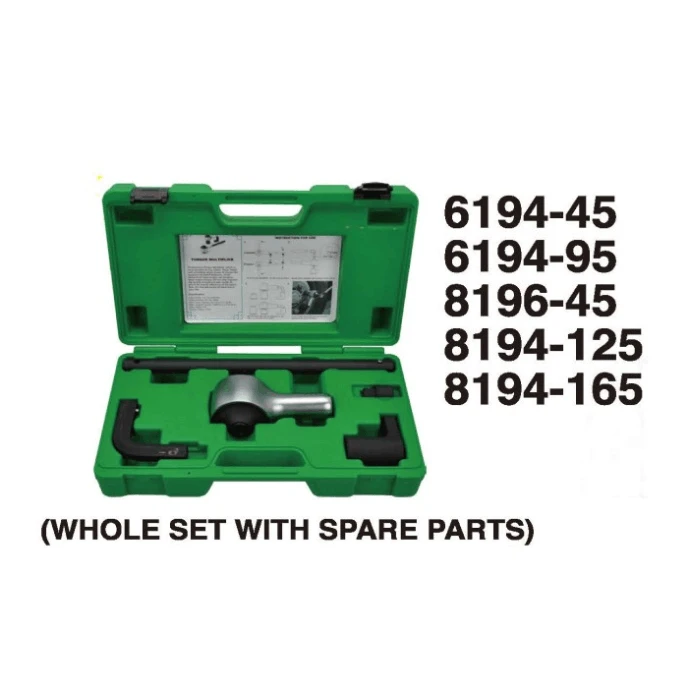

6194, 8194& 8196: 5-Piece Professional Torque Multiplier Tool Set
- Multiplicateur de dynamometrique
- Mnożnik momentu obrotowego
- Drehmomentmultiplikator
- Multiplicando dinamométrica
- مضاعف عزم الدوران
- ตัวคูณแรงบิด
- 倍力器
- Beyond the Basics: Innovative Uses of Wheel Service Tools
Torque Multiplier Tool Set (Model 6194 & 8194 5-Piece Configuration) is a complete, industrial-tier planetary gear mechanical force multiplication kit. While standard 2-piece setups limit your physical anchoring positions, this comprehensive 5-piece master set is engineered to solve complex spatial clearance challenges on heavy transport fleet wheels, structural steel frameworks, industrial pipeline flanges, and agricultural machinery. Packed inside a rugged, impact-resistant blow-molded storage case, this set includes the planetary multiplier head, a high-leverage input turning handle, and two distinct styles of reaction stabilizers—a long straight reaction lever and an L-shape angled reaction arm.
Torque Multiplier
Make work easier by using leverage which multiplies the Torque.
There are three ways simple machines make work easier:
- by increasing the distance through which force is applied,
- by changing the direction of applied force,
- by multiplying force of speed of the energy applied.
| W mm | H mm | L mm | INPUT TORQUE N · m | OUTPUT TORQUE N · m |  g |
|---|---|---|---|---|---|
| 70 | 78 | 428 | MAX : 303 | MAX : 1000 | 2250  |
| 82 | 97 | 480 | MAX : 231 | MAX : 1500 | 4200 |
| 96 | 111 | 500 | MAX : 758 | MAX : 2500 | 5660 |
| 82 | 110 | 480 | MAX : 222 | MAX : 2000 | 4500 |
| 96 | 134 | 500 | MAX : 208 | MAX : 2500 | 5850 |
| 73 | 84 | 425 | MAX : 500 | MAX : 1500 | 2350 |
| 91 | 113.5 | 500 | MAX : 1000 | MAX : 3000 | 4850 |
Feature
FAQ Section
Notice for Procurement Officers: Outfitting mobile service trucks and industrial repair stations with this 5-piece torque multiplier set ensures field technicians have both straight and L-shape reaction bars on hand, eliminating delays caused by incompatible anchoring points on site.
What is the benefit of the 5-piece set configuration over the standard 2-piece set? A standard 2-piece set includes only one style of reaction bar (typically a straight bar), which can leave you stranded if there isn’t a flat, parallel surface nearby to anchor against. The Hans 5-piece set includes both a straight reaction lever and an L-shape angled reaction bar. This dual-stabilizer system ensures you can safely anchor the tool in tight wheel wells, deeply recessed structural compartments, or against parallel machine frames without needing improvised blockings.

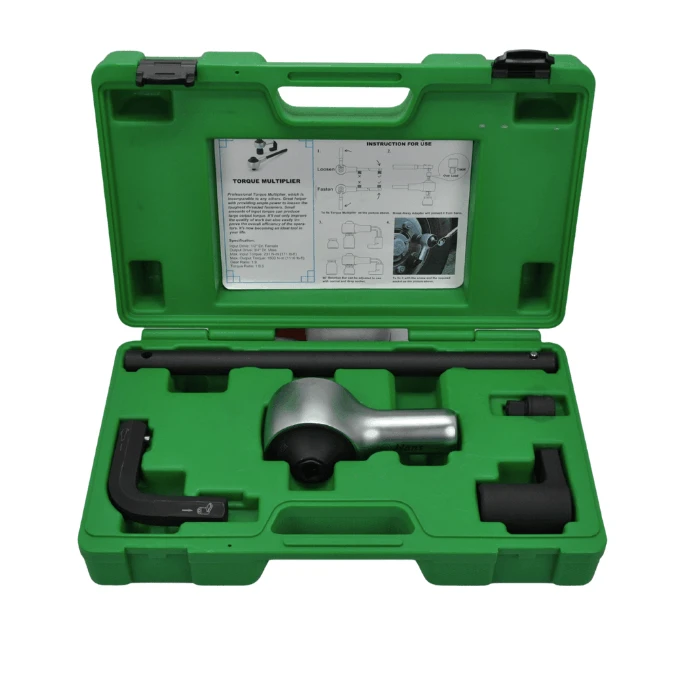

What are the five individual components included in this set? This comprehensive industrial kit contains:

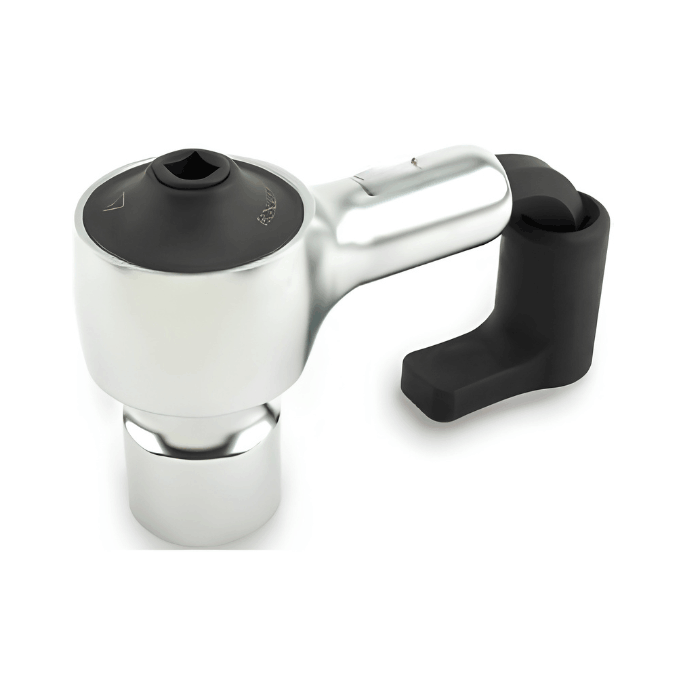

- The planetary gear multiplier head (engineered from heat-treated steel).
- The straight steel reaction lever for parallel surface stabilization.
- The 90-degree L-shape reaction bar for perpendicular or recessed anchoring.
- An auxiliary manual drive handle/lever to assist with steady tool alignment.
- A heavy-duty, blow-molded carrying case to organize and protect the components.
How do I choose between the 1:4, 1:9, 1:12, and 1:16 configurations? Your choice depends on your required output torque and workspace constraints. If you are servicing standard heavy truck hubs, the 6194-4 (1:4 ratio, 1000 Nm max) is highly compact and fast to operate. If you are dealing with heavy industrial piping flanges or massive agricultural axle nuts, the 8194-16 (1:16 ratio, 2500 Nm max) delivers the ultimate mechanical advantage, requiring very little manual input effort to release highly stubborn fasteners.
