86117 ¾” Drive Air Impact Wrench | Composite Cover

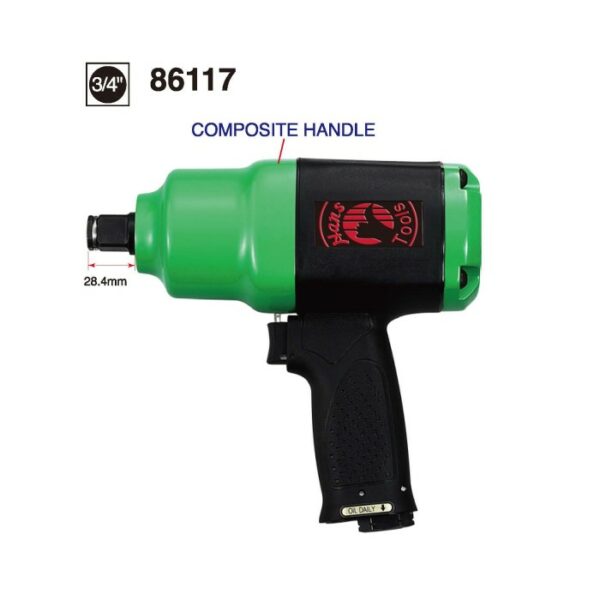

86117 – ¾″ Drive Air Impact Wrench with 28.4mm Shaft and Composite Body
  • Air Impact Wrench (Heavy Duty) – ¾” Drive – Composite Cover
  • Clé à chocs pneumatique (usage intensif) – Carré ¾” – Capot composite
  • Klucz udarowy pneumatyczny (do ciężkich prac) – ¾” – Obudowa kompozytowa
  • Druckluft-Schlagschrauber (Heavy Duty) – ¾”-Antrieb – Komposit-Gehäuse
  • Llave de impacto neumática (trabajo pesado) – ¾” – Cubierta compuesta
  • مفتاح صدمات هوائي (للخدمة الشاقة) – ¾” – غطاء مركب
  • 氣動衝擊扳手(重型)– 3/4″驅動 – 複合材料外殼
  • บล็อกลมกระแทก (งานหนัก) – ขนาด ¾” – ฝาครอบคอมโพสิต
  • Chave de impacto pneumática (alta resistência) – ¾” – Corpo em material composto
  • Pneumatikus ütvecsavarozó (nehéz kivitel) – ¾” – Kompozit ház
  • Cheie pneumatică de impact (greu) – ¾” – Carcasă compozită
  • Avvitatore pneumatico (uso gravoso) – ¾” – Copertura in materiale composito
  • Pneumatische slagsleutel (zware uitvoering) – ¾” – Composiet behuizing
  • Пневмогайковерт (усиленный) – ¾” привод – Композитный корпус
  • Havalı darbeli anahtar (ağır hizmet) – ¾” – Kompozit kaplama
  • 工業級氣動衝擊扳手  超大出力  3/4″方頭
  • 雙鎚裝置結構, Twin-Hammer
  • Impact Wrench- Pneumatic Power Instruction

※ LIGHT WEIGHT

ITEM NO.DRIVEANVIL
inch(mm)
MAX TORQUE
FT · LB(Nm)
@ 5 SEC
MINI TORQUE
FT · LB(Nm)
STDBOLT SIZE
inch(mm)
FREE SPEED
R.P.M.
MECHANISM
86117drive5 e16474959416861.12"
(28.4mm)
1300 Ft.Lbs/ 1763N.m200-900 Ft.LBs
(271-1220 N.m)
M306,500TWIN
HAMMER
EXHAUSTAVG.DLR
CONSUMPTION
CFM
AIR PRESSURE
BAR(PSI)
AIR INLET
inch
AIR HOSE
ID
OVERALL LENGTH
inch(mm)
porduct sizeicon1
KGS
porduct sizeicon2
pcs
Handle/ With Muffler6.76.2(90)½8.9"/ 225mm3.894

Feature

86117 Series represents an elite engineering configuration for mid-to-high mass industrial fastening operations—a professional-grade 3/4″ Drive Heavy-Duty Air Impact Wrench. Purpose-built to deliver the absolute “Mechanical Truth” across structural steel erection, commercial truck wheel bays, heavy agricultural equipment lines, and rugged plant maintenance environments, this tool eliminates the exhausting physical weight of standard all-metal chassis tools.

By integrating a specialized high-tensile Composite Cover Housing, the 86117 shifts the tool’s structural center of gravity rearward, heavily mitigating user wrist strain during repetitive, continuous shifts. Beneath its impact-resistant polymer armor lies a rugged Twin-Hammer impulse device built around a precision-ground, thick-core 28.4mm output anvil shaft, generating tremendous breakaway torque to conquer cross-threaded, rusted, or heat-seized fasteners instantly.
