8606- Hose Reel

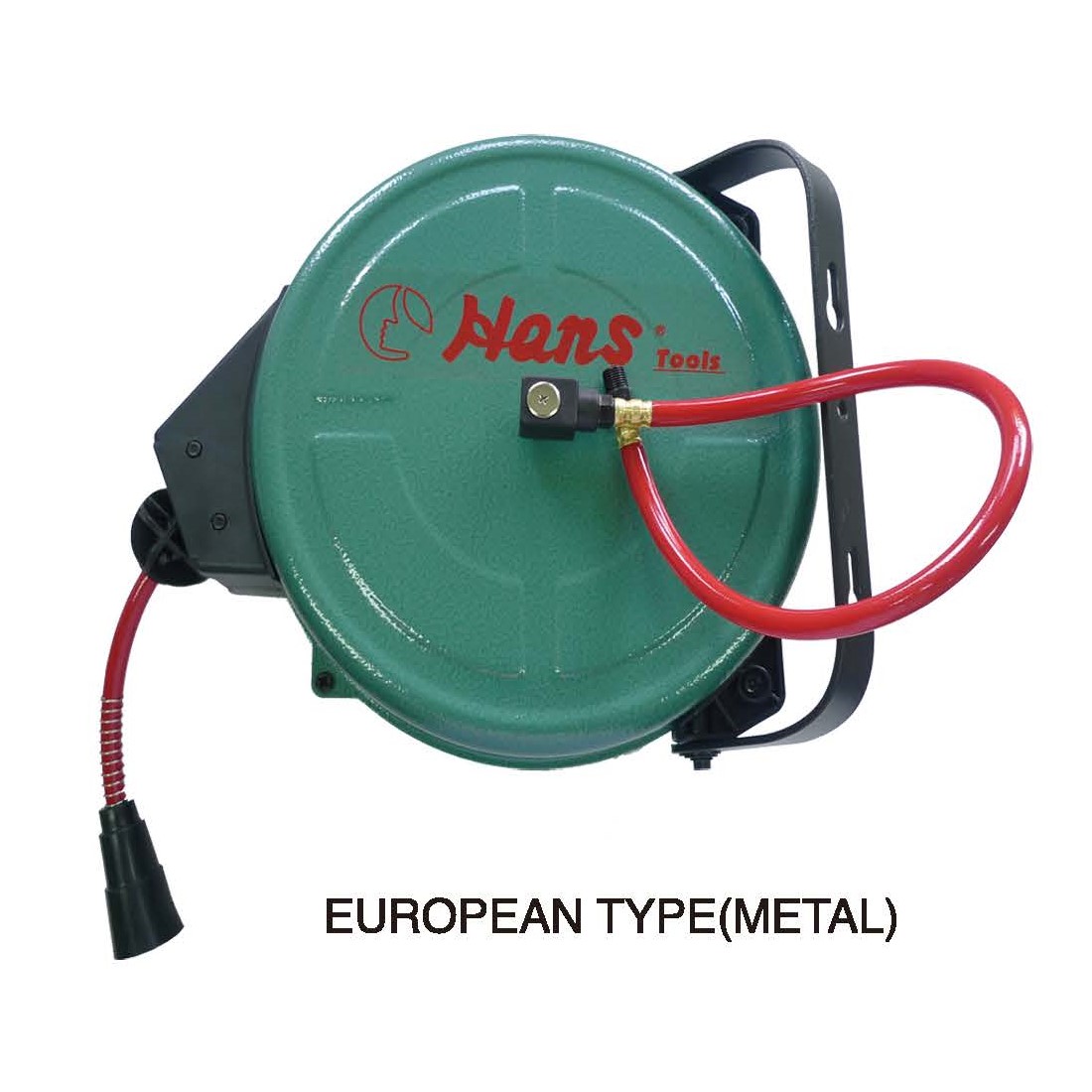

8606- Hose Reel- European Type (Metal Cover)

  • Hose Reel- European Type
  • Enrouleur de tuyau d’air
  • Zwijacz węża pneumatycznego
  • Luftschlauchtrommel
  • Enrollador de tubo de aire
  • بكرة خرطوم الهواء
  • รีลท่อลม
  • 氣動輪座
  • Impact Wrench- Pneumatic Power Instruction
  • Strong steel housing with thickness.
  • Automatic hose reel, Ratchet or free-running operation.
  • Supplied with wall/ ceiling mounted bracket.
  • Stopper : adjusting the length of hose remaining outside the reel when retracted.
  • High quality hose : polyurethane braid hose
  • Working temperature : -40℃~100℃
ITEM NO.HOSE I.D.
mm/inch
HOSE O.D.
mm
HOSE LENGTH
(outlet)
SIZE
(LxWxH)
FITTING THREAD SIZEporduct sizeicon1
KGS
24R0M-Surface Hand Socket (Manual)- 1/4" Drive
pcs
8606-65106.5/ 1/4"1010M310x265x1051/4"+1/4"5.51
8606-80098.0/ 5/16"129M310x265x1051/4"+1/4"5.51
8606-80158.0/ 5/16"1215M365x310x1151/4"+1/4"6.51
8606-95129.5/ 3/8"13.512M365x310x1151/4"+1/4"6.51
8606-65206.5/ 1/4"1020M400x330x1451/4"+1/4"81
8606-80208.0/ 5/16"1220M400x330x1451/4"+1/4"81
8606-95189.5/ 3/8"13.518M400x330x1451/4"+1/4"81
8607-65106.5/ 1/4"1010M260x295x901/4"+1/4"41
8607-80098.0/ 5/16"129M260x295x901/4"+1/4"41
8609-65106.5/ 1/4"1010M320x270x1201/4"+1/4"81
8609-80088.0/ 5/16"128M320x270x1201/4"+1/4"81
