8402M/A 1″ Dr. 12-Point Hand Socket | Heavy Industrial Cr-V
8402M/A Series: 1″ Drive 12-Point (Double Hex) Hand Socket
- Douilles 12 pans
- Gniazdo sześciokątne
- Sechskant
- Vasos de hexagonal
- مأخذ عرافة
- ซ็อกเก็ตฐานสิบหก
- DIN 3120, ISO 1174
- DIN 3124, ISO 2725-1
- ASME B 107.5M, ASME B 107.1
- 手動套筒 公制/ 英制 六角-十二角
- M- Stands for Metric/ A- Stands for Imperial

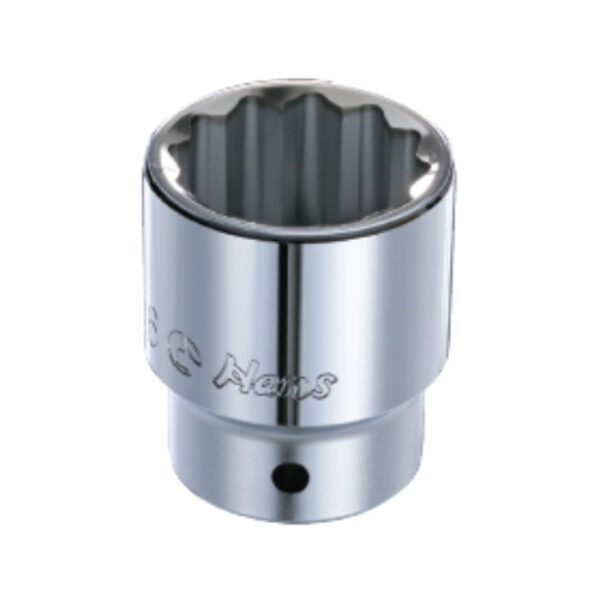

12-Point Hand Socket (Model 8402M/A Series) is an industrial-grade fastening component designed for heavy-duty manual applications. Manufactured by Hans Tools, this 12-Point Hand Socket features a 1″ square drive interface, making it compatible with high-leverage break-over bars and heavy-duty ratchets. Forged from high-tensile Chrome Vanadium (Cr-V) steel, it is engineered to meet the extreme torque requirements of the mining, marine, and oil & gas industries, where fastener integrity and tool reliability are mission-critical.
Feature
- An-Lock Drive® (Superb Torque) is built to do one thing: help you get that job done right. has only one thing on its mind: helping you get the job done with ease, safety, and quality. With its many smart features such as reversing levers, stronger grips, and deep-reaching heads, it can get to those difficult places or those hard-to-reach nuts or bolts with incredible precision. Made from Chrome Vanadium-CrV 6140 alloy steel, it is one of the strongest bits in the industry.
| 8400M (mm) | 8400A (inch) | D1 (mm) | D2 (mm) | L (mm) |  |  |
|---|---|---|---|---|---|---|
| 24 | ¹⁵ᐟ₁₆ | 38 | 43 | 61 | 340 | 5 |
| 27 | 1-¹ᐟ₁₆ | 41 | 43 | 61 | 360 | 5 |
| 28 | 43 | 43 | 61 | 370 | 5 | |
| 1-⅛ | 43 | 43 | 61 | 370 | 5 | |
| 30 | 1-³ᐟ₁₆ | 44 | 45 | 61 | 380 | 5 |
| 32 | 1-¼ | 46 | 45 | 61 | 400 | 1 |
| 33 | 1-⁵ᐟ₁₆ | 47 | 45 | 61 | 410 | 1 |
| 34 | 48 | 45 | 61 | 420 | 1 | |
| 35 | 1-⅜ | 48 | 45 | 61 | 420 | 1 |
| 36 | 1-⁷ᐟ₁₆ | 51 | 45 | 65 | 460 | 1 |
| 38 | 1-½ | 54 | 45 | 65 | 500 | 1 |
| 40 | 1-⁹ᐟ₁₆ | 55 | 45 | 65 | 520 | 1 |
| 41 | 1-⅝ | 57 | 45 | 70 | 570 | 1 |
| 42 | 59 | 50 | 70 | 710 | 1 | |
| 43 | 1-¹¹ᐟ₁₆ | 60 | 50 | 70 | 710 | 1 |
| 1-¾ | 63 | 50 | 70 | 780 | 1 | |
| 46 | 1-¹³ᐟ₁₆ | 65 | 50 | 76 | 870 | 1 |
| 48 | 1-⅞ | 67 | 54 | 76 | 950 | 1 |
| 50 | 2" | 70 | 54 | 80 | 1050 | 1 |
| 52 | 2-¹ᐟ₁₆ | 72 | 54 | 80 | 1100 | 1 |
| 54 | 2-⅛ | 74 | 57 | 80 | 1150 | 1 |
| 55 | 2-³ᐟ₁₆ | 75 | 57 | 80 | 1250 | 1 |
| 57 | 2-¼ | 78 | 57 | 80 | 1280 | 1 |
| 58 | 79 | 57 | 80 | 1300 | 1 | |
| 59 | 2-⁵ᐟ₁₆ | 80 | 57 | 80 | 1400 | 1 |
| 60 | 2-⅜ | 82 | 57 | 84 | 1500 | 1 |
| 2-⁷ᐟ₁₆ | 84 | 57 | 87 | 1530 | 1 | |
| 63 | 2-½ | 86 | 57 | 87 | 1550 | 1 |
| 65 | 88 | 57 | 87 | 1600 | 1 | |
| 67 | 2-⅝ | 90 | 57 | 90 | 1800 | 1 |
| 70 | 2-⅜ | 94 | 68 | 93 | 2100 | 1 |
| 71 | 95 | 68 | 93 | 2150 | 1 | |
| 2-¹³ᐟ₁₆ | 97 | 68 | 93 | 2350 | 1 | |
| 2-¹⁵ᐟ₁₆ | 100 | 68 | 97 | 2450 | 1 | |
| 75 | 100 | 68 | 97 | 2500 | 1 | |
| 77 | 3" | 102 | 68 | 103 | 2600 | 1 |
| 80 | 3-⅛ | 105 | 68 | 103 | 2800 | 1 |
| 85 | 3-⅜ | 114 | 86 | 105 | 3700 | 1 |
| 90 | 3-½ | 120 | 86 | 105 | 4100 | 1 |
| 95 | 3-¾ | 126 | 86 | 105 | 4600 | 1 |
| 100 | 3-¹⁵ᐟ₁₆ | 132 | 86 | 105 | 5000 | 1 |
Feature
12-Point Precision & High-Torque Cr-V Forging
The 8402M/A 12-Point Hand Socket is built for extreme mechanical resilience:
- 12-Point (Double Hex) Profile: The primary advantage of this 12-Point Hand Socket is its bi-hexagonal internal geometry. This allows for fastener engagement every 30 degrees, facilitating work in restricted areas where the swing space for heavy 1″ drive handles is limited.
- Heavy-Wall Industrial Construction: To prevent socket-wall expansion under extreme manual torque, the 8402 series features a thick-walled design. This ensures that the energy from the handle is transferred directly to the fastener without loss of power or risk of tool shattering.
- Forged Chrome Vanadium (Cr-V) Steel: Forged from premium-grade Cr-V and heat-treated to professional DIN/ISO standards, this socket offers superior hardness and long-term durability against the repetitive stress of heavy-duty MRO.
B2B Procurement & Heavy Industry ROI
- Essential for Large-Scale Infrastructure: The 12-Point Hand Socket is a staple for Bridge Construction, Railway Maintenance, and Ship Engine Repair where large-diameter Metric and SAE fasteners are the standard.
- High-Polish Mirror Chrome Finish: Every socket is finished with a high-grade chrome plating that resists rust and industrial chemical corrosion, ensuring the tool remains clean and functional in harsh outdoor environments.
- Metric (8402M) & SAE (8402A) Versatility: Hans Tools offers a comprehensive size range in both measurement systems, allowing procurement officers to standardize their heavy-duty tool cribs for international projects
