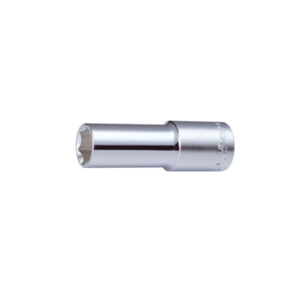

83300M/A 3⁄8″ Drive Deep Impact Socket -6 POINT
3/8″Drive Deep Impact Socket
- Douilles impact 6 pans
- Nasadki sześciokątne i podwójne sześciokątne
- Innensechskant und Doppelsechskant
- Vasos de hexagonal y doble hexágono
- سداسي ومآخذ سداسية مزدوجة
- หกเหลี่ยมและซ็อกเก็ตหกเหลี่ยมคู่
- An-Lock Drive
- DIN 3121- ISO 1174
- DIN 3129- ISO 2725-2
- 氣動長套筒 公制/英制 六角
- Impact Wrench- Pneumatic Power Instruction
| 83300M (mm) | 83300A (inch) | D1 mm | D2 mm | L mm |  g |  pcs |
|---|---|---|---|---|---|---|
| 6 | ¼ | 12 | 19 | 63 | 100 | 10 |
| 7 | 12 | 19 | 63 | 100 | 10 | |
| 8 | ⁵ᐟ₁₆ | 13 | 19 | 63 | 100 | 10 |
| ¹¹ᐟ₃₂ | 13 | 19 | 63 | 100 | 10 | |
| 9 | 15 | 19 | 63 | 100 | 10 | |
| 10 | ⅜ | 16 | 19 | 63 | 100 | 10 |
| 11 | ⁷ᐟ₁₆ | 17 | 19 | 63 | 100 | 10 |
| 12 | 18 | 19 | 63 | 100 | 10 | |
| 13 | ½ | 20 | 19 | 63 | 100 | 10 |
| 14 | ⁹ᐟ₁₆ | 21 | 19 | 63 | 120 | 10 |
| 15 | ¹⁹ᐟ₃₂ | 22 | 22 | 63 | 130 | 10 |
| 16 | ⅝ | 23 | 22 | 63 | 140 | 10 |
| ¹¹ᐟ₁₆ | 24 | 22 | 63 | 155 | 10 | |
| 17 | 24 | 22 | 63 | 155 | 10 | |
| 18 | 26 | 22 | 63 | 190 | 10 | |
| 19 | ¾ | 27 | 22 | 63 | 200 | 10 |
| 20 | ²⁵ᐟ₃₂ | 28 | 22 | 63 | 210 | 10 |
| 21 | ¹³ᐟ₁₆ | 29 | 22 | 63 | 220 | 10 |
| 22 | ⅞ | 31 | 22 | 63 | 240 | 10 |
| 23 | 32 | 23 | 63 | 250 | 10 | |
| 24 | 35 | 23 | 63 | 260 | 10 |
Feature
83300M (Metric) and 83300A (Imperial/SAE) Series represents the high-durability solution for recessed, close-quarters power fastening—a professional-grade 3/8″ Drive 6-Point Deep Impact Socket Line. Engineered to deliver the absolute “Mechanical Truth” when working deep inside compact engine compartments, complex machinery brackets, and specialized industrial assemblies, this series bridges the gap between bulky 1/2″ drive variants and lower-torque hand tool arrays.
Featuring an extended 63mm deep-well profile, the 83300 line easily clears long exposed studs, reach-restricted engine pullies, and deep wheel-lug paths. Forged from high-elasticity Chrome Molybdenum (Cr-Mo) steel and utilizing proprietary An-Lock Drive® technology, these sockets are purpose-built to absorb, distribute, and master the intense percussive blows of high-RPM pneumatic air guns and high-output cordless impact wrenches.
RELATED PRODUCTS
Related products
-
Socket /Impact Socket / Socket Wrench SetImpact Universal Joint | Pin Retainer ½” ¾” 1″ Dr. Cr-Mo
Read more -
-

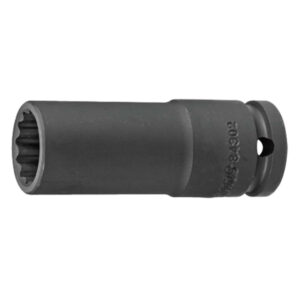

Socket /Impact Socket / Socket Wrench Set84300M/A Deep Impact Socket – (6 POINT)-½” Drive
