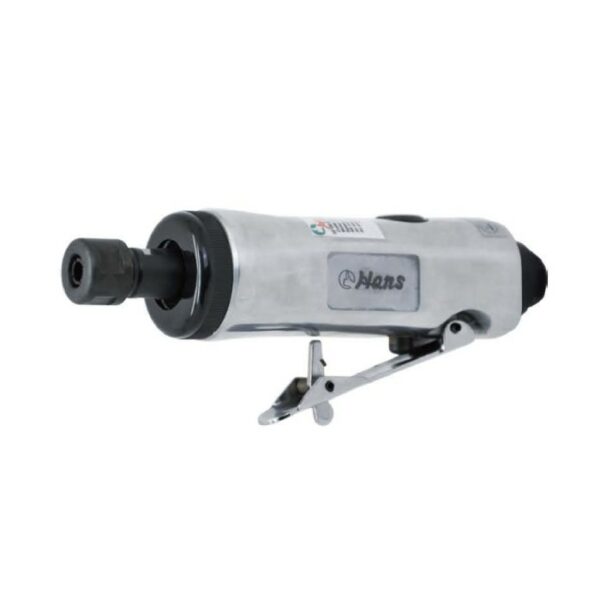

82901-05N/056N-Air Die Grinder

SKU 82901-05N Categories Pneumatic Impact Wrench/ Air Tools, Air Tools Tags Air Tools, Die Grinder

Air Die Grinder- Straight Pattern
Meuleuse coudée, droite
Szlifierka kątowa i prosta
Die Grinder-abgewinkelt und gerade
Amoladora de angular y recta
جلاخة قوالب بزاوية ومستقيمة
เครื่องบด – มุมเอียงและมุมขวา
氣動帶柄內徑研磨機
82901-05N/ 82901-056N
Impact Wrench- Pneumatic Power Instruction
82901-05N/056N Air Die Grinder is a straight-pattern pneumatic grinder for precision grinding, deburring and polishing of metal parts. Its compact body and slim nose make it suitable for work in tight spaces such as engine bays, brackets and castings, where larger tools cannot reach. It is part of the 82901 series and can be paired with mounted points, carbide burrs and other standard die grinder accessories.

A straight air die grinder is the better choice for detailed work and polishing, while large angle grinders are used mainly for heavy cutting and rough grinding.

ITEM NO.	COLLECT SIZE	MOTOR H.P.	EXHAUST	FREE SPEED R.P.M.	AVG.DLR CONSUMPTION CFM
82901-05	¼"	0.5	REAR	22000	12.5
82901-056	6mm	0.5	REAR	22000	12.5
82901-05N	¼"	0.5	REAR	22000	12.5
82901-056N	6mm	0.5	REAR	22000	12.5

ITEM NO.	AIR PRESSURE BAR (PSI)	AIR INLET INCH	AIR HOSE ID	OVERALL LENGTH inch/mm	KGS	pcs
82901-05	90 PSI 6.2 BAR	¼	¼	7"/ 175	0.7	20
82901-056	90 PSI 6.2 BAR	¼	¼	7"/ 175	0.7	20
82901-05N	90 PSI 6.2 BAR	¼	¼	7"/ 175	0.7	20
82901-056N	90 PSI 6.2 BAR	¼	¼	7"/ 175	0.7	20

Feature

Straight-pattern air die grinder for precision grinding and deburring in confined areas
Slim body design for good control and easy handling around brackets, panels and castings
Accepts standard mounted grinding points, carbide burrs and rotary accessories (matching the collet size used in the 82901 series)
Suitable for light grinding, edge deburring, weld cleaning and surface preparation on metal parts
Designed for use with a regulated compressed air supply in professional workshops
Can be combined with die grinder mounted stones from your 86901-14 kit and similar assortments
