82901-03N/ 036N Air Die Grinder – Short-Body Straight Pattern

SKU 82901-03N Categories Pneumatic Impact Wrench/ Air Tools, Air Tools Tags Air Tools, Die Grinder

82901-03N Air Die Grinder – Short-Body Straight Pattern, 1/4″ Collet
82901-03N Meuleuse pneumatique – modèle droit, corps court, pince 1/4″
82901-03N Szlifierka pneumatyczna – wersja prosta, krótki korpus, uchwyt 1/4″
82901-03N Pneumatischer Die Grinder – gerade Ausführung, kurzer Körper, Spannzange 1/4″
82901-03N Amoladora neumática de troqueles – recta, cuerpo corto, pinza 1/4″
‎82901-03N جلاخة قوالب هوائية مستقيمة بهيكل قصير ومشبك ‎1/4″‎
82901-03N เครื่องเจียรไดอะแบบลม ทรงตรง ตัวเครื่องสั้น คอลเล็ต 1/4″
82901-03N 短身直型氣動帶柄研磨機－¼” 夾頭
82901-03N/ 82901-036N
Impact Wrench- Pneumatic Power Instruction

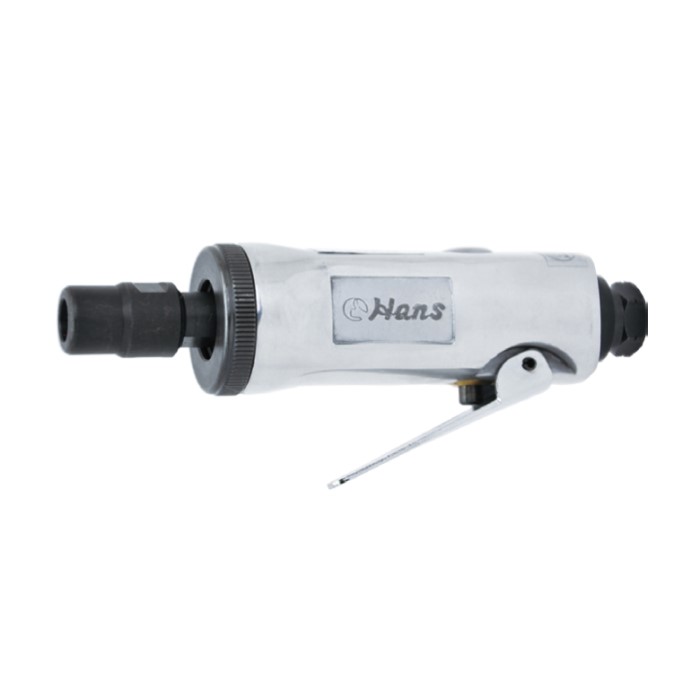

82901-03N Air Die Grinder is a short-body straight-pattern pneumatic grinder for precision grinding, deburring and polishing of metal parts. With a 0.3 HP motor and 25,000 RPM free speed, it delivers fast, controlled material removal while the compact 5.6″ (140 mm) overall length and 0.4 kg weight make it easier to use in tight spaces. Straight air die grinders are ideal for fine work and finishing, while larger angle grinders are used for heavy cutting and rough grinding.

ITEM NO.	COLLECT SIZE	MOTOR H.P.	EXHAUST	FREE SPEED R.P.M.	AVG.DLR CONSUMPTION CFM
82901-03	¼"	0.3	REAR	25000	10
82901-036	6mm	0.3	REAR	25000	10
82901-03N	¼"	0.3	REAR	25000	10
82901-036N	6mm	0.3	REAR	25000	10

ITEM NO.	AIR PRESSURE BAR (PSI)	AIR INLET INCH	AIR HOSE ID	OVERALL LENGTH inch/mm	KGS	pcs
82901-03	90 PSI 6.2 BAR	¼	¼	6.2"/ 155	0.6	20
82901-036	90 PSI 6.2 BAR	¼	¼	6.2"/ 155	0.6	20
82901-03N	90 PSI 6.2 BAR	¼	¼	5.6"/ 140	0.4	20
82901-036N	90 PSI 6.2 BAR	¼	¼	5.6"/ 140	0.4	20

Key Features

Short-body straight air die grinder for precision work in confined spaces
0.3 HP motor with 25,000 RPM free speed for light grinding, deburring and polishing
1/4″ collet size – suitable for standard mounted points and rotary accessories
Rear exhaust directs air away from the work area for better comfort
Average air consumption: approx. 10 CFM at rated load
Operating pressure: 6.2 bar / 90 PSI for optimum performance
Overall length: 5.6″ (140 mm) and net weight: 0.4 kg – shorter and lighter than standard 82901-03 for better maneuverability
Air inlet: 1/4″, air hose ID: 1/4″, matching common workshop air lines
Designed for grinding, edge deburring, weld cleaning and surface preparation on metals
