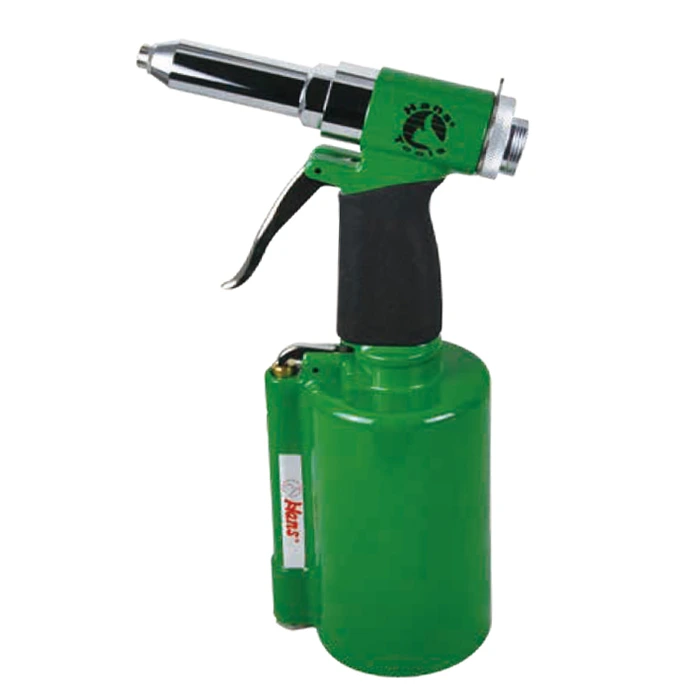

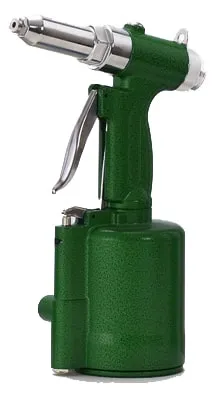

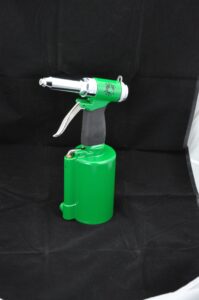

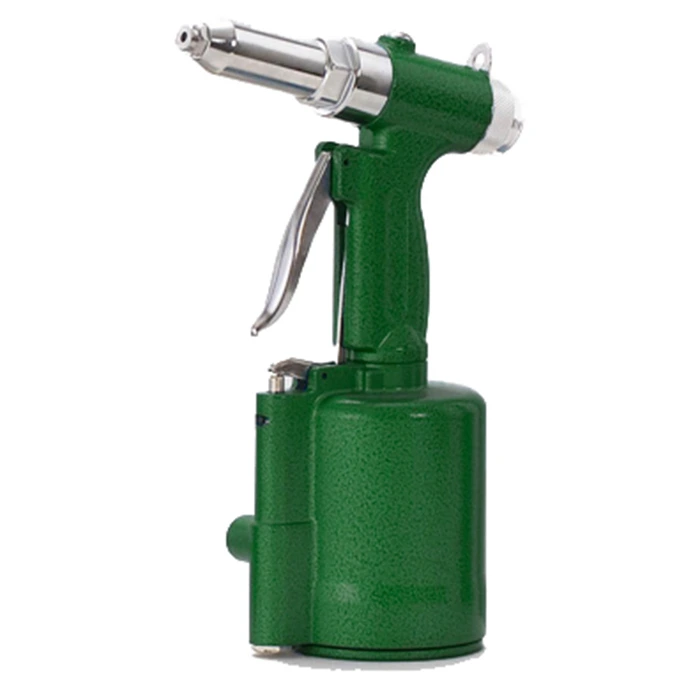

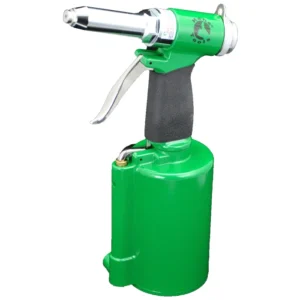

81976 Air Hydraulic Riveter | 15720N Force

• Accepts 2.4mm, 3.2mm, 4.0mm, 4.8mm, and 6.4mm rivets (³⁄₃₂”–¼”)
• Handles stainless rivets up to 4.8mm
• Traction force: 15,720 N for heavy-duty riveting tasks
• Tool stroke: 14 mm for strong, clean riveting results
• Rugged body with anti-slip grip and durable composite design
• Ideal for industrial lines, metal fabrication, trailers, HVAC, and chassis work
• Designed for continuous operation in high-throughput environments
• Operating pressure: 6.3 bar (90 psi)
• Made in Taiwan for long-lasting quality and reliability

• What is the difference between KGF and N in these ratings? Both measure the “pulling power.” 1045 KGF is approx. 10,248 Newtons. Therefore, the 81976 is significantly more powerful (15,720N), making it necessary for larger 6.4mm rivets.
• Why choose the 81976 over the 81974? If your work involves 6.4mm (1/4″) structural rivets or heavy-gauge stainless steel, the 81976 is required. For standard bodywork and 4.8mm rivets, the 81974 is lighter and faster for all-day use.
• Does it require special air treatment? Yes. For industrial integrity, a standard FRL (Filter-Regulator-Lubricator) unit should be used to ensure the hydraulic seals remain lubricated and the air is moisture-free.
• Are the nosepieces interchangeable? Yes. Both models come with multiple nosepieces to match the rivet diameters listed in their capacity ranges.

Certified by TÜV Rheinland Taiwan (CE) for quality and safety compliance – trusted in global workshops and industrial facilities.
