6402M/A ¾” Drive Hand Socket Manual 12-Point | Cr-V
6402M/A: ¾” Drive 12-Point Hand Socket (Manual) with An-Lock Drive®
- Douilles 12 pans
- Gniazdo sześciokątne
- Sechskant
- Vasos de hexagonal
- مأخذ عرافة
- ซ็อกเก็ตฐานสิบหก
- DIN 3120, ISO 1174
- DIN 3124, ISO 2725-1
- ASME B 107.5M, ASME B 107.1
- 手動套筒 公制/ 英制 六角-十二角

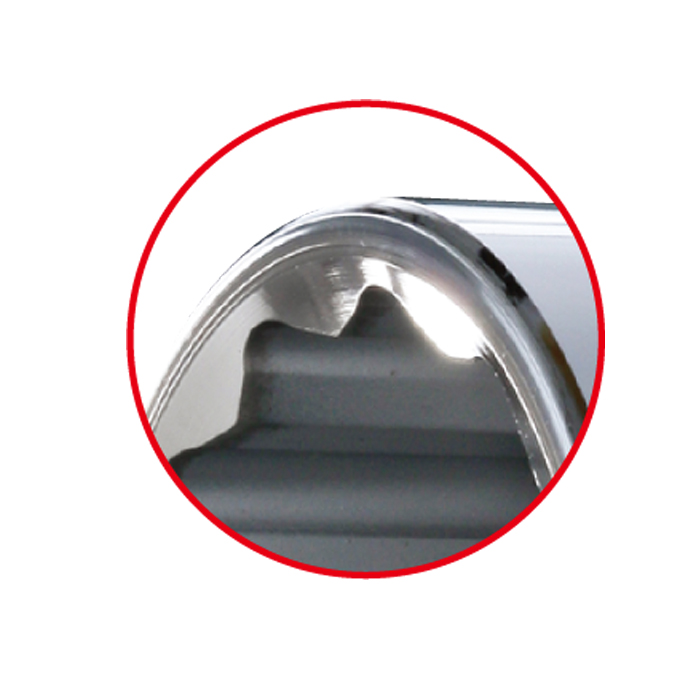

- An-Lock Drive®
| 6402M (mm) | 6402A (inch) | D1 (mm) | D2 (mm) | L (mm) |  |  |
|---|---|---|---|---|---|---|
| 14 | 23.2 | 34 | 50 | 250 | 5 | |
| 16 | 25.2 | 34 | 50 | 260 | 5 | |
| 17 | ¹¹ᐟ₁₆ | 27.1 | 34 | 50 | 270 | 5 |
| 18 | 28.2 | 34 | 50 | 270 | 5 | |
| 19 | ¾ | 29.2 | 34 | 50 | 280 | 5 |
| 20 | ²⁵ᐟ₃₂ | 30.2 | 34 | 50 | 280 | 5 |
| 21 | ¹³ᐟ₁₆ | 31.2 | 34 | 50 | 280 | 5 |
| 22 | ⅞ | 32.2 | 36 | 50 | 290 | 5 |
| 23 | 33.2 | 36 | 50 | 300 | 5 | |
| 24 | ¹⁵ᐟ₁₆ | 34.2 | 36 | 50 | 300 | 5 |
| 25 | 1" | 36 | 35 | 52 | 310 | 5 |
| 26 | 37 | 36 | 52 | 320 | 5 | |
| 27 | 1-¹ᐟ₁₆ | 38 | 36 | 52 | 330 | 5 |
| 28 | 40 | 38 | 52 | 330 | 5 | |
| 29 | 1-⅛ | 40 | 38 | 52 | 340 | 5 |
| 30 | 1-³ᐟ₁₆ | 42 | 38 | 54 | 370 | 5 |
| 31 | 43 | 38 | 54 | 380 | 5 | |
| 32 | 1-¼ | 44 | 38 | 56 | 420 | 5 |
| 33 | 1-⁵ᐟ₁₆ | 46 | 38 | 56 | 440 | 5 |
| 34 | 47 | 42 | 56 | 470 | 5 | |
| 35 | 1-⅜ | 48 | 42 | 58 | 490 | 5 |
| 36 | 1-⁷ᐟ₁₆ | 50 | 42 | 58 | 510 | 5 |
| 38 | 1-½ | 52 | 45 | 60 | 550 | 5 |
| 40 | 1-⁹ᐟ₁₆ | 54 | 45 | 60 | 580 | 1 |
| 41 | 1-⅝ | 56 | 45 | 64 | 590 | 1 |
| 42 | 57 | 45 | 64 | 600 | 1 | |
| 43 | 1-¹¹ᐟ₁₆ | 58 | 45 | 64 | 620 | 1 |
| 44 | 59 | 48 | 64 | 670 | 1 | |
| 45 | 1-¾ | 61 | 48 | 66 | 710 | 1 |
| 46 | 1-¹³ᐟ₁₆ | 62 | 48 | 68 | 730 | 1 |
| 48 | 1-⅞ | 64 | 48 | 70 | 770 | 1 |
| 1-¹⁵ᐟ₁₆ | 66 | 48 | 70 | 790 | 1 | |
| 50 | 68 | 48 | 70 | 790 | 1 | |
| 51 | 2" | 68 | 48 | 72 | 820 | 1 |
| 52 | 2-¹ᐟ₁₆ | 70 | 48 | 72 | 860 | 1 |
| 54 | 2-⅛ | 72 | 48 | 76 | 910 | 1 |
| 55 | 2-³ᐟ₁₆ | 74 | 48 | 76 | 1030 | 1 |
| 57 | 2-¼ | 76 | 48 | 76 | 1100 | 1 |
| 58 | 78 | 48 | 76 | 1250 | 1 | |
| 59 | 2-⁵ᐟ₁₆ | 78 | 48 | 78 | 1350 | 1 |
| 60 | 2-⅜ | 80 | 48 | 78 | 1450 | 1 |
| 2-⁷ᐟ₁₆ | 82 | 50 | 82 | 1480 | 1 | |
| 63 | 2-½ | 84 | 50 | 82 | 1600 | 1 |
| 65 | 2-⁹ᐟ₁₆ | 86 | 60 | 85 | 1750 | 1 |
| 2-⅝ | 88 | 60 | 88 | 1700 | 1 | |
| 70 | 2-¾ | 92 | 60 | 90 | 1950 | 1 |
Feature

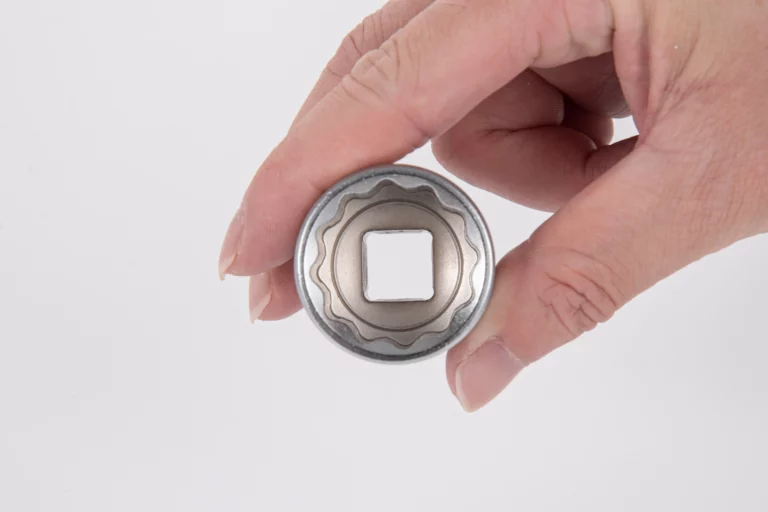

6402M (Metric) and 6402A (Imperial/SAE) Series represents a massive, professional-grade solution for heavy-duty manual turning tasks—a premium 3/4″ Drive Hand Socket (Manual) 12-Point. Meticulously engineered to deliver the absolute “Mechanical Truth” across commercial vehicle garages, structural steel yards, shipyard maintenance cells, and heavy processing plants, this standard-depth socket handles punishing breakdown loads without splitting.
Unlike thin-walled light sockets that deform under heavy leverage, the 6402 series uses a thick, rigid drop-forged Chrome Vanadium (Cr-V 6140) alloy steel core. Built strictly for manual hand tools like breaker bars and ratchets, it incorporates Hans’ proprietary An-Lock Drive® technology. This setup delivers high radial torque transfer while protecting large, expensive industrial fasteners from distortion.
