4630M- Socket Wrench Set-½” Drive- 30 PCs

Coffret douilles outillés
Zestaw kluczy nasadowych
Steckschlüssel-Satz
Juego de llaves vaso
مجموعة وجع المقبس
ชุดประแจบ๊อกซ์
套筒扳手組
Steel Material Case
Plastic Tray- What is the difference of EVA Foam and Plastic Tray
M Stands for Metric
A Stands for Imperial
Ratchet Handle Information Please find Handle Introduction-(Ratchet & Screwdriver)

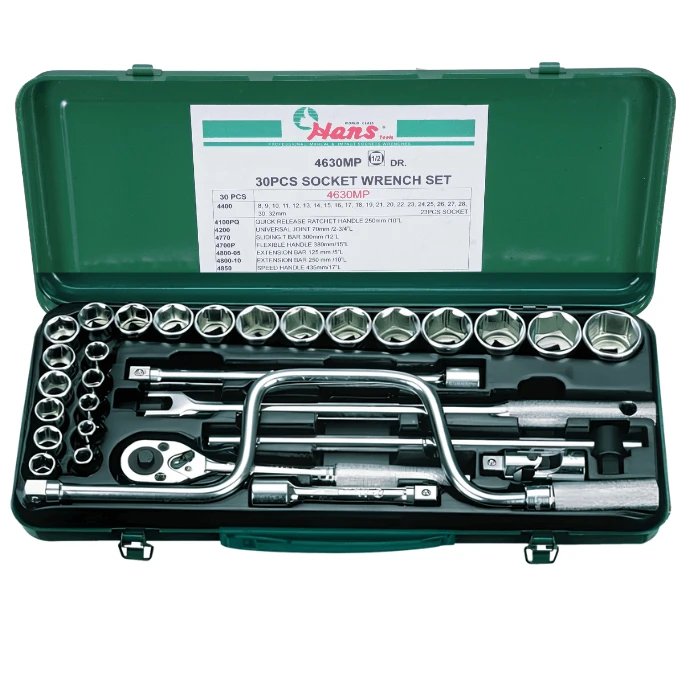

4630M: ½" Drive 30-Piece Metric Socket Wrench Set (N-Series)

30PCS	4630M
4400M	HAND SOCKET 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32mm 23PCS
4100NQ	QUICK RELEASE RATCHET HANDLE 250mm/ 10"
4700	FLEXIBLE HANDLE 380mm/ 15"
4850	SPEED HANDLE 420mm/ 16-1/2"
4770-12	SLIDING "T" HANDLE 300mm/ 12"
4800-5/-10	EXTENSION BAR 125mm/ 5" 250mm/ 10"
4200	UNIVERSAL JOINT 70mm/ 2-¾"
METAL CASE : 440x185x50mm, GW= 27KGS/ 4SETS = 1'

30PCS	4630-2M
4402M	HAND SOCKET 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32mm 23PCS
4100NQ	QUICK RELEASE RATCHET HANDLE 250mm/ 10"
4700	FLEXIBLE HANDLE 380mm/ 15"
4850	SPEED HANDLE 420mm/ 16-½"
4770-12	SLIDING "T" HANDLE 300mm/ 12"
4800-5/-10	EXTENSION BAR 125mm/ 5" 250mm/ 10"
4200	UNIVERSAL JOINT 70mm/ 2-¾"
METAL CASE : 440x185x50mm, GW= 27KGS/ 4SETS = 1'

4630M Set Optimization

Q: Why does this set use a 24-tooth N-series ratchet?
- A: For 1/2″ drive work, strength is the priority. The 4120N uses larger, deeper gear teeth that can withstand massive torque loads without stripping, and the knurled handle ensures your grip never fails in oily conditions.
Q: When should I use the Speed Handle over the Ratchet?
- A: Once a bolt is loosened, the Speed Handle is the fastest way to remove it. It mimics the speed of a power tool but maintains the “feel” and safety of a hand tool.
Q: Is the Flexible Handle strong enough for 32mm bolts?
- A: Yes. The 380mm length is engineered to deliver the high leverage required for the 30mm and 32mm sockets found on axle nuts and heavy machinery.
Q: Maintenance:
- A: Keep the ratchet gear and universal joint lubricated. Because the N-series handle is knurled, use a wire brush to clean any impacted grease from the grip to maintain the non-slip performance.
