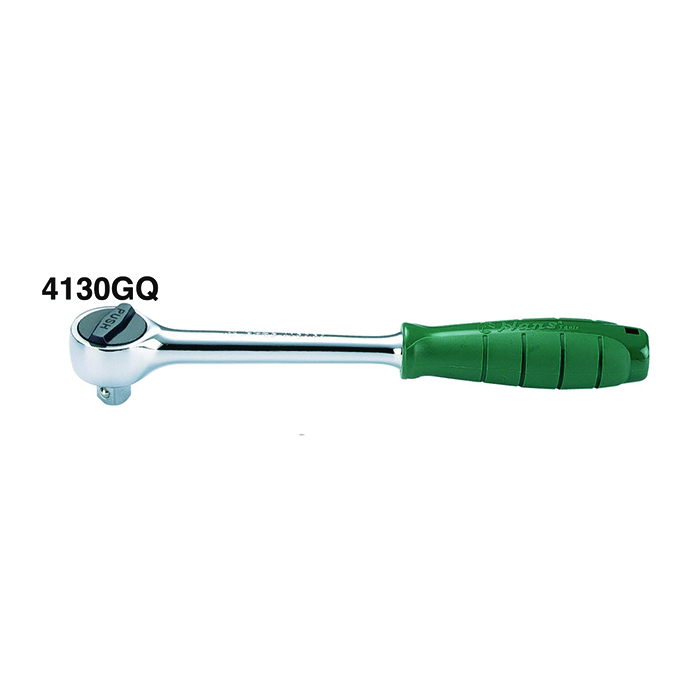

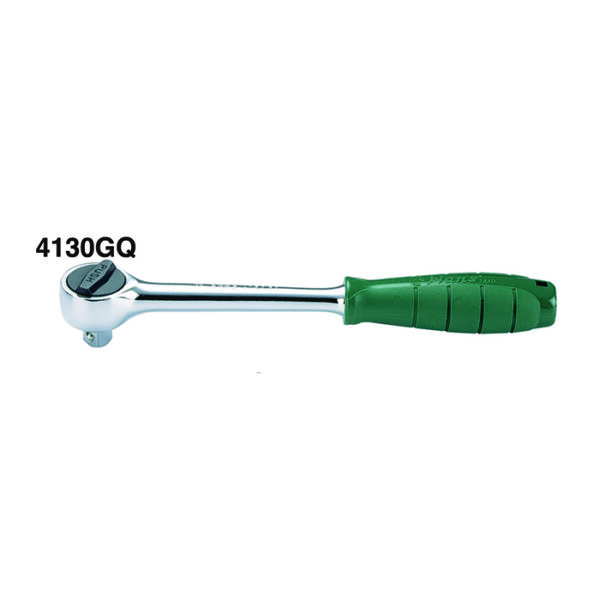

4130GQ-Quick Release Ratchet Handle(45 Teeth)-½” Drive

Material Engineering & Structural Truth

• Integrated Unified Control Head: The defining advantage of the 4130GQ is its co-axial mechanical design. Shifting the outer thumb lever ring alternates the internal dual-pawl direction, while pressing the flush button situated exactly inside that ring’s center releases the socket locking ball. This single-point access system eliminates a secondary drilled port hole in the head housing, protecting the structural integrity of the main frame enclosure.
• Balanced 45-Tooth Gear Configuration: The internal gear profile uses a medium-tooth 45-count layout that balances arc recovery and tooth thickness. Delivering a clean 8° swing arc, the gear tracks feature deep, broad teeth profiles that handle sudden breakaway force profiles up to 512 N·m without stripping or slipping out of alignment.
• G-Series Molded Structural Grip: The handle uses a premium injection-molded industrial polymer composite. This lightweight shell lowers overall hand fatigue while providing complete protection against degradation when exposed to common workshop chemicals like brake cleaners, gasoline, motor oils, and active hydraulic fluids.
• Drop-Forged Chrome Vanadium Matrix: The entire primary wrench body is forged from premium Chrome Vanadium steel blocks, then heat-treated in a computer-controlled environment. This ensures optimal core tensile strength, preventing handle beam deflection or head box spreading when applying significant manual leverage to stubborn fasteners.
