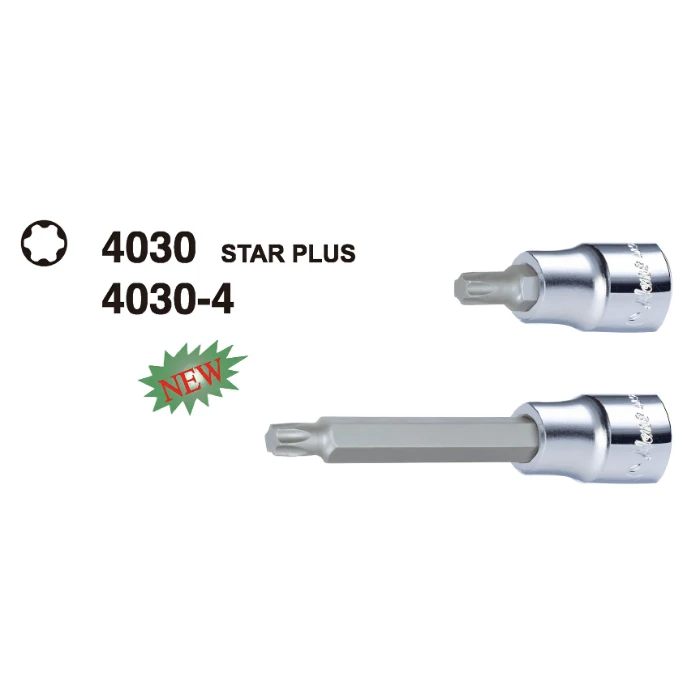

4030-4IP Star Plus Bit Socket | ½” Drive 100mm Long
4030-4IP Series: ½” Drive 100mm Long-Pattern Star Plus Bit Socket
- Douilles tournevis para tornillos
- śrubokręt nasadowy
- Steckschlüssel-Schraubendreher
- Vasos destornilladores
- مفك البراغي
- ไขควงปากแบน
- Up to HRC 60º Bit Driver made by W/S2 Steel Material
- DIN 3120- ISO 1174
- LOW Torque
- Understanding Bit Sockets: A Smart Combination of Power and Precision
Star Plus Bit Socket (Model 4030-4IP Long Series) is an industrial-tier 1/2″ square drive extended manual fastening solution engineered to reach deeply recessed, high-torque 6-lobe hardware. Purpose-built for specialized commercial truck chassis setups, recessed engine block assemblies, modern drivetrain overhauls, and heavy automated facility machinery, this 100mm long-reach instrument integrates a high-efficiency Star Plus (Torx Plus / IP Suffix) Profile into a rigid two-piece configuration.
4030-4IP Series: ½" Drive 100mm Long-Pattern Star Plus Bit Socket
| 4030 | 4030 L : mm | 4030 g | 4030-4 L : mm | 4030-4 g | pcs |
|---|---|---|---|---|---|
| IP20 | 60 | 60 | 100 | 110 | 10 |
| IP25 | 60 | 60 | 100 | 110 | 10 |
| IP27 | 60 | 60 | 100 | 110 | 10 |
| IP30 | 60 | 60 | 100 | 110 | 10 |
| IP40 | 60 | 60 | 100 | 110 | 10 |
| IP45 | 60 | 64 | 100 | 115 | 10 |
| IP50 | 60 | 74 | 100 | 115 | 10 |
| IP55 | 60 | 96 | 100 | 120 | 10 |
| IP60 | 60 | 122 | 100 | 160 | 10 |
| IP70 | 60 | 170 | 100 | 180 | 10 |
Feature
Why should I choose the 100mm long 4030-4IP Star Plus socket over combining a short tool with an extension? Connecting short bit sockets to separate extension bars introduces multiple shifting mechanical connection points, creating loose play, tool leaning, and rotational power loss. Under the massive torque levels demanded by Star Plus hardware, separate components can twist or slip out entirely. The Hans 4030-4IP provides a continuous, solid 100mm straight-line shank layout that runs directly from the drive hub to the tip, ensuring a rigid, deflection-free manual torque path.
What are the practical advantages of the mirror and satin split finish layout on this socket base? The 4030-4IP socket base utilizes a specialized split Dual Finish design. The upper portion has a glass-smooth Mirror Finish that shrugs off harsh grease, lubricants, and automotive fluids for fast wiping. The lower portion integrates a texturized Satin Finish band that provides essential fingertip friction, allowing you to securely hold and spin the tool by hand when working in greasy workshop environments.
