3026-4 Hex Bit Socket | ⅜” Drive 100mm Long Series

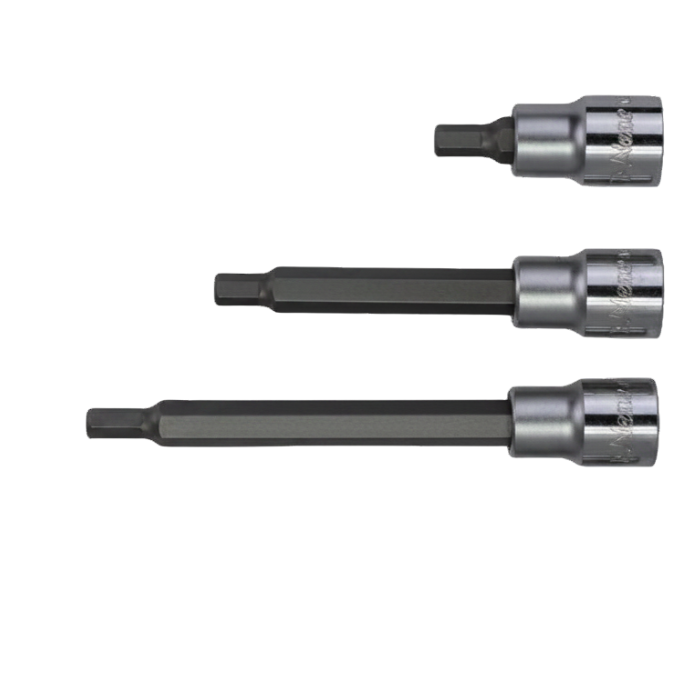

3026-4 Series: ⅜” Drive 100mm Long-Pattern Hex Bit Socket
- Douilles tournevis para tornillos
- śrubokręt nasadowy
- Steckschlüssel-Schraubendreher
- Vasos destornilladores
- مفك البراغي
- ไขควงปากแบน
- DIN3120- ISO 1174
- DIN 7422
3026M/A is an industrial-grade Internal Hex Bit Socket engineered for high-torque mechanical assembly and automotive MRO. Hex Bit Socket (Model 3026-4 Long Series) is an industrial-tier 3/8″ square drive manual fastening instrument engineered for automotive engine cylinder head maintenance, machinery recess assemblies, and deep-pocket socket routing.
| 3026M mm | 3026A inch | 3026 L：mm | 3026 g | 3026-4 L：100mm | 3026-6 L:140mm |  pcs |
|---|---|---|---|---|---|---|
| 3 | ⅛ | 48 | 48 | 60(g) | 68(g) | 10 |
| 4 | ⁵ᐟ₃₂ | 48 | 50 | 62(g) | 70(g) | 10 |
| 5 | ³ᐟ₁₆ | 48 | 50 | 62(g) | 70(g) | 10 |
| 5.5 | ⁷ᐟ₃₂ | 48 | 52 | 64(g) | 70(g) | 10 |
| 6 | ¼ | 48 | 54 | 66(g) | 74(g) | 10 |
| 7 | ⁹ᐟ₃₂ | 48 | 56 | 68(g) | 76(g) | 10 |
| 8 | ⁵ᐟ₁₆ | 48 | 56 | 70(g) | 76(g) | 10 |
| 9 | ¹¹ᐟ₃₂ | 50 | 64 | 76(g) | 84(g) | 10 |
| 10 | ⅜ | 50 | 66 | 78(g) | 86(g) | 10 |
| 11 | 50 | 70 | 80(g) | 88(g) | 10 | |
| 12 | ⁷ᐟ₁₆ | 50 | 75 | 88(g) | 100(g) | 10 |
Feature
What is the design purpose of the two-piece construction on the 3026-4 hex bit socket?
A single-piece steel socket often sacrifices properties; it is either too brittle at the tip or too soft at the drive square. The Hans 3026-4 utilizes a premium two-piece engineering configuration. The bit is crafted from high-rigidity S2 tool steel to resist twisting and wearing inside the bolt head, while the base is forged from high-impact Chrome Vanadium (Cr-V) steel to manage high mechanical loads from ratchets and breaker bars smoothly.
Can these 100mm long bit sockets be used with pneumatic impact guns?
No. The 3026-4 long series is explicitly a hand tool asset designed for manual ratchets, sliding T-handles, and torque wrenches. Attempting to use high-vibration pneumatic or cordless impact guns on extended 100mm bits can cause structural failure or shatter the S2 tool steel bit due to the intense percussive shock waves.
