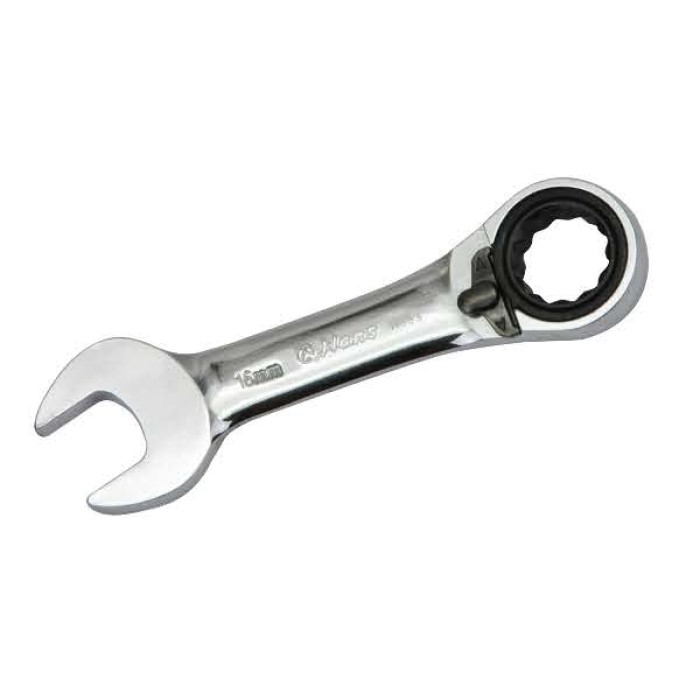

1166S Stubby Open End Gear Ring Wrench | 72-Teeth Metric
1166S- Open-End Gear Ring Wrench- Stubby- (Reversible)
- Clés mixtes courte à cliquet réversible
- Klucz płasko-oczkowy z grzechotką z żywą głowicą
- Ratschen-Kombinationsschlüssel mit kurzem Drehkopf
- Llaves combinadas de carraca reversible serie corta
- وجع مجموعة سقاطة رأس قصيرة العمر
- ประแจแหวนข้างปากตายแบบสั้น
- 短柄雙向活頭齒輪梅花複合扳手
- An-Lock Drive
- Wrench all we can support
| 1166S (mm) | W (mm) | W1 (mm) | T (mm) | T1 (mm) | L (mm) |  g |  pcs |
|---|---|---|---|---|---|---|---|
| 6 | 17.1 | 16.7 | 7.4 | 4.7 | 93 | 28 | 12 |
| 7 | 17.1 | 16.7 | 7.4 | 4.7 | 93 | 28 | 12 |
| 8 | 17.1 | 16.7 | 7.4 | 4.7 | 93 | 28 | 12 |
| 9 | 21 | 21 | 7.4 | 5.5 | 95.4 | 43 | 12 |
| 10 | 21 | 21 | 7.4 | 5.5 | 95.4 | 43 | 12 |
| 11 | 23.8 | 25 | 8.7 | 6.2 | 105 | 60 | 12 |
| 12 | 23.8 | 25 | 8.7 | 6.2 | 105 | 60 | 12 |
| 13 | 24.9 | 27.5 | 8.7 | 6 | 106.4 | 65 | 12 |
| 14 | 27 | 29 | 8.7 | 7 | 115 | 80 | 12 |
| 15 | 29.9 | 33 | 10.3 | 7.5 | 122 | 110 | 12 |
| 16 | 29.9 | 33 | 10.3 | 7.5 | 122 | 110 | 12 |
| 17 | 31.9 | 34.9 | 10.3 | 8 | 125.4 | 125 | 12 |
| 18 | 34.4 | 38.9 | 10.6 | 8.8 | 138 | 160 | 12 |
| 19 | 34.4 | 38.9 | 10.6 | 8.8 | 138 | 160 | 12 |
Feature
- Ultra-Short “Stubby” Beam: The defining professional feature. The reduced handle length allows for “Absolute” access in narrow channels where a standard wrench would hit surrounding components. This makes it the primary choice for modern compact engine bays and industrial equipment maintenance.
- Precision 72-Tooth Ratcheting Gear: Features a high-density internal gear system that provides a fine 5° swing arc. This allows for continuous rotation in spaces where handle movement is limited to less than an inch.
- 12-Point (Bi-Hex) Box End: The ratcheting head features a 12-point profile for rapid fastener engagement, ensuring 100% torque transmission while protecting the fastener corners from rounding.
- Forged Chrome Vanadium (Cr-V) Metallurgy: Forged from premium heat-treated Cr-V steel. Despite its small size, the 1166S is engineered to exceed DIN 3113 standards for structural torque resilience.
B2B Procurement & Workshop ROI
- The “Zero-Clearance” Standard: This Stubby Open End Gear Ring Wrench is the primary choice for Precision Technicians because it eliminates the need to remove obstructing parts just to reach a single fastener.
- Maximized Tool Lifecycle: The 72-tooth gear is hardened to resist tooth shearing under high loads, ensuring the tool remains reliable across thousands of repair cycles.
- Standardized Metric Loadout: Available in a comprehensive range of metric sizes, allowing workshop managers to standardize on a high-durability compact tool system.
