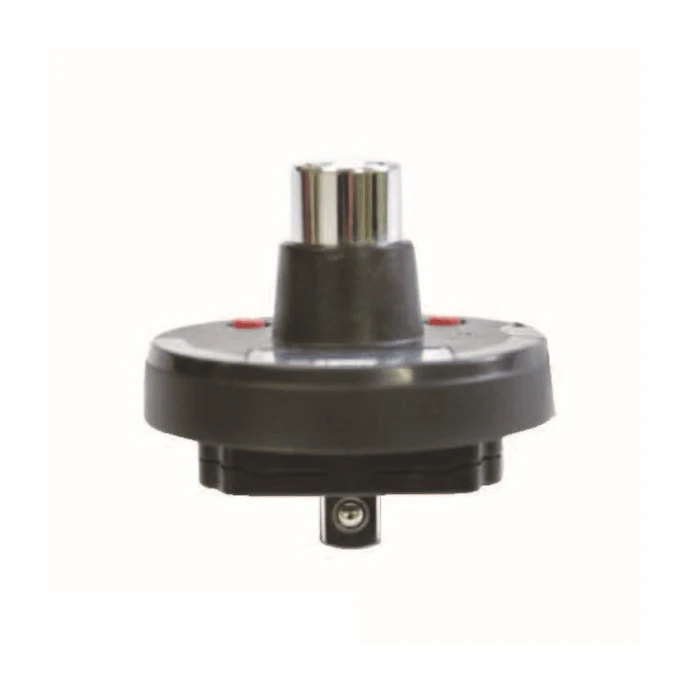

4878- ½” Dr. Digital Torque Angle Adaptor | ±2% Accuracy
½” Drive Digital Torque Angle Adaptor (Torque-to-Yield Specialist)
- Rapporteur numérique pour serrages couple et angulaires
- Cyfrowy adapter momentu obrotowego z funkcją pomiaru kąta
- Digital-Drehmoment-Adapter mit Winkelmessfunktion
- Goniómetro digital para aprietes par y ángulo
- محول عزم الدوران الرقمي مع وظيفة عداد الزاوية
- ตัวแปลงแรงบิดแบบดิจิตอลพร้อมฟังก์ชันวัดมุม
- 數位扭力接頭 (角度儀)
- Socket Adaptor vs. Universal Joint: Know the Difference Before You Buy
| ITEM NO. | RESOLUTION N · m | DRIVE | TORQUE N · m | LENGTH mm |
|---|---|---|---|---|
| 4878A-135 | 0.1 | 1/2" DR. | 6.8-135 | 80 |
| 4878A-200 | 0.1 | 1/2" DR. | 10-200 | 80 |
| 4878A-340 | 0.1 | 1/2" DR. | 17-340 | 80 |
Feature
- Why do I need the “Angle” function? Many modern engine bolts (Cylinder heads, connecting rods) are designed to be stretched. These are called “stretch bolts.” You cannot measure stretch with torque alone; you must use degrees of rotation. This adaptor makes that process digital and easy.
- Does this replace my torque wrench? It turns any standard 1/2″ ratchet or breaker bar into a digital torque and angle wrench. It is a cost-effective and space-saving alternative to buying a dedicated electronic torque wrench.
- Can I use this for “Audit” work? Yes. In “Peak” mode, the device will show you exactly how much torque was applied to a bolt, allowing for quality control checks in industrial assembly.

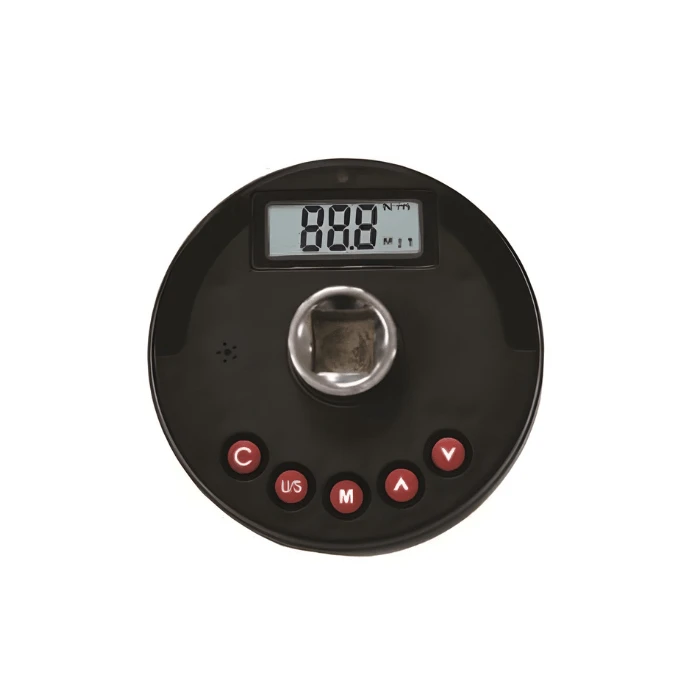

- How do I reset the angle to zero? The device features a “Zero-Set” button. Once you reach your initial torque, you press the button to start the angle count from $0^\circ$.
