CC-3 Single-Direction Pull Clamp | 3 Ton Capacity

CC-3: Single-Direction Pull Clamp (3 Ton Capacity)
  • Abrazadera de Tensión CC-3 – Capacidad 3 Toneladas
  • Grampo de Tração CC-3 – Capacidade de 3 Toneladas
  • Pince de Traction CC-3 – Capacité 3 Tonnes
  • Zugklemme CC-3 – 3 Tonnen Tragkraft
  • Zacisk CC-3 – Jednokierunkowy, Udźwig 3 Tony
  • مشبك سحب CC-3 – سعة 3 أطنان
  • แคลมป์ดึง CC-3 – รับน้ำหนักได้ 3 ตัน
  • CC-3 張引夾 – 單向操作,3 噸容量
  • CC-3 张引夹 – 单向操作,3 吨容量
  • Auto Tools/ Specialty

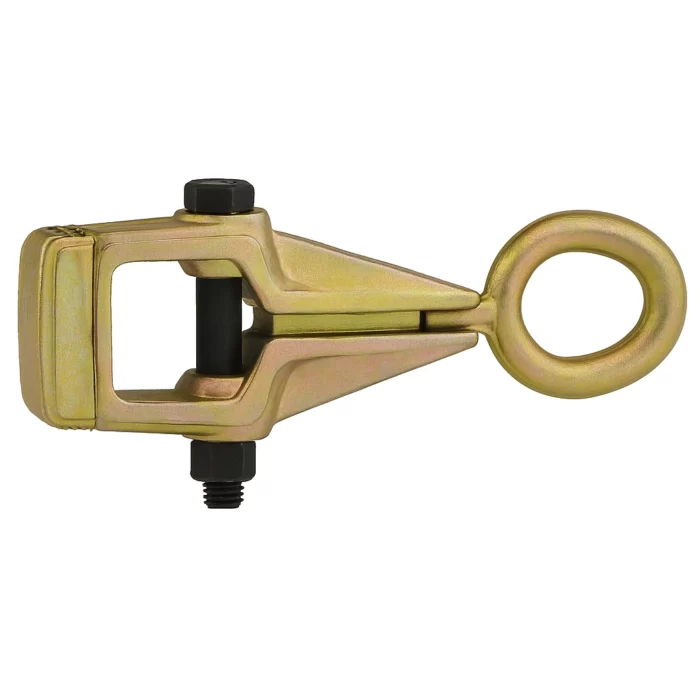

CC-3 is an industrial-grade Single-Direction Pull Clamp engineered for high-load automotive frame straightening and collision repair. Manufactured from High-Tensile Drop-Forged Steel, this clamp is designed to anchor damaged vehicle structures and pull them back into factory alignment. The CC-3 features a Self-Tightening mechanism with specialized serrated jaws that increase their grip as pulling force is applied. With a rated longitudinal capacity of 3 Tons (3,000 kg), its compact profile makes it the essential tool for accessing narrow spaces and tight flanges in professional body shops.

CLAMPOperation StyleSpecial UseCapacity (Cross)Capacity (Longitudinal)
C1-1Single-DirectionLong jaw for narrow space1 Ton
CC-3Single-DirectionNarrow space3 Tons
CB-25Two-DirectionCross & longitudinal pulling20 Tons5 Tons
CC-3NSingle-DirectionNarrow space, uneven jaw surface3 Tons
CC-23Two-DirectionNarrow space, uneven jaw surface2 Tons3 Tons
CD-5Single-DirectionStandard body pull5 Tons
CE-5Two-DirectionStandard body pull5 Tons
CF-5Single-DirectionPanel and sheet metal pull5 Tons
CF-35Two-DirectionThin sheet panel, long jaw3 Tons5 Tons

Feature

Key Features:

  • Pulling Type: Single-direction operation
  • Rated Capacity: 3 Tons (3,000 kg)
  • Jaw Type: Open clamp design with threaded screw for tightening
  • Application: Ideal for auto body repair, frame alignment, metal pulling
  • Material: Forged high-tensile steel for strength and durability
  • Anchor Loop: Solid ring for chain or winch connection
  • Corrosion-Resistant Finish: For long-term performance in workshop use
