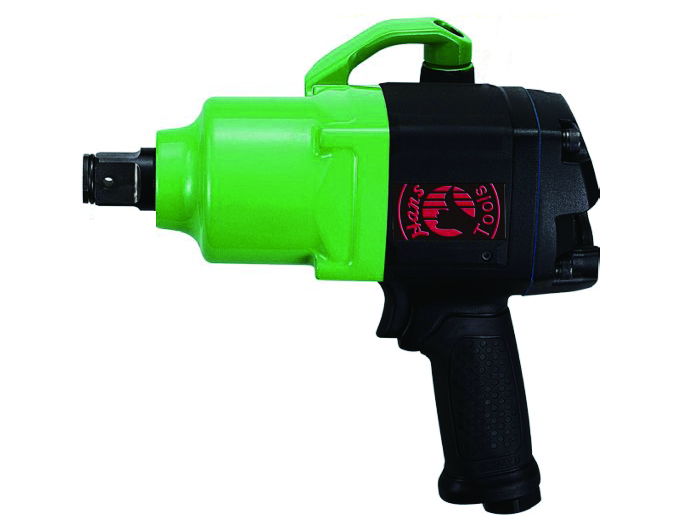

88117- Air Impact Wrench- 1″ Drive

Heavy-Duty 1″ Pneumatic System Optimization

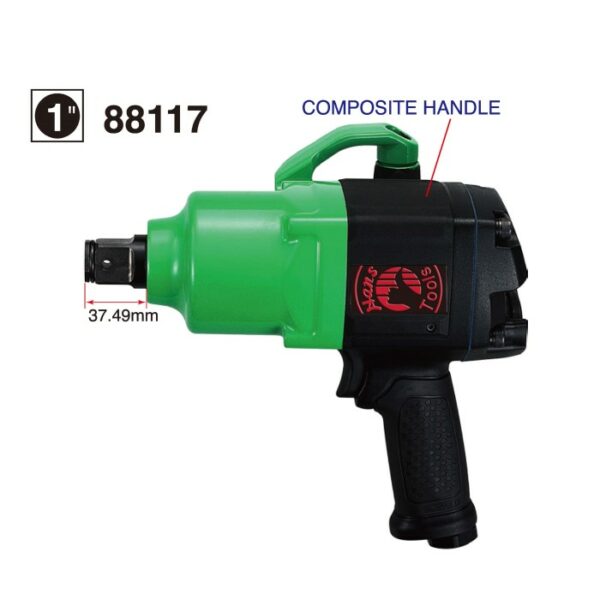

Q: What is the primary operational advantage of the 1.47″ short anvil layout on the Hans 88117?

A: Maximum energy transmission efficiency and compact clearance. Longer extended anvils tend to flex slightly under high twisting forces, absorbing some of the impact energy before it reaches the fastener. The 1.47″ (37.49 mm) short anvil of the 88117 provides a rigid column, ensuring that all 2,441 N·m of peak kinetic power transfers directly into the socket while allowing the tool to maneuver into tighter structural bays.

Q: What specific compressed air line infrastructure is required to drive this tool to full rated specification?

A: High-volume air delivery is essential. Operating at a standard 90 PSI (6.2 Bar), the high-speed air motor requires restriction-free air volume. Feeding this impact gun with a standard 1/4″ workshop fitting or a narrow 3/8″ inside-diameter line will cause a costly drop in pressure under load, starving the twin hammers and cutting your torque in half. For full power, always deploy a minimum 3/8″ or 1/2″ high-flow industrial air coupling connected to a 1/2″ inside-diameter air hose.

Q: Can standard mirror-polished chrome hand sockets be used for brief breakdown tasks on this tool?

A: Absolutely not, under any circumstances. Polished chrome hand sockets are forged from rigid Chrome Vanadium (Cr-V) steel, which lacks the elasticity to handle percussive impact force. Under the continuous 2,441 N·m percussive impacts of the 88117, a hand socket will shatter violently, risking severe injury. Always use thick-walled Hans 1″ Drive Matte-Black Chrome Molybdenum (Cr-Mo) Impact Sockets, which possess the ductile properties needed to absorb high pneumatic shock loads safely.

Q: What routine service loop is needed to protect the pneumatic internals over a multi-decade lifecycle?

A: Regular lubrication and moisture separation. Add 5 to 10 ml of high-performance air tool oil directly into the tool’s air inlet before every production shift, or run an active inline auto-oiler unit. The oil lubricates the internal rotor blades and coats the steel components against moisture corrosion. Additionally, regularly drain water from your workshop compressor tanks to keep wet air scale out of the motor cylinder walls.
