8601/8602/8605 PU Recoiled Hose | EU, Nitto & R 1/4 Fitting Types
8601/8602/8605 Series: Industrial Polyurethane Recoiled Hose (Universal Fitting Options)
- Tuyau spiralé en polyuréthane
- Teleskopowy przewód poliuretanowy
- Teleskoprohr aus Polyurethan
- Espirales en poliuretano
- قناة تلسكوبية من مادة البولي يوريثين
- ท่อโพลียูรีเทนแบบยืดหดได้
- PU伸縮風管
Polyurethane Recoiled Hose series is engineered to meet global pneumatic standards. Recognizing that different regions and industries require specific connection architectures, we offer this high-memory PU hose in three distinct versions: the 8601 (EU Standard), the 8602 (Nitto Standard), and the 8605 (Universal R 1/4 Threaded). Each model provides the same elite kink-resistance and “snap-back” memory while ensuring 100% compatibility with your existing air infrastructure.
EU TYPE
| ITEM NO. |  g |  | I.D MM | O.D MM | LENGTH MM | OPERATING TEMP(℃) | WORKING PRESSURE |
|---|---|---|---|---|---|---|---|
| 8601-605 | 426 | 50 | 6.5 | 10 | 5 | ||
| 8601-610 | 836 | 25 | 6.5 | 10 | 10 | ||
| 8601-615 | 1035 | 20 | 6.5 | 10 | 15 | -20~+60 | 120 PSI (0.8 MPa) |
| 8601-810 | 988 | 25 | 8 | 12 | 10 | ||
| 8601-815 | 1350 | 16 | 8 | 12 | 15 | ||
| 8601-1116 | 2666 | 6 | 11 | 16 | 15 |
NITTO TYPE
| ITEM NO. | g | | I.D MM | O.D MM | LENGTH MM | OPERATING TEMP(℃) | WORKING PRESSURE |
|---|---|---|---|---|---|---|---|
| 8602-605 | 426 | 50 | 6.5 | 10 | 5 | ||
| 8602-610 | 836 | 25 | 6.5 | 10 | 10 | ||
| 8602-615 | 1035 | 20 | 6.5 | 10 | 15 | -20~+60 | 120 PSI (0.8 MPa) |
| 8602-810 | 988 | 25 | 8 | 12 | 10 | ||
| 8602-815 | 1350 | 16 | 8 | 12 | 15 |
WITH R 1/4 FITTING
| ITEM NO. | g | | I.D MM | O.D MM | LENGTH MM | OPERATING TEMP(℃) | WORKING PRESSURE |
|---|---|---|---|---|---|---|---|
| 8605-605 | 426 | 50 | 6.5 | 10 | 5 | ||
| 8605-610 | 836 | 25 | 6.5 | 10 | 10 | ||
| 8605-615 | 1035 | 20 | 6.5 | 10 | 15 | -20~+60 | 120 PSI (0.8 MPa) |
| 8605-810 | 988 | 25 | 8 | 12 | 10 | ||
| 8605-815 | 1350 | 16 | 8 | 12 | 15 |
Feature

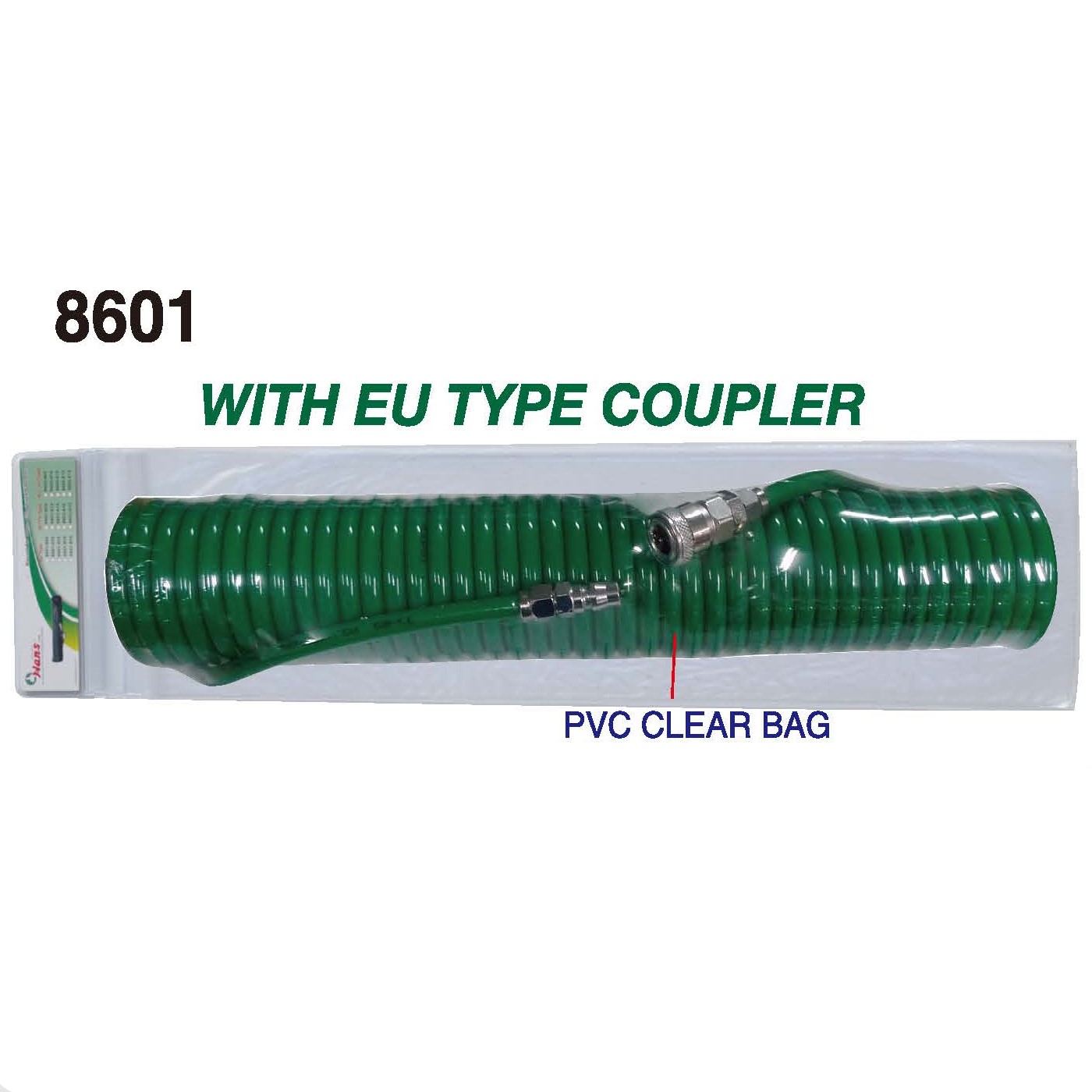

8601 Series: EU Type (High-Flow)
Designed for the European market and high-performance air tools. The EU Type (often 7.2mm – 7.4mm profile) is optimized for maximum CFM (Cubic Feet per Minute), reducing pressure drop and increasing the efficiency of impact wrenches and spray equipment.

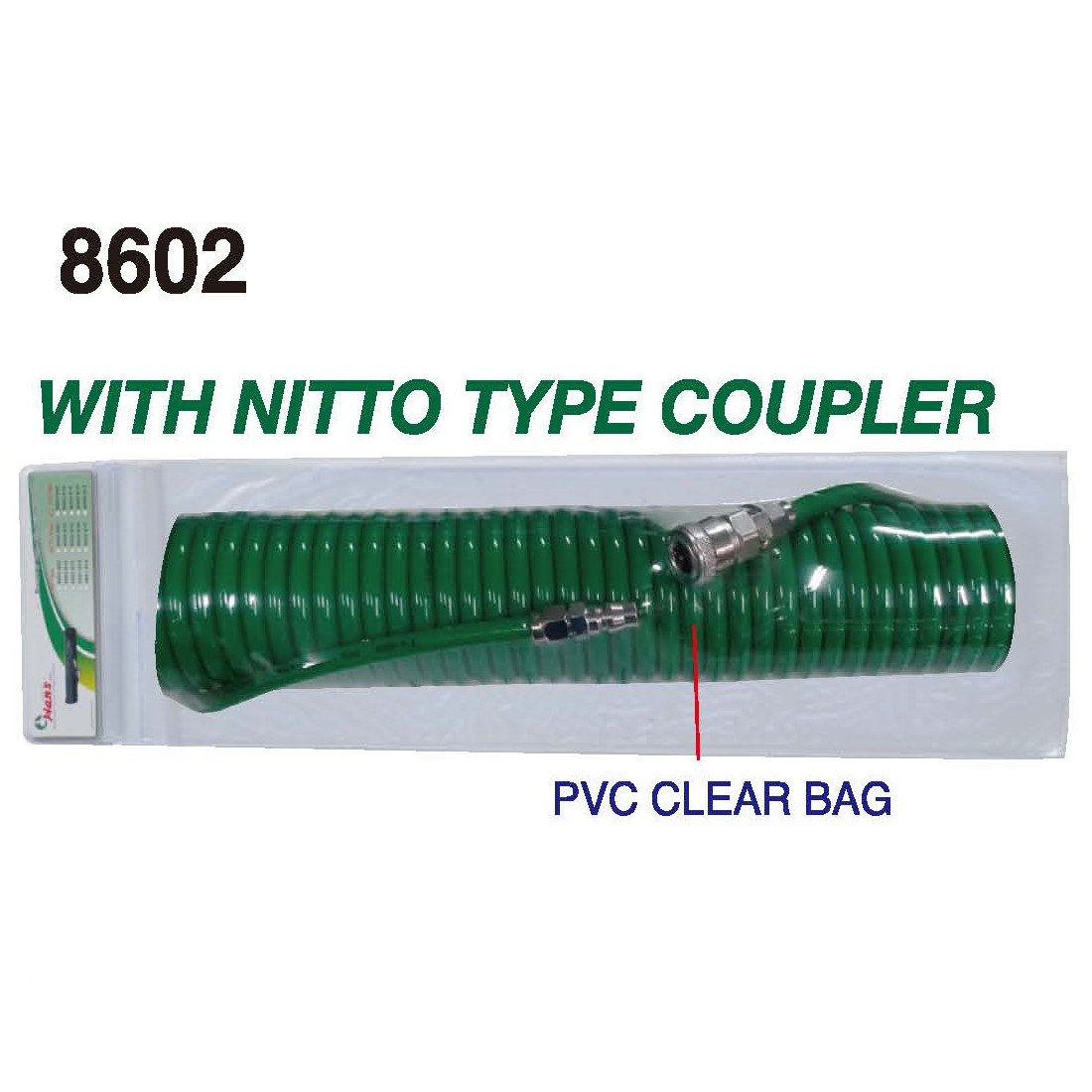

8602 Series: Nitto Type (Asian Standard)
The industrial standard for Asian and Australian markets. The Nitto Type (High-Cupla style) features a slim-line profile known for its durable “one-touch” connection, making it the primary choice for electronics assembly and automotive manufacturing.

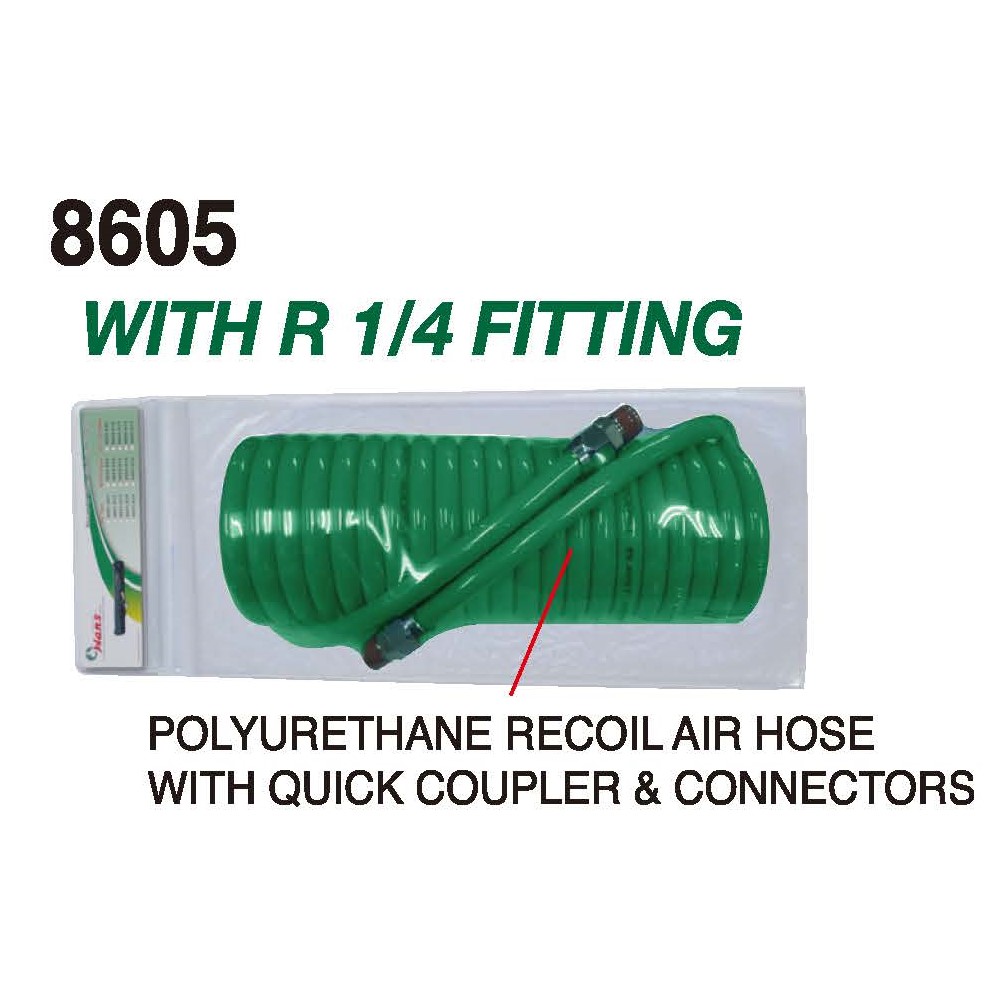

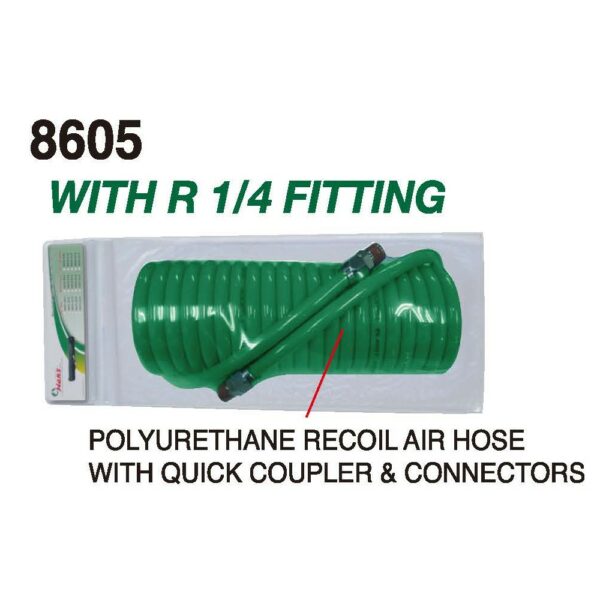

8605 Series: With R 1/4 Fitting (Threaded)
For custom configurations or permanent installations. The 8605 comes equipped with a standard R 1/4″ (BSPT) threaded fitting and reinforced spring guards, allowing you to attach your own specialized quick-couplers or hard-plumb the hose directly into a manifold.
Why Choose Hans Tools Polyurethane (PU)?
Industrial Memory Retention: Our PU formula is “heat-set,” meaning it will return to its original tight coil even after being stretched to its full 15-meter capacity.
Operating Range: Engineered to remain flexible from -20°C to +60°C, preventing the brittleness and cracking common in nylon hoses.
Safe Working Pressure: Rated at 120 PSI (0.8 MPa), making it compatible with all standard industrial air compressors.
