82901-05/056-Air Die Grinder-Straight Pattern
82901-05- Air Die Grinder Straight
- 82901-05 Air Die Grinder – Straight Pattern
- 82901-05 Meuleuse pneumatique – modèle droit
- 82901-05 Szlifierka pneumatyczna – prosta
- 82901-05 Pneumatischer Die Grinder – gerade Ausführung
- 82901-05 Amoladora neumática de troqueles – versión recta
- 82901-05 جلاخة قوالب هوائية – شكل مستقيم
- 82901-05 เครื่องเจียรไดอะแบบลม – ทรงตรง
- 82901-05 氣動帶柄內徑研磨機（直型）
- 82901-05/ 82901-056
- Impact Wrench- Pneumatic Power Instruction

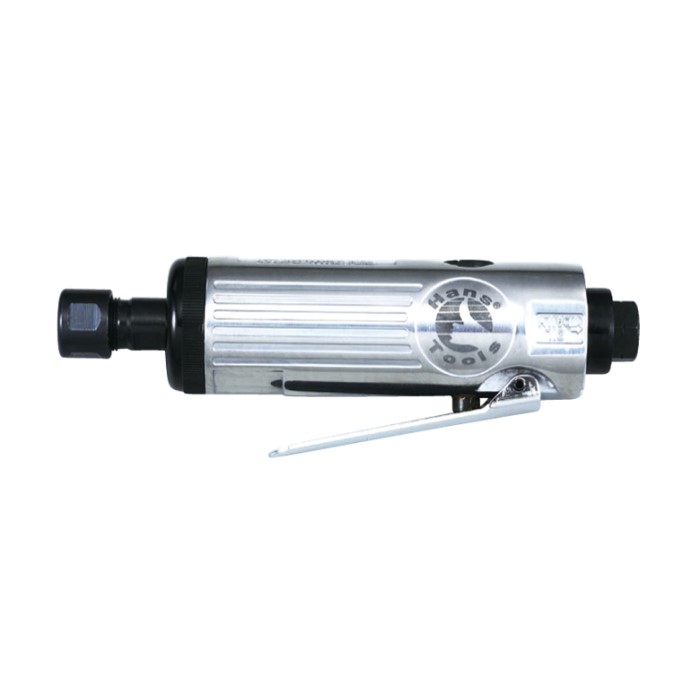

82901-05 Air Die Grinder is a straight-pattern pneumatic grinder designed for precision grinding, deburring and polishing of metal parts. With a 0.5 HP motor and 22,000 RPM free speed, it delivers fast material removal in a compact body that fits easily into tight spaces such as engine bays, brackets and castings.A straight air die grinder is ideal for detail work and finishing, while larger angle grinders are mainly used for heavy cutting and rough grinding.
| ITEM NO. | COLLECT SIZE | MOTOR H.P. | EXHAUST | FREE SPEED R.P.M. | AVG.DLR CONSUMPTION CFM |
|---|---|---|---|---|---|
| 82901-05 | ¼" | 0.5 | REAR | 22000 | 12.5 |
| 82901-056 | 6mm | 0.5 | REAR | 22000 | 12.5 |
| 82901-05N | ¼" | 0.5 | REAR | 22000 | 12.5 |
| 82901-056N | 6mm | 0.5 | REAR | 22000 | 12.5 |
| ITEM NO. | AIR PRESSURE BAR (PSI) | AIR INLET INCH | AIR HOSE ID | OVERALL LENGTH inch/mm |  KGS |  pcs |
|---|---|---|---|---|---|---|
| 82901-05 | 90 PSI 6.2 BAR | ¼ | ¼ | 7"/ 175 | 0.7 | 20 |
| 82901-056 | 90 PSI 6.2 BAR | ¼ | ¼ | 7"/ 175 | 0.7 | 20 |
| 82901-05N | 90 PSI 6.2 BAR | ¼ | ¼ | 7"/ 175 | 0.7 | 20 |
| 82901-056N | 90 PSI 6.2 BAR | ¼ | ¼ | 7"/ 175 | 0.7 | 20 |
Feature
- Straight-pattern air die grinder for precision grinding and deburring in confined areas
- 0.5 HP motor with 22,000 RPM free speed for efficient light grinding and polishing
- Rear exhaust directs air away from the work area for better comfort

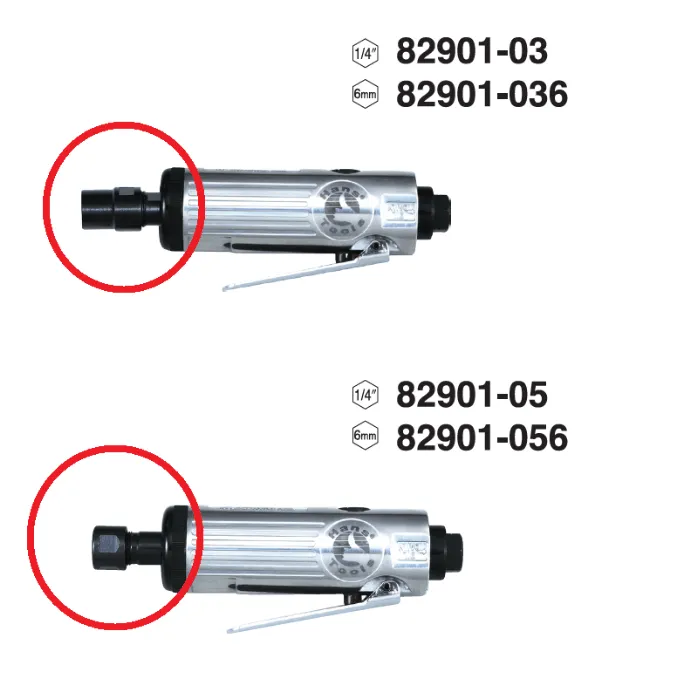

- ¼” collet size on 82901-05; matching 6 mm version available as 82901-056
- Average air consumption: about 12.5 CFM for stable operation with workshop compressors
- Operating pressure: 6.2 bar / 90 PSI for optimum performance
- Overall length: 7″ (175 mm), net weight 0.7 kg – compact and easy to handle over long periods
- Air inlet: 1/4″, air hose ID: 1/4″, matching standard workshop air lines
- Suitable for grinding, edge deburring, weld cleaning and surface preparation on metal parts
