Micro-Scale Impact E-STAR Optimization

Q: Why select a dedicated 1/4″ drive Impact E-STAR socket rather than using a 1/4″ hex bit insert tool?

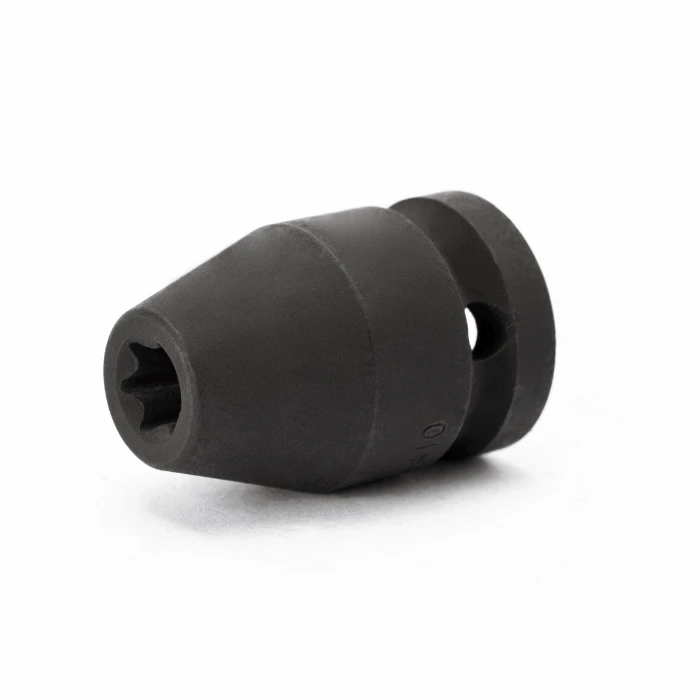

A: Maximum concentricity and shear resistance. Standard 1/4″ hex shank bit inserts are locked into multi-piece adapter blocks that introduce side-play, wobble, and energy loss. Under heavy impact stress, the narrow neck of a hex bit insert can easily snap. The Hans 82410E solid-body monoblock socket seats directly onto the square drive anvil, ensuring zero runout, direct torque transfer, and far greater resistance to shear failure.

Q: Can these matte-black Cr-Mo sockets be paired safely with high-RPM 1/4″ cordless impact drivers or mini air-powered ratchets?

A: Yes, absolutely. That is exactly what they are engineered to do. Unlike standard chrome-plated hand tools, the underlying high-impact Chrome Molybdenum chemistry is uniquely calibrated to handle the sharp torque spikes delivered by high-RPM 1/4″ power anvils without stretching out or splitting the thin socket mouth walls.

Q: Why do sizes E4 to E11 maintain a uniform 13mm base diameter (D2)?

A: Standardizing the base collar at 13mm ensures that small-profile sockets maintain a safe, structurally stable connection with standard 1/4″ square drive retention mechanisms. This design provides plenty of wall thickness around the drive square while keeping the outer tool profile narrow enough to glide cleanly into tight machine cavities.

Q: What is the optimal care procedure for preserving these small-scale impact sockets over long-term commercial duty cycles?

A: Keep the fine internal star-splined valleys clear of packed carbon, road grime, or metallic grit by giving them a quick spray with a standard parts cleaner or wiping them down with a fresh shop towel. Because the manganese phosphate surface treatment is slightly porous to help retain protective oil, a light mist of thin machine oil after a heavy shift will maintain a complete barrier against moisture and environmental oxidation.
