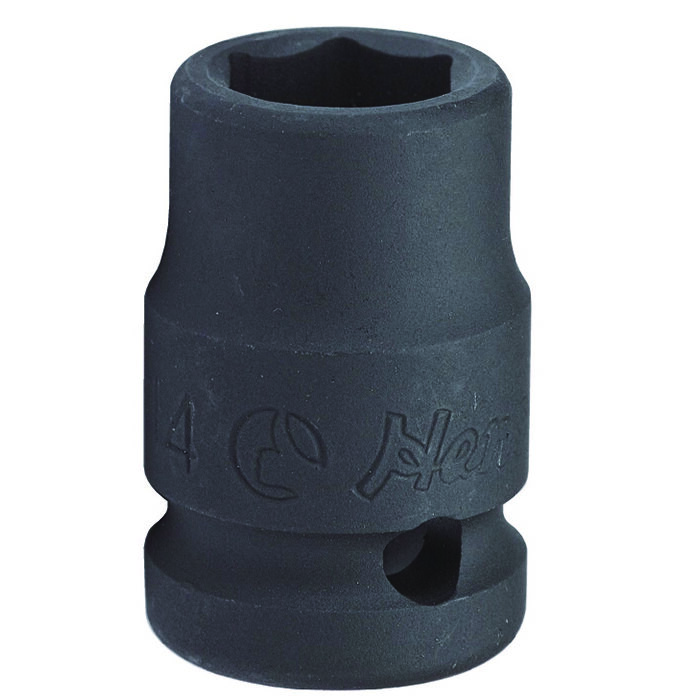

814400M/A- Impact Socket- 1-1/2" Drive

SKU 814400M/A Categories Socket / Ratchet / Combo (Socket Wrench Set), Impact Socket, Impact Socket-1-1/2"DR. Tags 1-1/2"Drive, Impact Socket

814400M (mm)	814400A (inch)	D1 (mm)	D2 (mm)	L (mm)		(PCS)
36		62	86	80		1
41	1-5/8	68	86	80	2350	1
42		70	86	80	2330	1
43	1-11/16	71	86	80	2300	1
	1-3/4	72	86	80	2280	1
46	1-13/16	74	86	84	2360	1
	1-7/8	77	86	84	2450	1
	1-15/16	78	86	84	2440	1
50		79	86	84		1
	2"	80	86	84	2420	1
52	2-1/16	82	86	84	2360	1
54	2-1/8	84	86	84	2340	1
55	2-3/16	85	86	90	2450	1
	2-1/4	87	86	90	2460	1
58	2-5/16	88	86	90	2510	1
60	2-3/8	91	86	90	2640	1
	2-7/16	93	86	95	2860	1
	2-1/2	96	86	95	3000	1
65	2-9/16	97	86	95	3050	1
	2-5/8	100	86	100	3300	1
	2-11/16	101	86	100	3330	1
70	2-3/4	103	86	100	3350	1
	2-13/16	105	86	105	3610	1
	2-7/8	106	86	105	3670	1
75	2-15/16	108	86	105	3680	1
	3"	108	86	105	3700	1
80	3-1/8	116	86	110	4240	1
	3-1/4	118	86	110	4370	1
85		122	86	110	4550	1
	3-3/8	123	86	110	4570	1
90	3-1/2	128	86	112	4840	1
	3-5/8	132	86	112	5230	1
95	3-3/4	135	127	112	5590	1
100	3-7/8	140	127	115	6030	1
	4"	144	127	120	6440	1
105	4-1/8	146	127	120	6460	1
110	4-1/4	153	127	124	7680	1
115	4-1/2	160	127	128	8150	1
	4-5/8	164	127	132	8600	1
120		166	127	132		1
	4-3/4	168	127	132	8660	1
125	4-7/8	173	127	136	9660	1
	5"	176	127	140	10250	1
130		180	127	140	10700	1
	5-1/4	183	127	145		1
135		186	127	145	11920	1
140		192	127	150	12300	1
145		198	127	155	12710	1
150		204	127	160	13620	1
	6"	208	127	165	14510	1
	6-1/2	225	127	175	17500	1

An-Lock Drive® (Superb Torque) was founded with one mission in mind: to help their customers get the job done correctly, safely, and efficiently. With a foundation of quality and safety, An-Lock offer tools that are stronger and faster than other standard alternatives.
Made by Chromium-molybdenum alloy steel (chrome. moly)
is an alloy used for high pressure and temperature use. It is used in oil and gas, energy, construction and the automotive industries because of its corrosion resistance and high-temperature and tensile strength.
