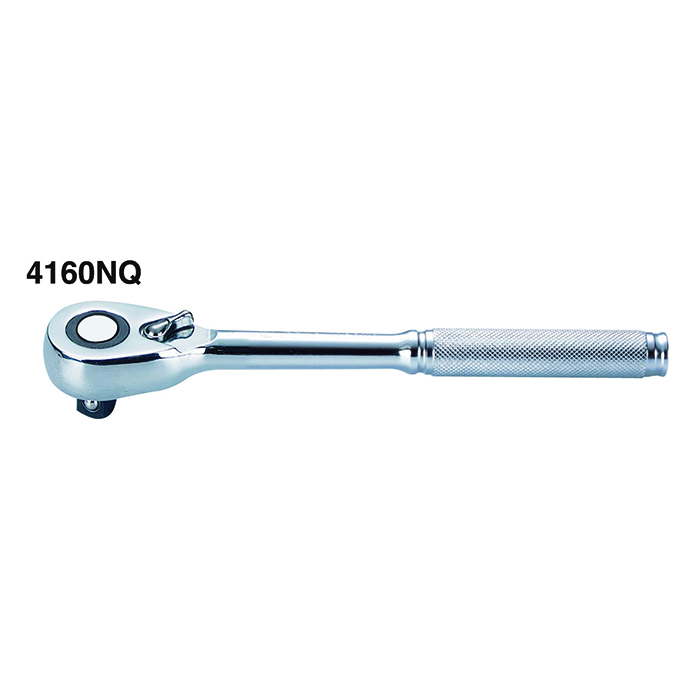

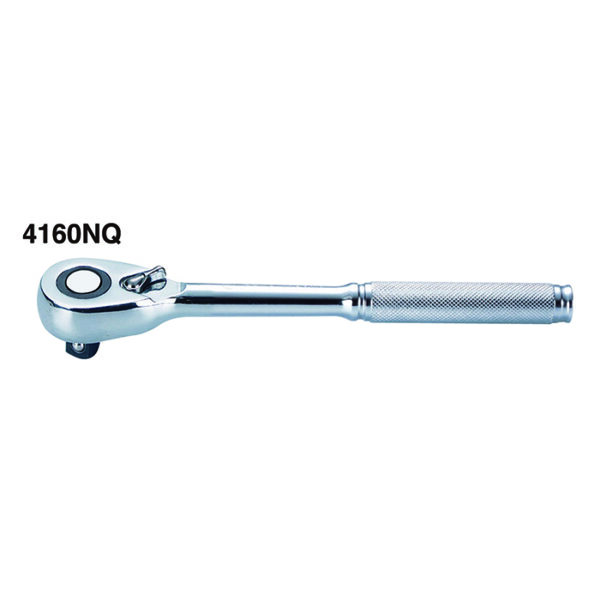

4160NQ-Quick Release Ratchet Handle (48 Teeth)-½” Drive

FAQ: Heavy-Duty 1/2″ Drive Architecture Optimization

Q: What is the primary operational advantage of selecting a 48-tooth ratchet over a 90-tooth option for 1/2″ drive applications?

A: Superior shear resistance under high manual leverage. High-load fasteners—such as wheel hub bolts, steering gears, and structural engine mounts—frequently require high breakaway forces. The taller, thicker tooth dimensions of the Hans 4160NQ 48-tooth gear ring lock deeper into the internal pawl, distributing the high torque across a larger steel mass to prevent tooth flattening or internal mechanism failure.

Q: Why is the all-steel NQ ribbed handle preferred in industrial fleet environments over ergonomic rubber grips?

A: Absolute environmental durability and fast cleanability. Soft rubber or composite handles provide great cushion, but they naturally absorb workshop fluids, causing them to slip, peel off the metal shaft, or dissolve when exposed to harsh chemicals. The all-steel ribbed handle of the 4160NQ can be sprayed down directly with brake parts cleaner and wiped completely clean at the end of a shift, maintaining its crisp tactile grip indefinitely.

Q: Can this quick-release hand ratchet handle be paired with an extension pipe to bust loose heavily rusted fasteners?

A: No. Using a cheater bar or pipe extension on any manual hand ratchet introduces excessive load vectors that can deform the internal pawl mechanism or bend the drive anvil. If a fastener resists standard manual force, switch out the ratchet for a dedicated, non-geared Hans 4700N Series 1/2″ Drive Solid Flex Breaker Bar to break the initial thread bond safely.

Q: What is the recommended care routine to preserve the 4160NQ over a multi-decade lifecycle?

A: Clean out the head assembly periodically by removing the faceplate retaining plate to clear away caked workshop dust and road grime. Wash the internal gear tracks with a solvent cleaner, dry completely, and pack the assembly lightly with high-quality lithium-based grease. This maintenance loop keeps the 7.5° swing arc clicking smoothly and ensures maximum pawl engagement for decades.
